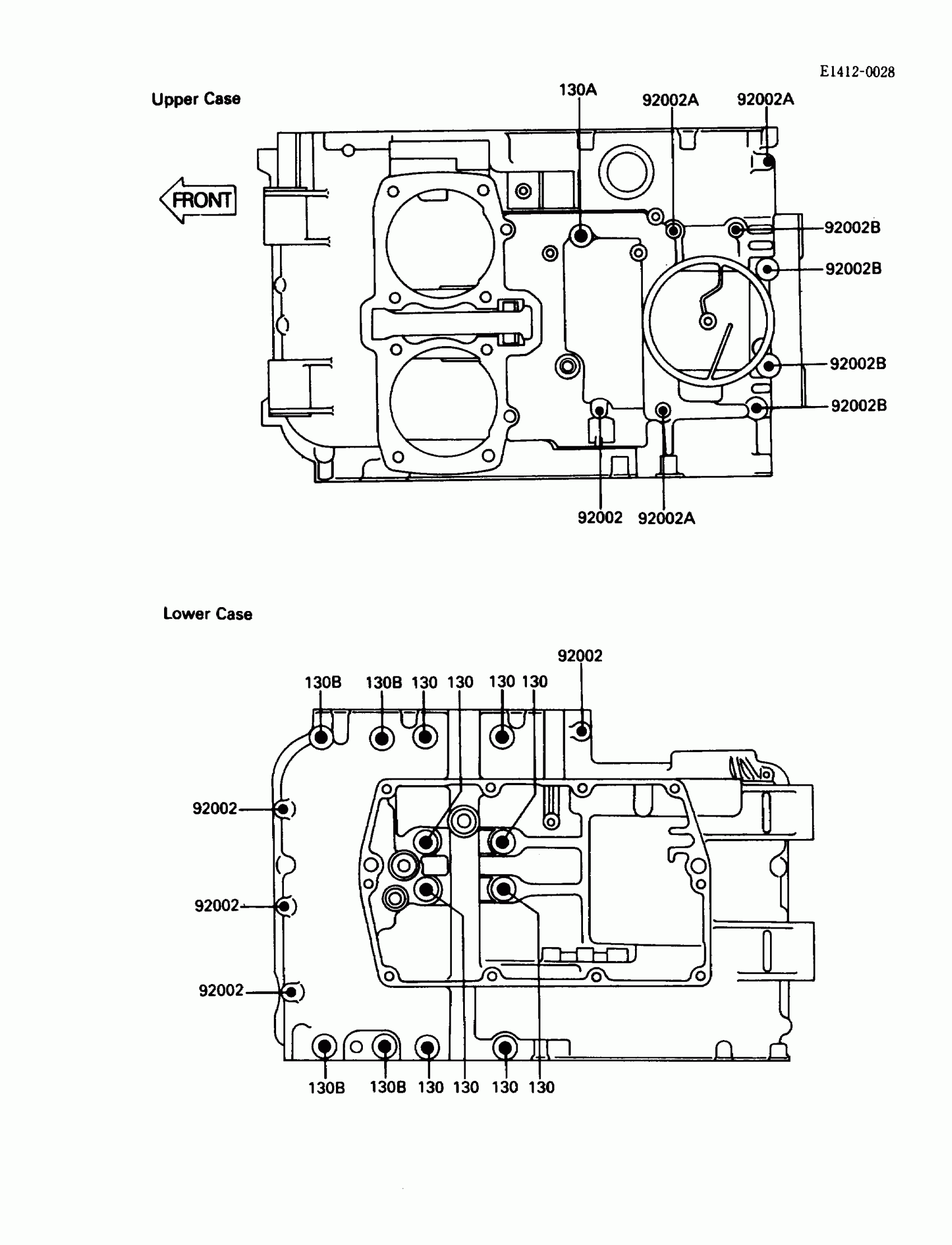

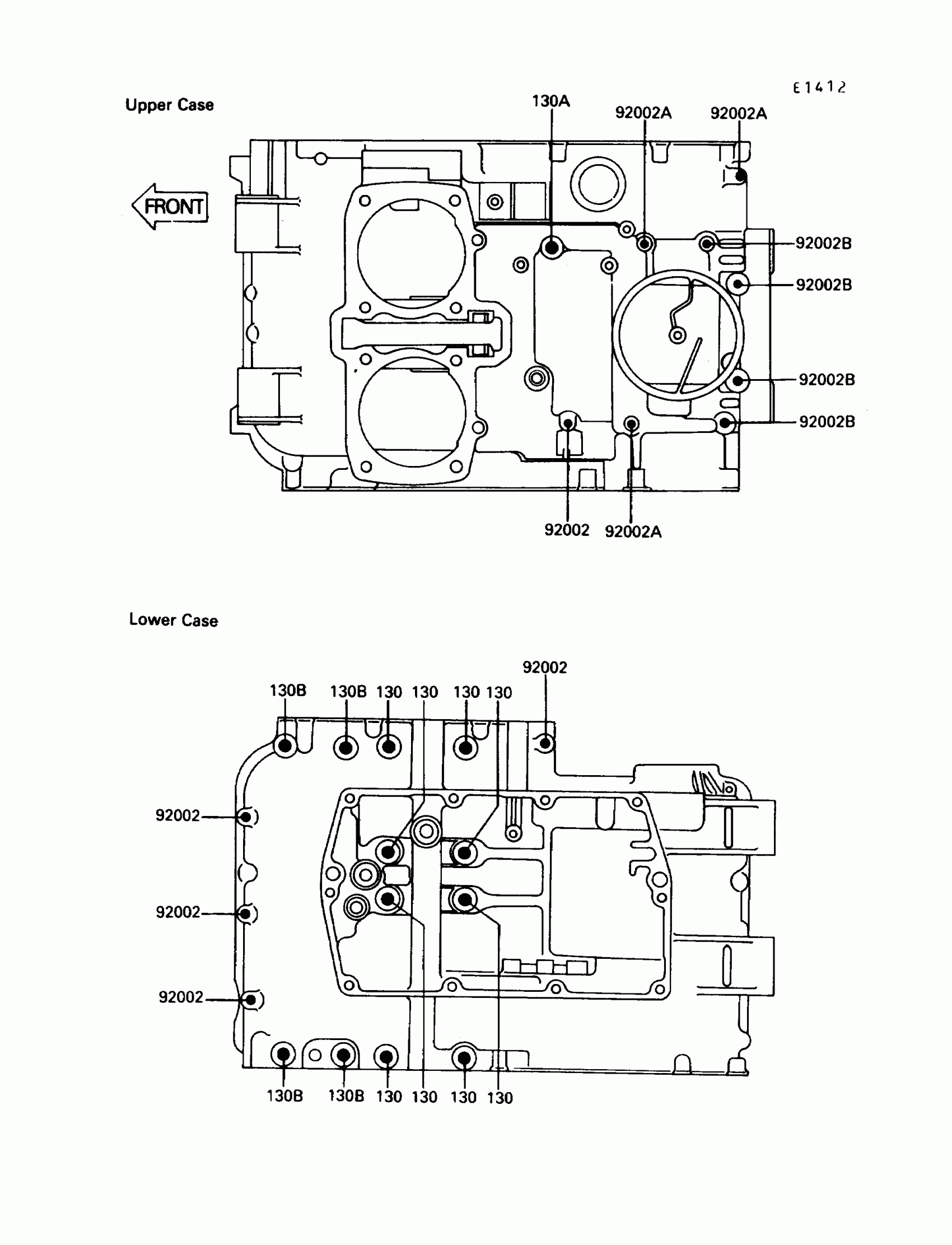

Kawasaki 454 LTD Crankcase Bolt Pattern Diagram

#

Description

Price

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

$4.66

92002A

BOLT,FLANGED,6X60

92002-1567

Unavailable

92002B

BOLT,FLANGED,6X80

92002-1568

Unavailable

130

BOLT-FLANGED

130Z08100

Unavailable

130A

BOLT-FLANGED

130Z0855

Unavailable

130B

BOLT-FLANGED

130Z0875

Unavailable
