1989 Kawasaki 454 LTD Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

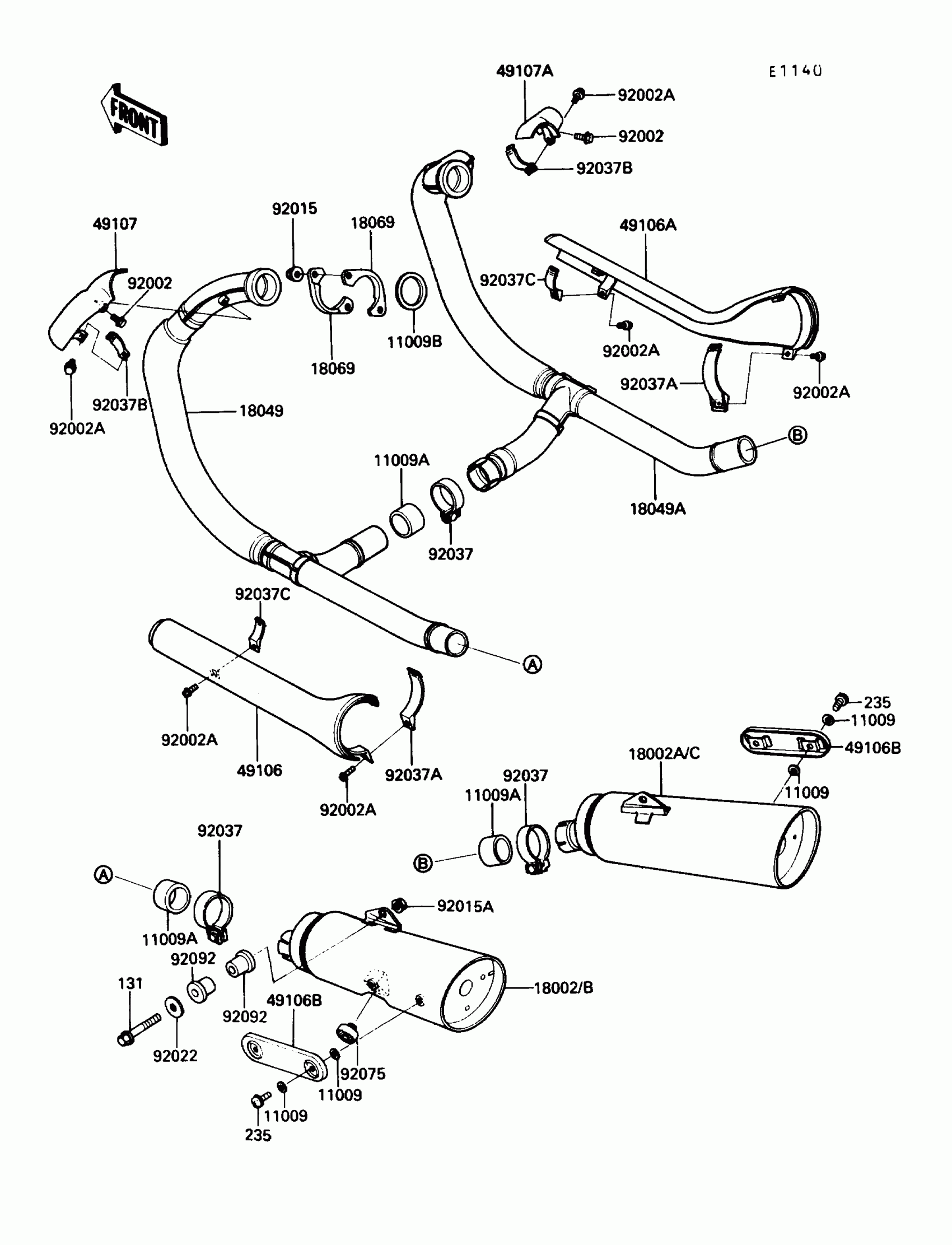

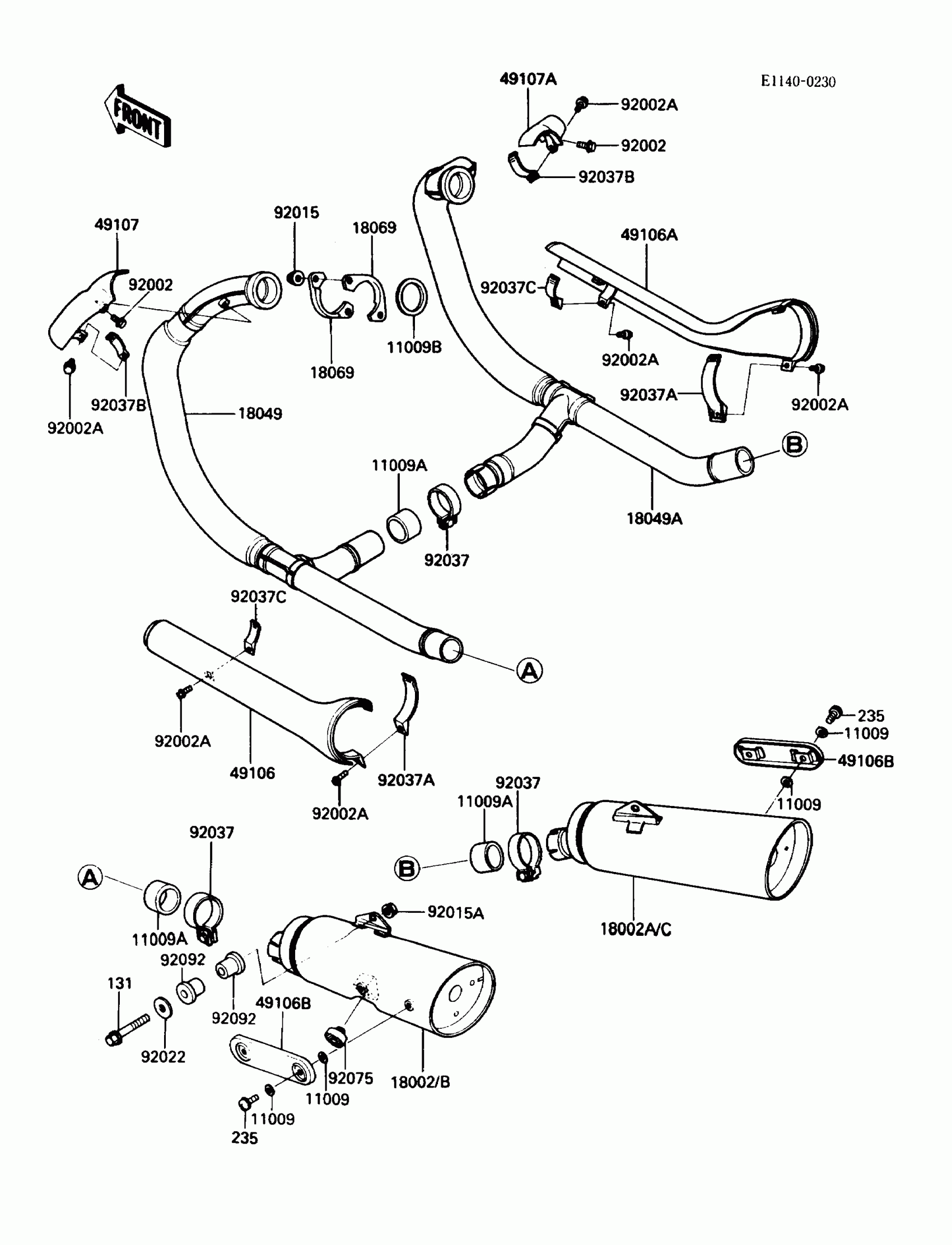

1989 Kawasaki 454 LTD Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,6.2X11.5X1.5

11009-1451

1
Out of stock

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1634

1
Out of stock

11009B

1

$6.49

In stock

18002

1

$525.04

In stock

18002A

BODY-COMP-MUFFLER,RH

18002-1570

1
Out of stock

18002B

BODY-COMP-MUFFLER,LH

18002-1594

1
Out of stock

18002C

BODY-COMP-MUFFLER,RH

18002-1595

1
Out of stock

18049

PIPE-EXHAUST,LH

18049-1318

1

$328.33

In stock

18049A

PIPE-EXHAUST,RH

18049-1319

1

$328.33

In stock

18069

HOLDER-EXHAUST PIPE

18069-1064

1

$34.29

In stock

49106

COVER-MUFFLER,LH

49106-1055

1
Out of stock

49106A

COVER-MUFFLER,RH

49106-1056

1
Out of stock

49106B

COVER-MUFFLER

49106-1061

1
Out of stock

49107

COVER-EXHAUST PIPE,LH

49107-1062

1
Out of stock

49107A

COVER-EXHAUST PIPE,RH

49107-1063

1
Out of stock

92002

BOLT,6X8

92002-1604

1
Out of stock

92002A

BOLT,6X20

92002-1607

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92015A

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92022

WASHER,PLAIN

92022-328

1
Out of stock

92037

CLAMP,42MM

92037-1349

1

$10.26

In stock

92037A

CLAMP,MUFFLER COVER

92037-1615

1

$14.56

In stock

92037B

1

$14.22

In stock

92037C

1

$12.39

In stock

92075

DAMPER,STAND

92075-1788

1
Out of stock

92092

1

$12.79

In stock

131

BOLT-FLANGED

131G1060

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0608

1
Out of stock
