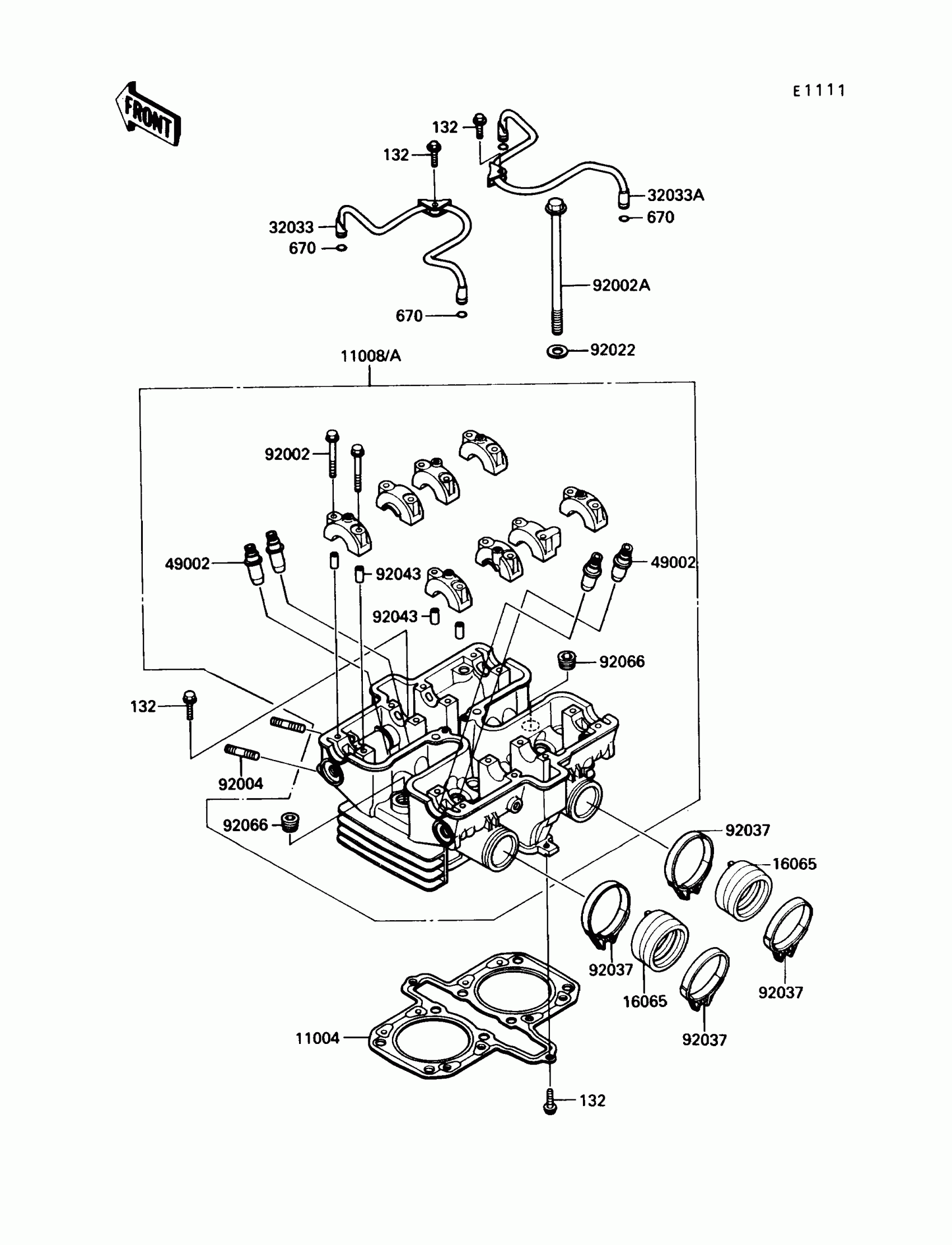

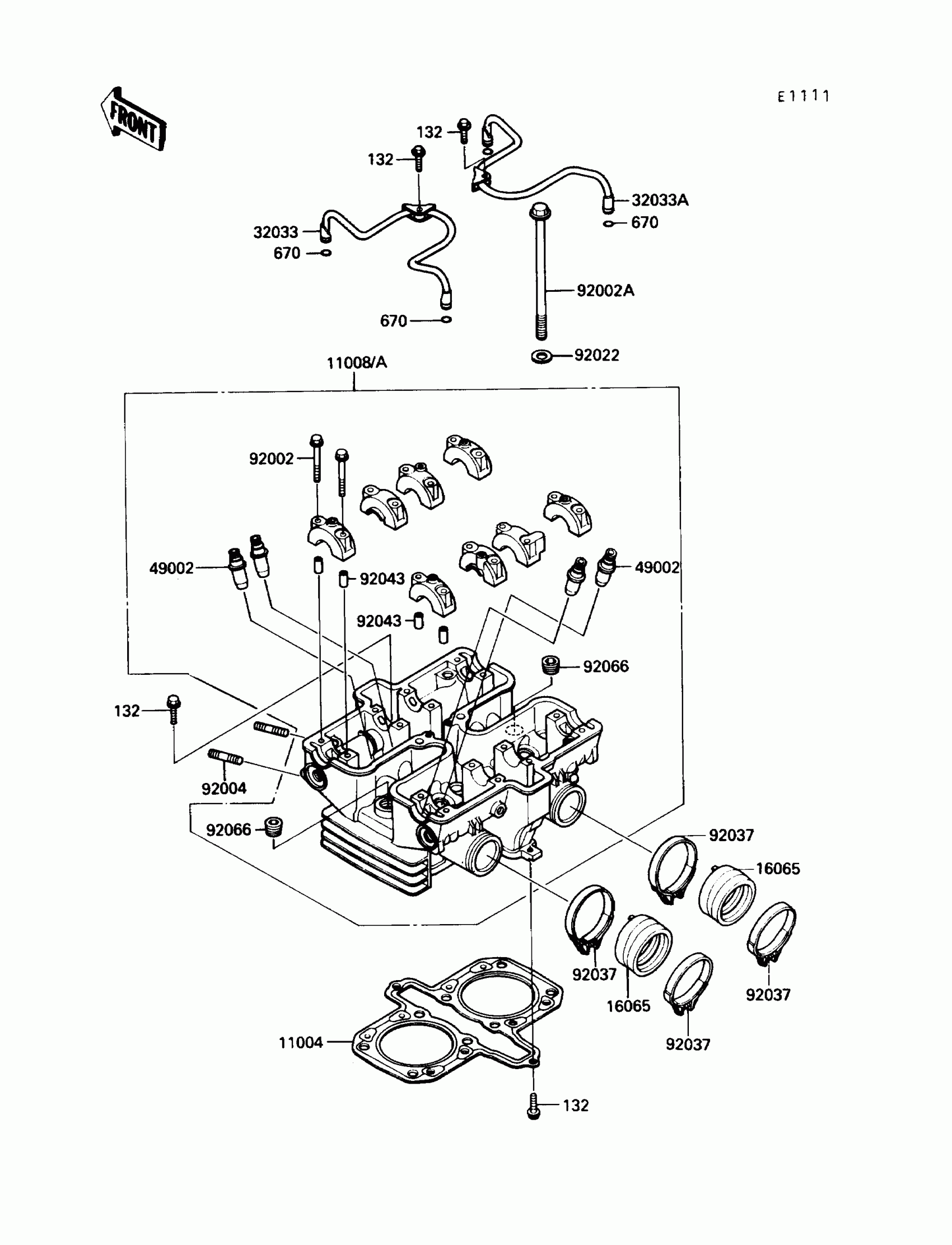

Find the part on the Cylinder Head diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1159

1

$51.22

In stock

11008

HEAD-COMP-CYLINDER

11008-1145

1
Out of stock

11008A

HEAD-COMP-CYLINDER

11008-1154

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1128

1

$22.80

In stock

32033

PIPE,OIL,LH

32033-1527

1

$66.82

In stock

32033A

PIPE,OIL,RH

32033-1528

1

$66.82

In stock

49002

GUIDE-VALVE

49002-1052

1

$38.92

In stock

92002

BOLT,6X46

92001-1872

1

$3.43

In stock

92002A

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X25

92004-1008

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92037

CLAMP

92037-1523

1

$9.78

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92066

PLUG,PT1/2X12.5

92066-1253

1

$8.75

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

670

O RING,7MM

670D1507

1

$1.44

In stock
