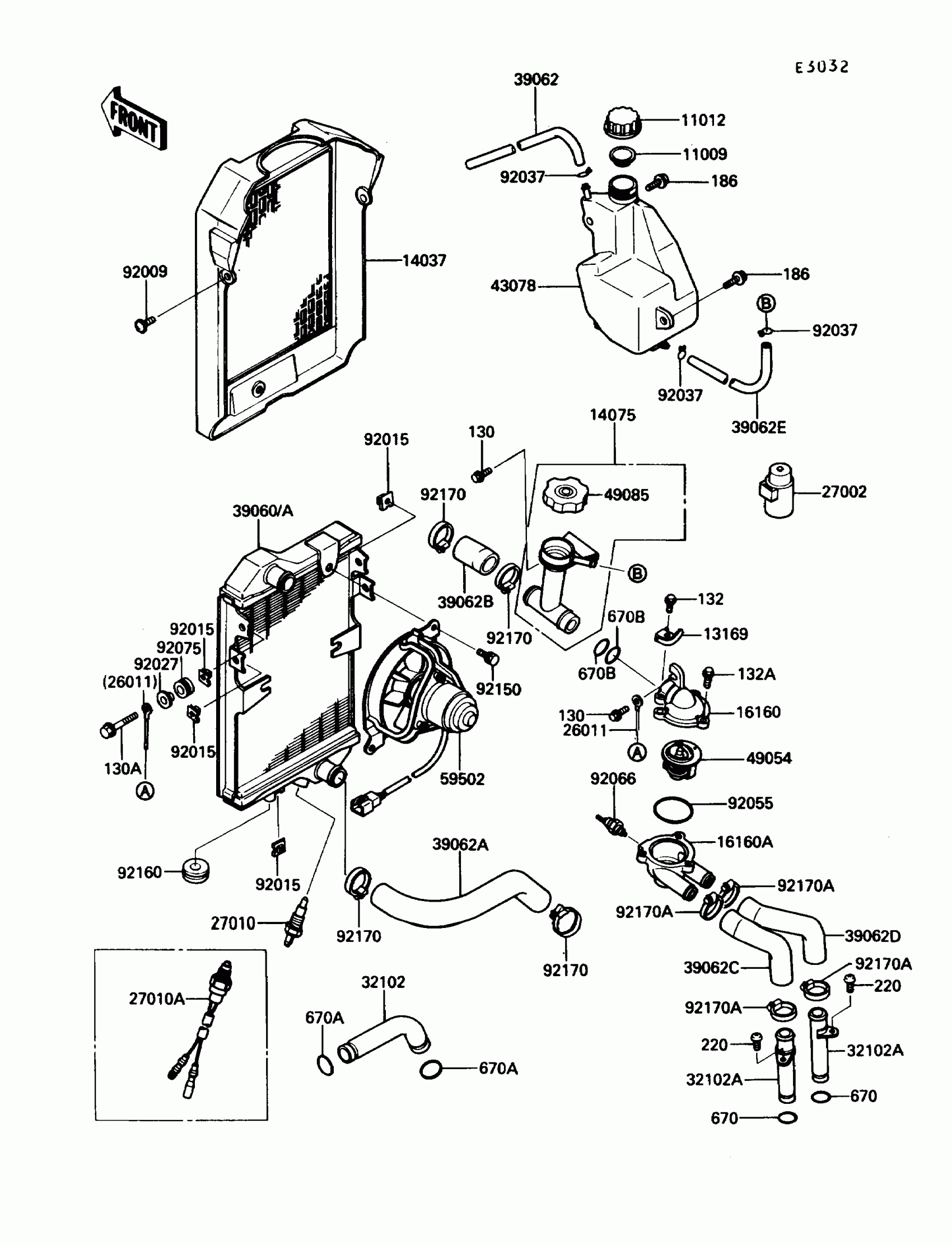

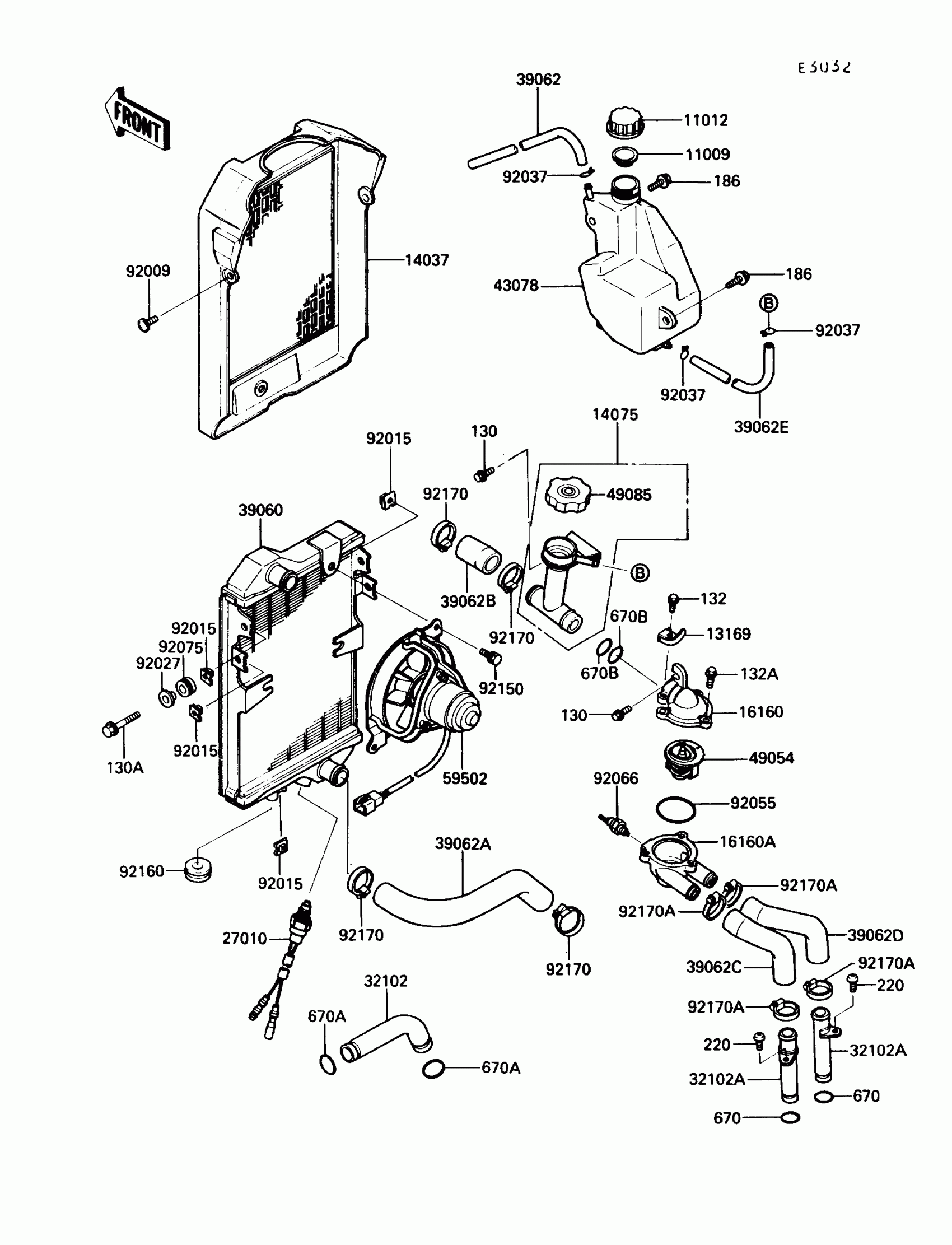

Find the part on the Radiator diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

13169

PLATE

13169-1901

1
Out of stock

14037

SCREEN,RADIATOR

14037-1068

1

$110.98

In stock

14075

CAP-ASSY,RADIATOR

14075-1056

1
Out of stock

16160

BODY,THERMOSTAT,UPP

16160-1085

1
Out of stock

16160A

BODY,THERMOSTAT,LWR

16160-1138

1

$36.93

In stock

27010A

SWITCH,FAN

27010-1260

1

$136.95

In stock

32102

PIPE

32102-1014

1

$44.48

In stock

32102A

PIPE

32102-1473

1

$34.56

In stock

39060A

RADIATOR

39060-1089

1

$740.98

In stock

39062

HOSE-COOLING,5.5X10.5X970

39062-1060

1
Out of stock

39062A

HOSE-COOLING

39062-1106

1
Out of stock

39062B

HOSE-COOLING

39062-1107

1

$12.86

In stock

39062C

HOSE-COOLING

39062-1108

1
Out of stock

39062D

HOSE-COOLING

39062-1109

1

$25.44

In stock

39062E

1

$38.54

In stock

43078

RESERVOIR

43078-1060

1
Out of stock

49054

THERMOSTAT

49054-1055

1

$49.29

In stock

49085

CAP-ASSY-PRESSURE

49085-1057

1

$48.74

In stock

59502

FAN-ASSY

59502-1054

1

$598.86

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR

92027-1767

1

$4.37

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,44.7X2.4

92055-1279

1

$5.84

In stock

92066

PLUG,SENSOR,WATER

92066-1118

1

$70.35

In stock

92075

DAMPER

92075-1680

1

$5.74

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock

92170

CLAMP,COOLING HOSE

92037-1989

1

$13.29

In stock

92170A

CLAMP,HOSE,26MM

92170-1077

1

$6.64

In stock

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

186

BOLT-UPSET-WP

186J0618

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

670

O RING,14MM

670B2014

1

$1.08

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

670B

O RING,22MM

670B2022

1

$3.72

In stock
