2005 Kawasaki ZZR600 (Canada Only) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

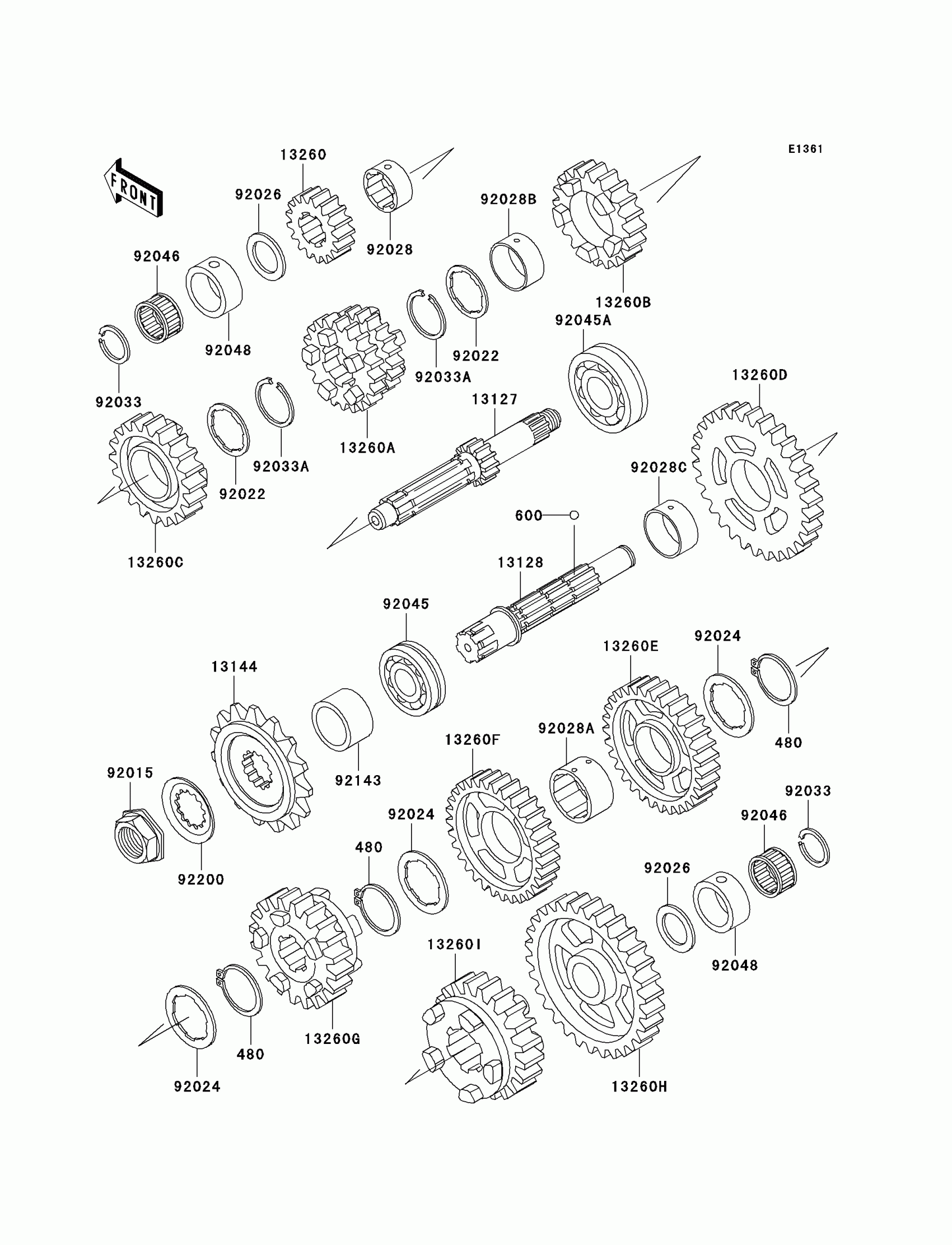

2005 Kawasaki ZZR600 (Canada Only) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP

480J2900

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1230

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1194

1
Out of stock

13144

SPROCKET-OUTPUT,16T

13144-1212

1
Out of stock

13260

GEAR,INPUT 2ND,16T

13260-1334

1
Out of stock

13260A

GEAR,INPUT 3RD&4TH,21T&21T

13260-1413

1
Out of stock

13260B

GEAR,INPUT 5TH,23T

13260-1414

1
Out of stock

13260C

GEAR,INPUT TOP,24T

13260-1415

1
Out of stock

13260D

GEAR,OUTPUT 2ND,34T

13260-1417

1
Out of stock

13260E

GEAR,OUTPUT 3RD,35T

13260-1418

1
Out of stock

13260F

GEAR,OUTPUT 4TH,29T

13260-1419

1
Out of stock

13260G

GEAR,OUTPUT TOP,26T

13260-1421

1
Out of stock

13260H

GEAR,OUTPUT LOW,38T

13260-1463

1
Out of stock

13260I

GEAR,OUTPUT 5TH,28T

13260-1480

1
Out of stock

92015

NUT,20MM

92015-1963

1
Out of stock

92022

WASHER,TOOTHED,28.3X33.5X1

92022-1139

1
Out of stock

92024

WASHER,TOOTHED,30.3X40X1.5

92024-043

1
Out of stock

92026

SPACER,22X35.5X2.1

92026-1224

1
Out of stock

92028

BUSHING,INPUT TOP GEAR

92028-1255

1
Out of stock

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

1
Out of stock

92028B

BUSHING,INPUT GEAR

92028-1449

1
Out of stock

92028C

BUSHING,OUTPUT 2ND

92028-1450

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92045

BEARING-BALL,83993SH2-CS

92045-035

1
Out of stock

92045A

BEARING-BALL,6305N2SH2

92045-1224

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92048

RACE,NEEDLE BEARING

92048-1066

1
Out of stock

92143

COLLAR,25X32X20

92143-1617

1
Out of stock

92200

WASHER

92200-1065

1
Out of stock
