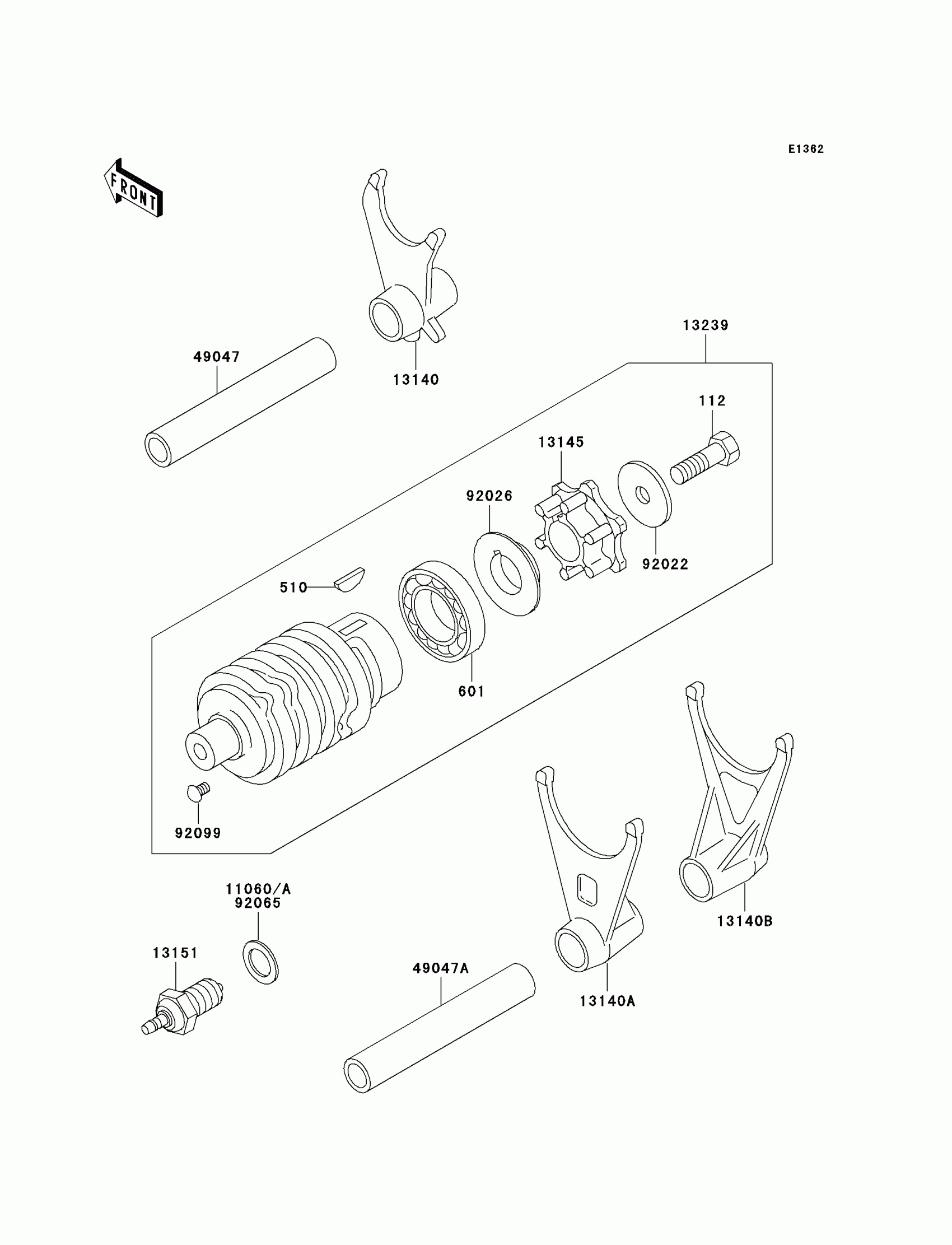

Kawasaki ZZR600 (Canada Only) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

112

BOLT-UPSET

112P0620

Unavailable

510

KEY-WOODRUFF

510A3200

$1.87

601

BEARING-BALL

601A6005

$10.48

11060

GASKET,10.5X16X1.5

11060-1676

Unavailable

11060A

GASKET,10.5X16X1.2

11060-1684

Unavailable

13140

FORK-SHIFT,INPUT

13140-1153

$112.11

13140A

FORK-SHIFT,OUTPUT

13140-1154

Unavailable

13140B

FORK-SHIFT,OUTPUT

13140-1191

$97.98

13145

CAM-CHANGE DRUM

13145-1074

$50.24

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13239

DRUM-ASSY-CHANGE

13239-1176

Unavailable

49047

ROD-SHIFT

49047-1070

$30.00

49047A

ROD-SHIFT

49047-1076

$28.92

92022

WASHER,6.5X24X2

92022-1690

$2.99

92026

SPACER,CHANGE DRUM

92026-1380

$14.56

92065

GASKET,10.5X16X1

92065-058

$3.03

92099

RIVET

92099-001

$3.51
