2005 Kawasaki ZZR600 (Canada Only) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

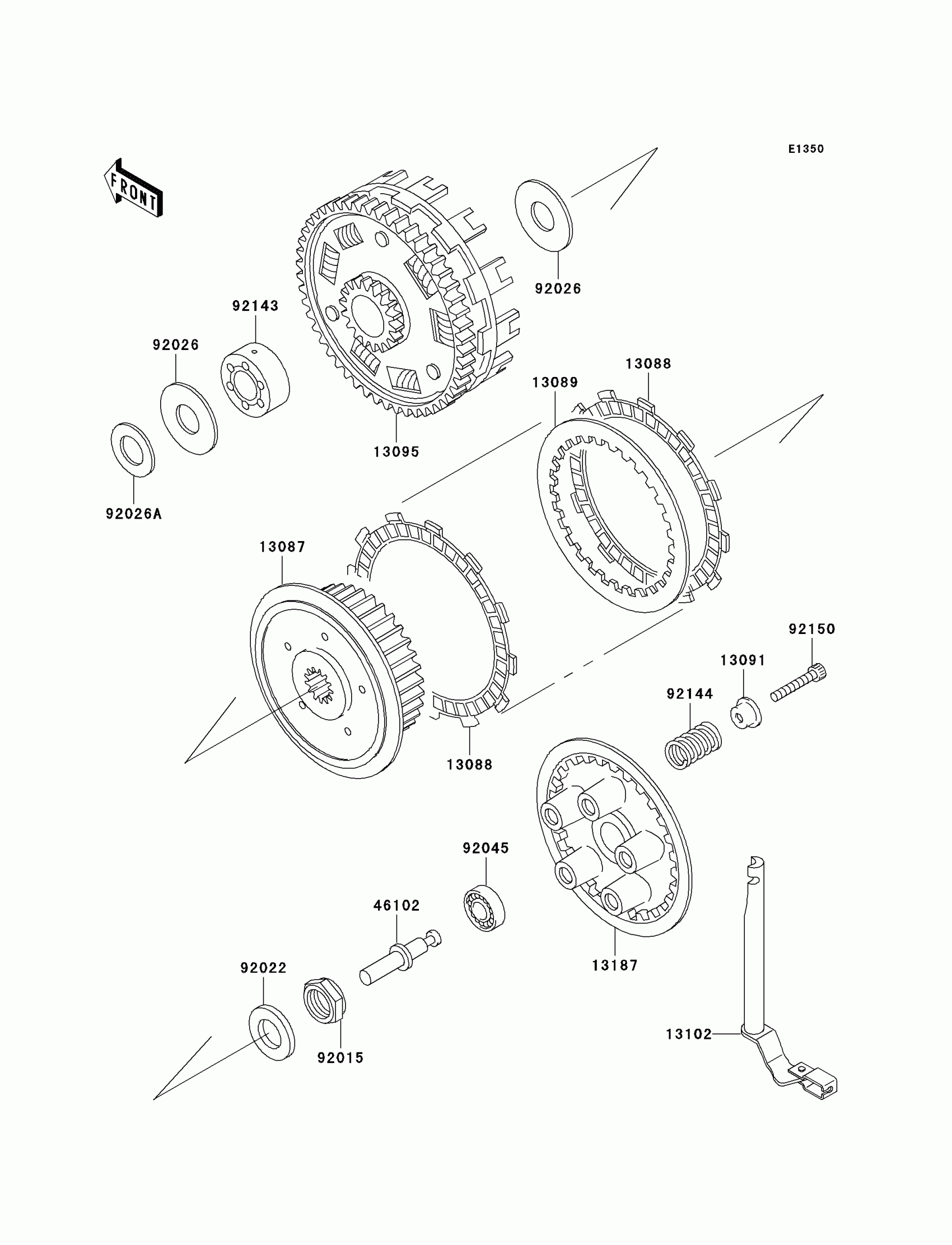

2005 Kawasaki ZZR600 (Canada Only) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1087

1

$18.28

In stock

13089

PLATE-CLUTCH,T=2.3

13089-1004

1

$10.41

In stock

13091

1

$3.69

In stock

13095

HOUSING-COMP-CLUTCH

13095-1304

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1156

1

$69.72

In stock

13187

1

$76.98

In stock

46102

ROD,CLUTCH

46102-1030

1

$27.10

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25X66X2.0

92026-1383

1

$11.41

In stock

92026A

SPACER,25.5X38X1.0

92026-1536

1

$7.22

In stock

92045

1

$12.85

In stock

92143

COLLAR

92143-1387

1

$108.97

In stock

92144

SPRING,CLUTCH

92144-1731

1

$8.46

In stock

92150

BOLT,SOCKET,6X35

92150-1713

1
Out of stock
