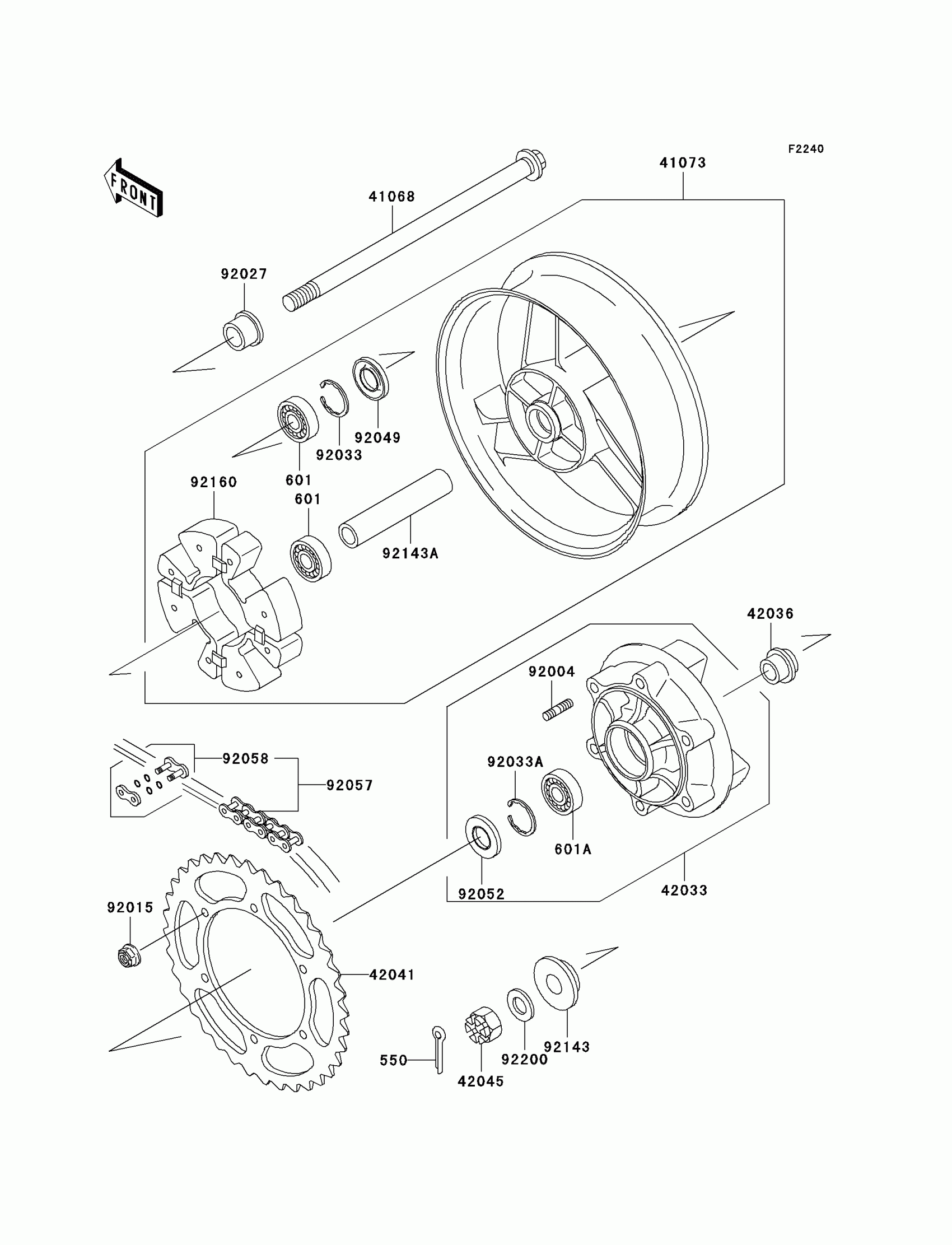

Kawasaki ZZR600 (Canada Only) Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL,#6205G

601B6205G

Unavailable

41068

AXLE,RR

41068-1350

$167.37

41073

WHEEL-ASSY,RR,G.GRAY

41073-1521-GE

$1,147.34

42033

COUPLING-ASSY,RR HUB

42033-1214

$318.73

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,48T

42041-1362

$78.39

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK50MV-XX112L

92057-0002

$395.63

92058

JOINT-CHAIN,DRIVE

92058-1098

$15.64

92143

COLLAR,RR AXLE,L=16

92143-1302

$42.62

92143A

COLLAR,RR HUB,L=133

92143-1303

$38.93

92160

DAMPER,SHOCK,RR HUB

92160-1399

$78.83

92200

WASHER,19X32X2.6

92200-1489

$1.35
