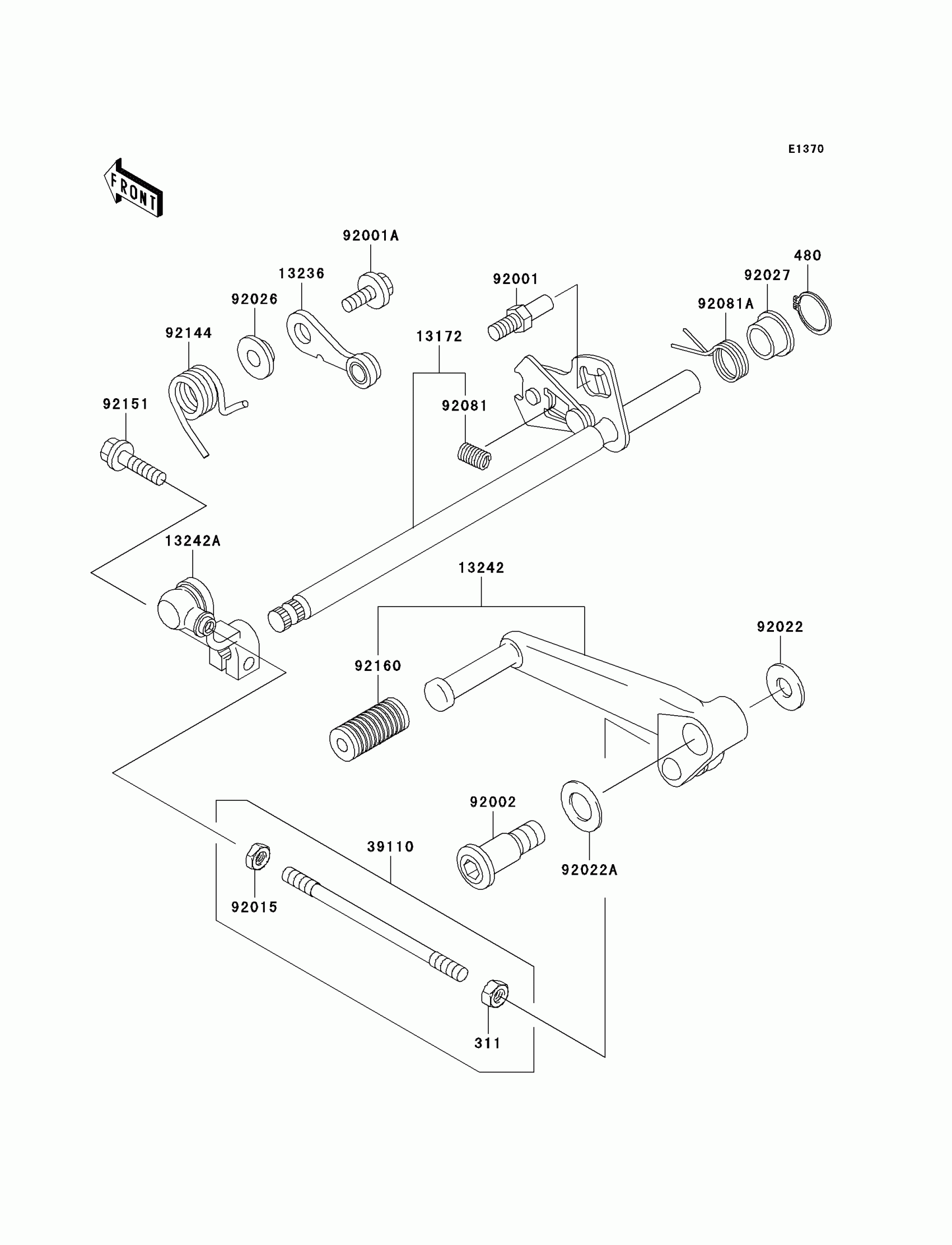

Kawasaki ZZR600 (Canada Only) Gear Change Mechanism Diagram

Description

Price

311

NUT-HEX

311J0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13172

SHAFT-ASSY-CHANGE

13172-1092

$128.55

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$18.36

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1305

$114.56

13242A

LEVER-ASSY-CHANGE,LINK

13242-1306

$54.72

39110

ROD-ASSY-TIE,CHANGE LEVER

39110-1010

$12.47

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92001A

BOLT,W/WASHER,6X12

92001-1516

$4.42

92002

BOLT,CHANGE PEDAL

92002-1926

$12.07

92015

NUT,LEFT HANDED,6MM

92015-1178

$3.85

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92022A

WASHER,12.5X22X1.2

92022-1593

$4.00

92026

SPACER

92026-1217

$4.18

92027

COLLAR,L=10.6

92027-1801

$8.44

92081

SPRING,CHANGE LEVER

92081-1275

$3.81

92081A

SPRING,CHANGE LEVER RETURN

92081-1279

$7.17

92144

SPRING,RETURN

92144-1693

$8.88

92151

BOLT,6X20

92151-1450

$1.76

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
