2005 Kawasaki ZZR600 (Canada Only) Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

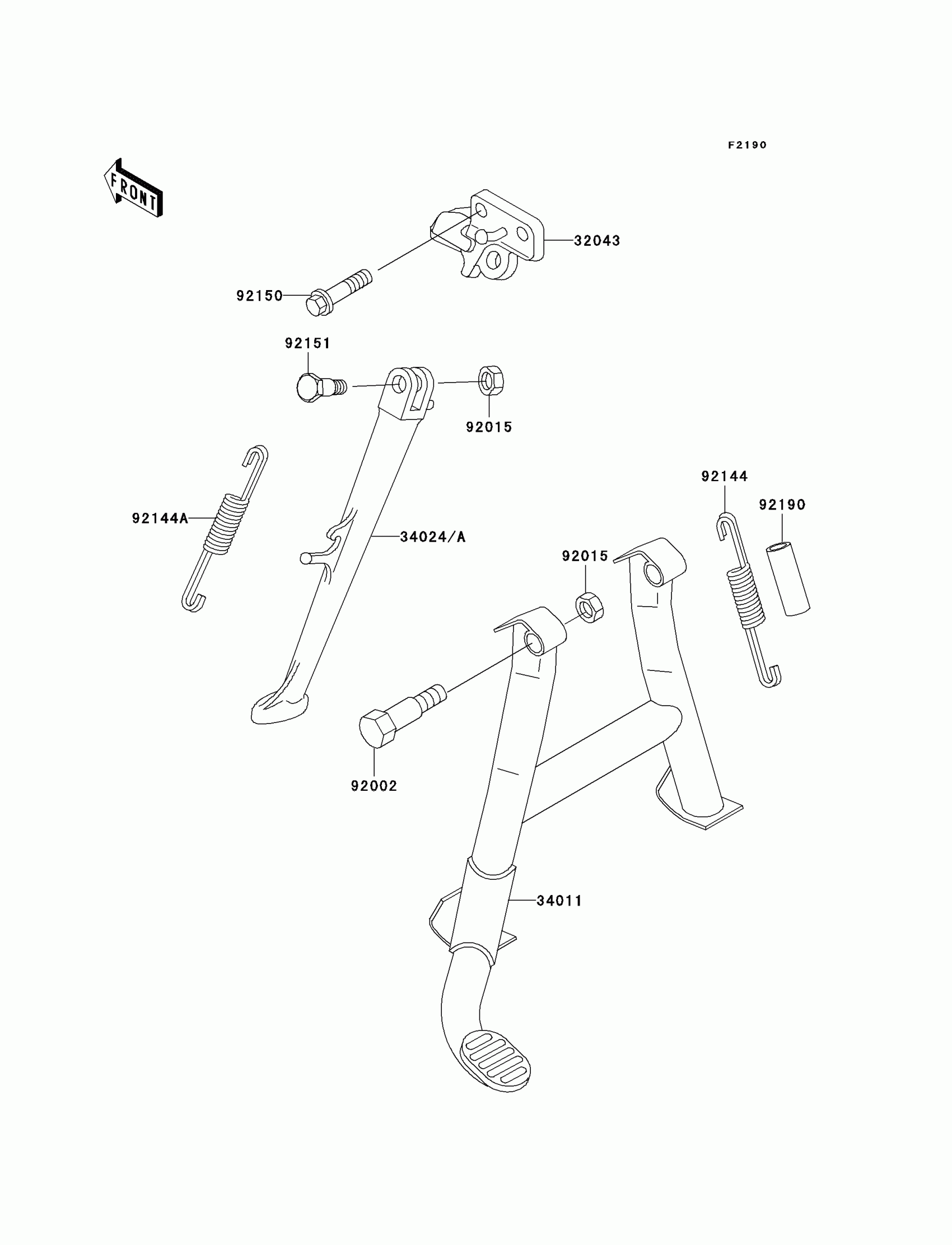

2005 Kawasaki ZZR600 (Canada Only) Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE

32043-1384

1

$66.79

In stock

34011

STAND-CENTER

34011-1147

1

$182.26

In stock

34024A

STAND-SIDE,C.GRAY

34024-1269-EZ

1
Out of stock

92002

BOLT,CENTER STAND

92002-1518

1

$9.51

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92144

SPRING,CENTER STAND

92144-1098

1

$24.97

In stock

92144A

SPRING,SIDE STAND

92144-1127

1

$11.48

In stock

92150

BOLT,FLANGED,10X35

92150-1646

1

$7.81

In stock

92151

BOLT,SIDE STAND

92151-1291

1

$5.81

In stock

92190

TUBE,16.5X20.5X55

92190-1462

1

$4.80

In stock
