2005 Kawasaki ZZR600 (Canada Only) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

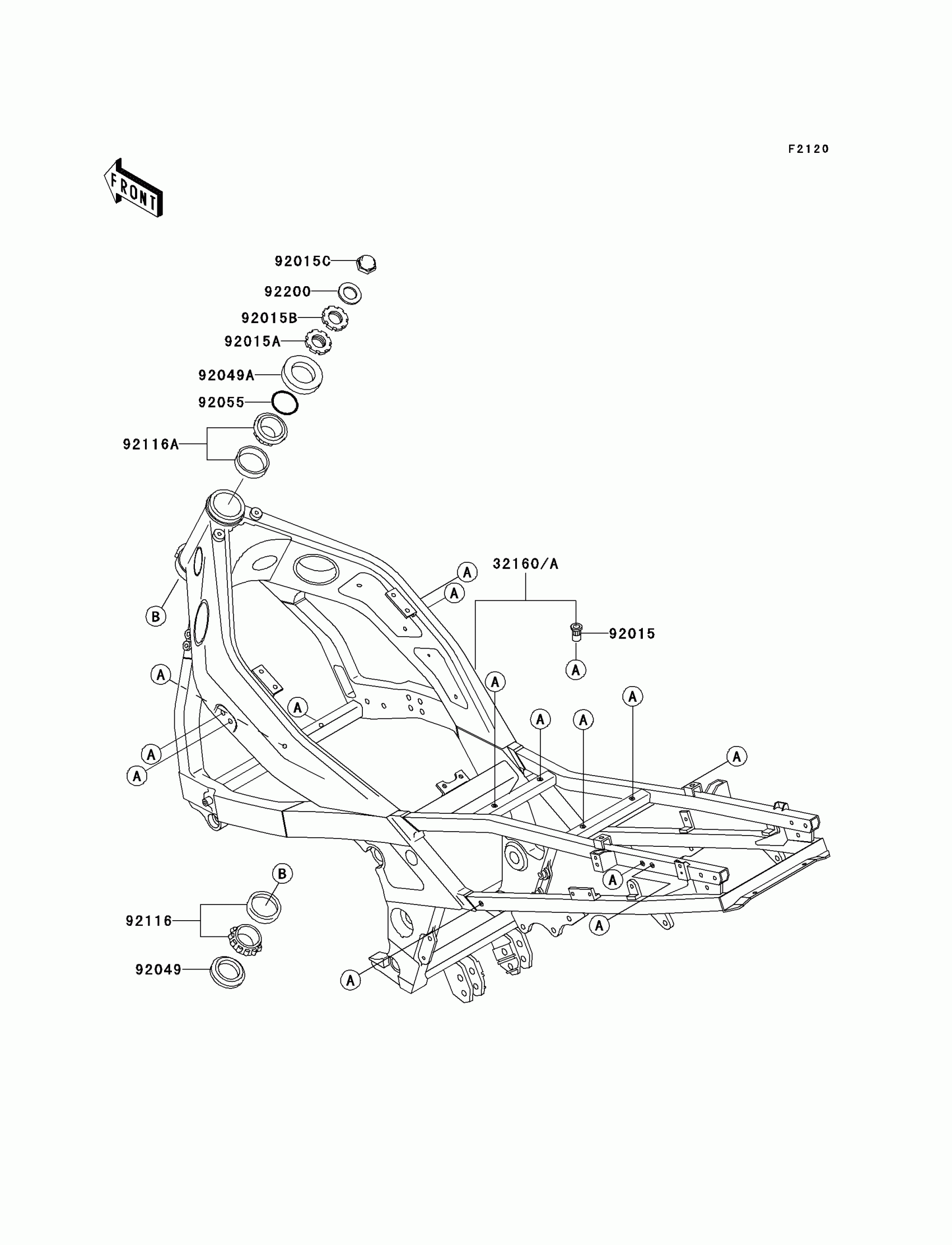

2005 Kawasaki ZZR600 (Canada Only) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160A

FRAME-COMP,AL,C.GRAY

32160-1387-EZ

1
Out of stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015A

NUT,25MM

92015-1803

1

$25.61

In stock

92015B

NUT,25MM

92015-1810

1

$19.66

In stock

92015C

NUT,CAP,22MM

92015-1873

1

$29.82

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,XMH33 70 6.4J-A

92049-1313

1
Out of stock

92055

RING-O,ID=24.5

92055-1459

1

$3.75

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

92200

WASHER,22.5X36X3.2

92200-1126

1
Out of stock
