2005 Kawasaki ZZR600 (Canada Only) Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

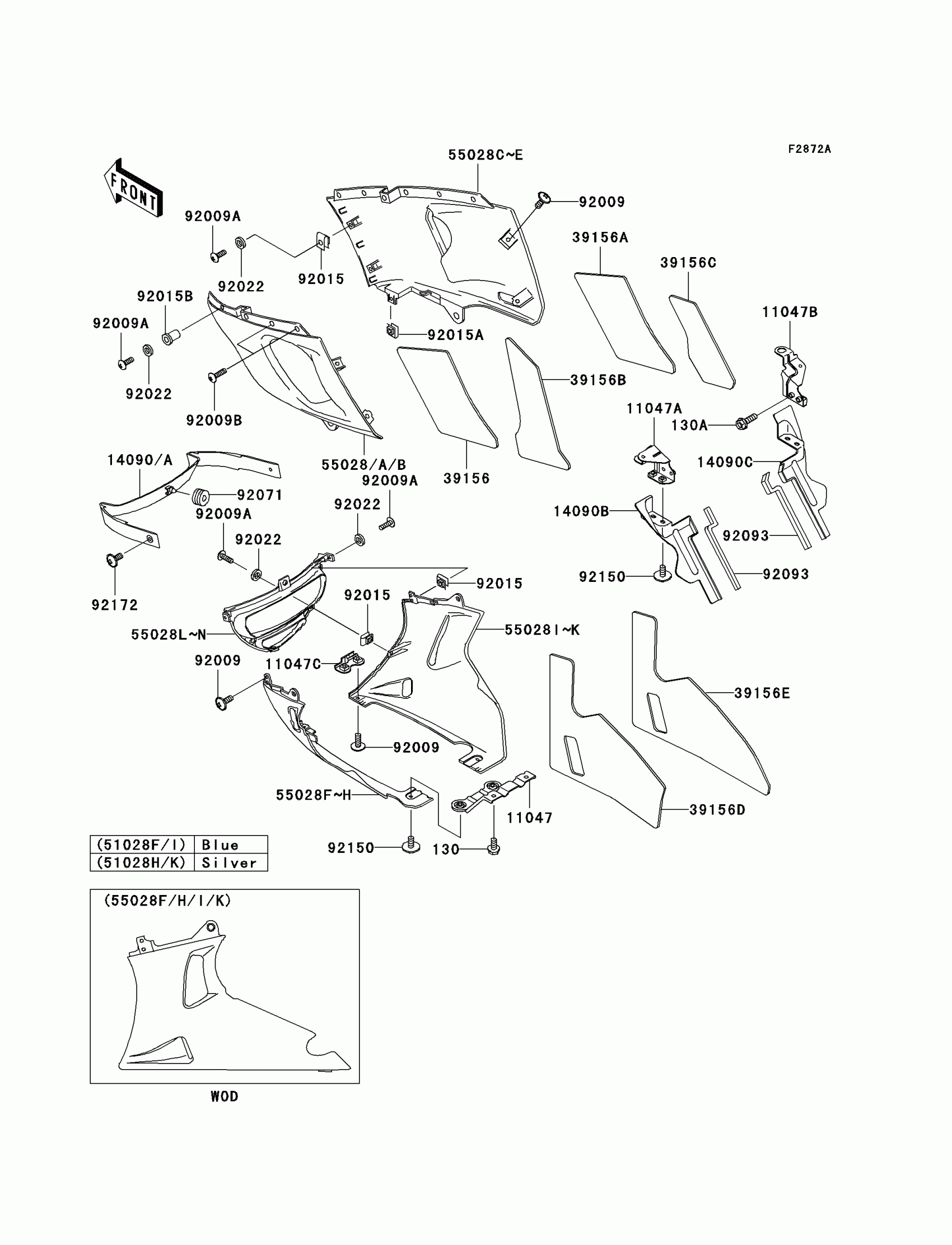

2005 Kawasaki ZZR600 (Canada Only) Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,LWR COWLING

11047-1091

1
Out of stock

11047A

BRACKET,CNT COWLING,LH

11047-1936

1
Out of stock

11047B

BRACKET,CNT COWLING,RH

11047-1937

1
Out of stock

11047C

BRACKET,LWR COWLING,FR

11047-1938

1
Out of stock

14090A

COVER,CNT,C.GRAY

14090-1263-EZ

1
Out of stock

14090B

COVER,HEAT GUARD,LH

14090-1292

1
Out of stock

14090C

COVER,HEAT GUARD,RH

14090-1293

1
Out of stock

39156

PAD,CNT COWLING,LH,FR

39156-1667

1
Out of stock

39156A

PAD,CNT COWLING,RH,FR

39156-1668

1
Out of stock

39156B

PAD,CNT COWLING,LH,RR

39156-1669

1
Out of stock

39156C

PAD,CNT COWLING,RH,RR

39156-1670

1
Out of stock

39156D

PAD,LWR COWLING,LH

39156-1671

1
Out of stock

39156E

PAD,LWR COWLING,RH

39156-1672

1
Out of stock

55028B

COWLING,CNT,LH,G.SILVER

55028-1293-474

1
Out of stock

55028E

COWLING,CNT,RH,G.SILVER

55028-1294-474

1
Out of stock

55028H

COWLING,LWR,LH,G.SILVER

55028-1295-474

1
Out of stock

55028K

COWLING,LWR,RH,G.SILVER

55028-1296-474

1
Out of stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

55028N

COWLING,LWR,FR,G.SILVER

55028-1297-474

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009B

SCREW,5X20,BLACK

92009-1656

1
Out of stock

92015

NUT,5MM

92015-1573

1
Out of stock

92015A

NUT,6MM

92015-1602

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92093

SEAL

92093-1351

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92172

SCREW,6X14

92172-0107

1
Out of stock
