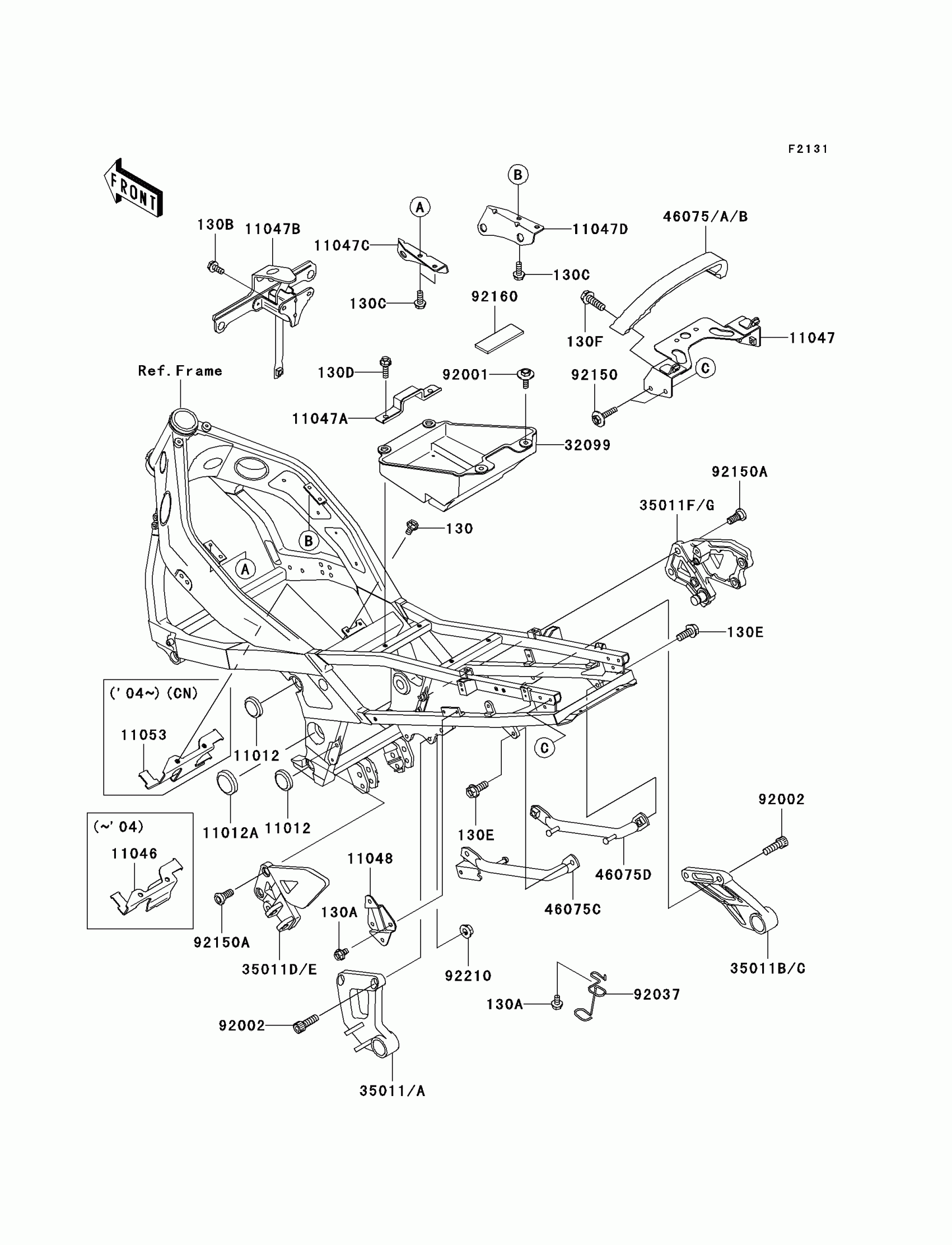

Kawasaki ZZR600 (Canada Only) Frame Fittings Diagram

#

Description
Price

11012

CAP

11012-1460

$10.92

11012A

CAP

11012-1657

$15.12

11047

BRACKET,TAIL GRIP

11047-1923

$70.42

11047A

BRACKET,STORAGE CASE

11047-1924

$15.02

11047B

BRACKET,OIL COOLER

11047-1927

$53.39

11047C

BRACKET,IGNITION COIL,LH

11047-1928

$17.20

11047D

BRACKET,IGNITION COIL,RH

11047-1929

$17.20

11048

BRACKET,REGULATOR

11048-1206

$19.24

11053

BRACKET,FUEL PUMP

11053-0599

Unavailable

32099

CASE,STORAGE

32099-1142

$44.89

35011A

STAY,RR,LH,C.GRAY

35011-1629-EZ

Unavailable

35011C

STAY,RR,RH,C.GRAY

35011-1630-EZ

Unavailable

35011E

STAY,FR,LH,C.GRAY

35011-1638-EZ

Unavailable

35011G

STAY,FR,RH,C.GRAY

35011-1639-EZ

Unavailable

46075

GRIP,TAIL

46075-0001

$214.58

46075C

GRIP,FRAME,LH

46075-1105

$38.23

46075D

GRIP,FRAME,RH

46075-1106

$38.23

92001

BOLT,6X20

92001-1826

$2.99

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92037

CLAMP,HOSE

92037-1875

$11.02

92150

BOLT,6X30

92150-1694

$2.98

92150A

BOLT,SOCKET,8X20

92150-1839

$1.57

92160

DAMPER,BATTERY

92160-1094

Unavailable

130

BOLT-FLANGED

130D0612

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

130B

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130C

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130D

BOLT-FLANGED

130J0620

Unavailable

130E

BOLT-FLANGED,8X20

130J0820

Unavailable

130F

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

92210

NUT,FLANGED,8MM

92210-0004

$4.07
