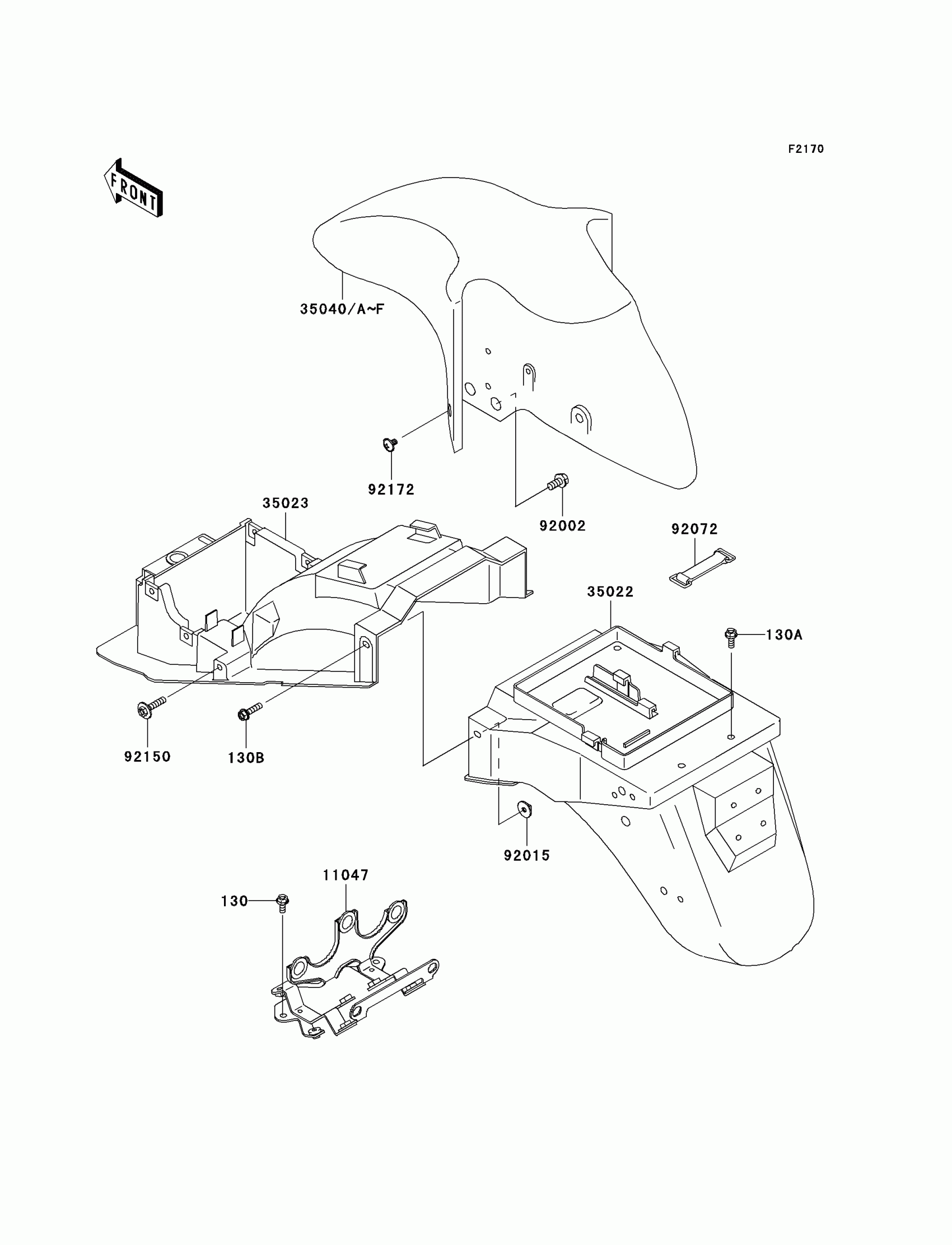

Kawasaki ZZR600 (Canada Only) Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,6X25

130J0625

Unavailable

11047

BRACKET,RR FENDER&TAIL LAMP

11047-1883

$70.07

35022

FENDER-COMP-REAR,RR

35022-1284

$123.00

35023

FENDER-REAR,FR

35023-1401

$112.81

35040F

FENDER-COMP-FRONT,G.SILVER

35040-1051-474

Unavailable

92002

BOLT,FLANGED,8X16

92002-1200

$4.34

92015

NUT,6MM

92015-1321

$11.86

92072

BAND,TOOL,L=82

92072-1294

$14.14

92150

BOLT,6X30

92150-1694

$2.98

92172

SCREW,6X10

92172-0005

$1.73
