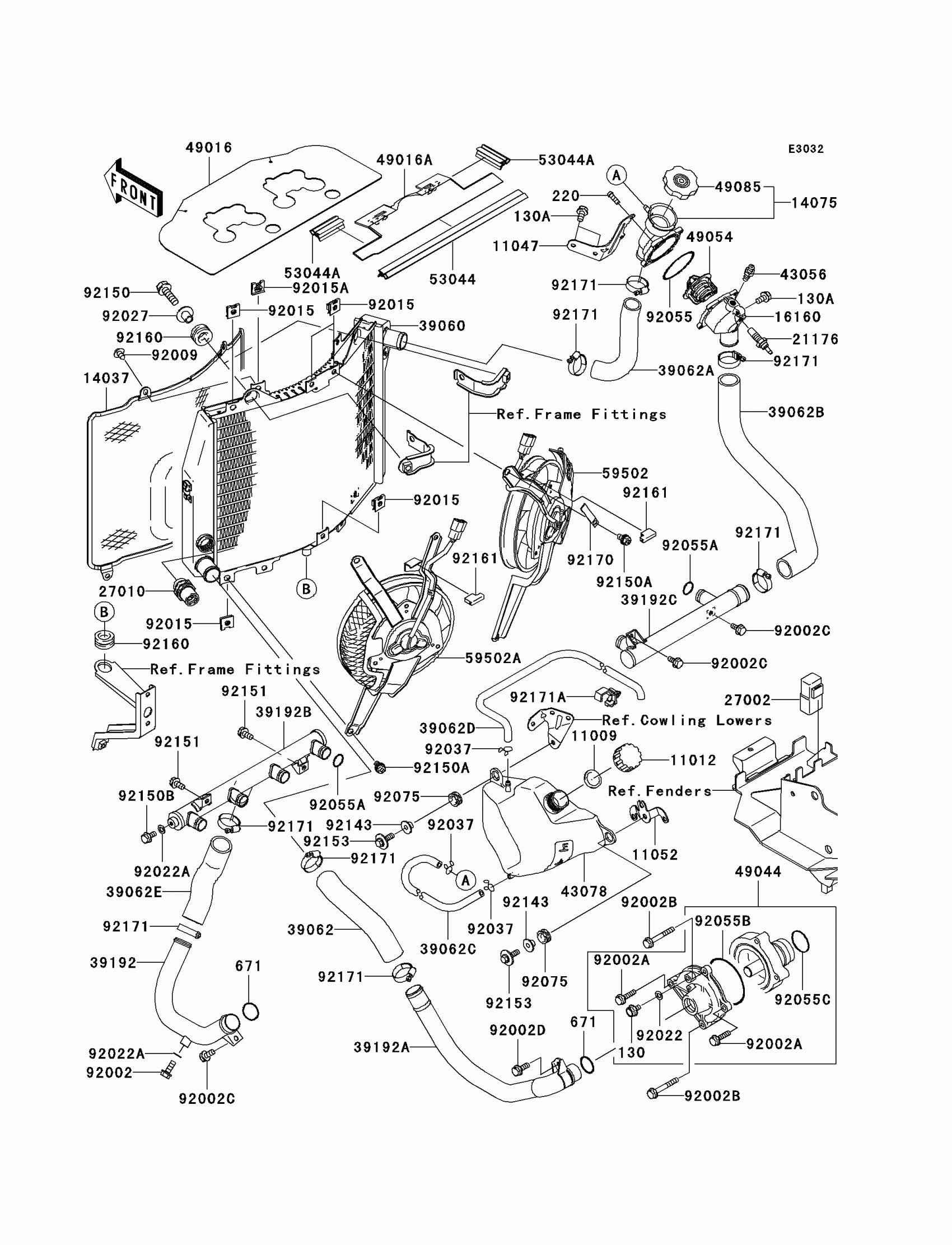

Find the part on the Radiator diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11047

1

$15.02

In stock

11052

BRACKET,RESERVOIR

11052-1718

1

$9.10

In stock

14037

SCREEN,RADIATOR

14037-1172

1

$98.73

In stock

14075

CAP-ASSY

14075-1068

1

$174.32

In stock

16160

BODY,THERMOSTAT

16160-1117

1

$85.47

In stock

21176

SENSOR,WATER

21176-1054

1

$75.00

In stock

27002

RELAY-ASSY

27002-1086

1

$33.76

In stock

27010

SWITCH

27010-1443

1

$132.85

In stock

39060

RADIATOR

39060-1181

1

$1,056.30

In stock

39062

1

$38.58

In stock

39062A

1

$38.58

In stock

39062B

1

$55.46

In stock

39062C

1

$42.35

In stock

39062D

1

$24.95

In stock

39062E

1

$33.30

In stock

39192

1

$79.65

In stock

39192A

1

$120.36

In stock

39192B

PIPE-WATER,INLET

39192-1146

1

$120.36

In stock

39192C

PIPE-WATER,OUTLET

39192-1147

1
Out of stock

43056

BREATHER

43056-003

1

$22.74

In stock

43078

RESERVOIR

43078-1183

1

$83.39

In stock

49016

COVER-SEAL

49016-1166

1

$45.32

In stock

49016A

1

$37.23

In stock

49044

PUMP-WATER

49044-1080

1

$301.81

In stock

49054

THERMOSTAT

49054-1051

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1067

1

$48.74

In stock

53044

TRIM,L=403

53044-1331

1

$31.43

In stock

53044A

TRIM,L=70

53044-1332

1

$8.32

In stock

59502

FAN-ASSY,RH

59502-1145

1

$798.22

In stock

59502A

FAN-ASSY,LH

59502-1146

1

$798.22

In stock

92002

BOLT,6X16

92002-1099

1

$1.12

In stock

92002A

BOLT,6X22

92002-1392

1

$4.19

In stock

92002B

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92002C

BOLT,6X12

92002-1569

1
Out of stock

92002D

BOLT,6X16

92002-1571

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130H0612

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

671

O RING,25MM

671B2525

1

$3.97

In stock

92022

WASHER,6MM

92022-1976

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92027

1

$8.16

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92055A

RING-O

92055-1282

1

$4.16

In stock

92055B

1

$7.43

In stock

92055C

RING-O,33.2X2.4

92055-1424

1

$4.97

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR

92143-1962

1

$4.42

In stock

92150

BOLT

92150-1007

1

$4.25

In stock

92150A

BOLT,6X12

92150-1186

1

$2.92

In stock

92150B

BOLT,FLANGED,6X12

92150-1826

1

$3.20

In stock

92151

BOLT,6X12

92151-1997

1

$1.36

In stock

92153

BOLT,M6

92153-1170

1
Out of stock

92160

DAMPER

92160-1007

1

$4.37

In stock

92161

DAMPER,HEAT GUARD

92161-1277

1

$3.49

In stock

92170

CLAMP

92170-1937

1

$2.15

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP,TUBE

92171-1512

1

$3.92

In stock
