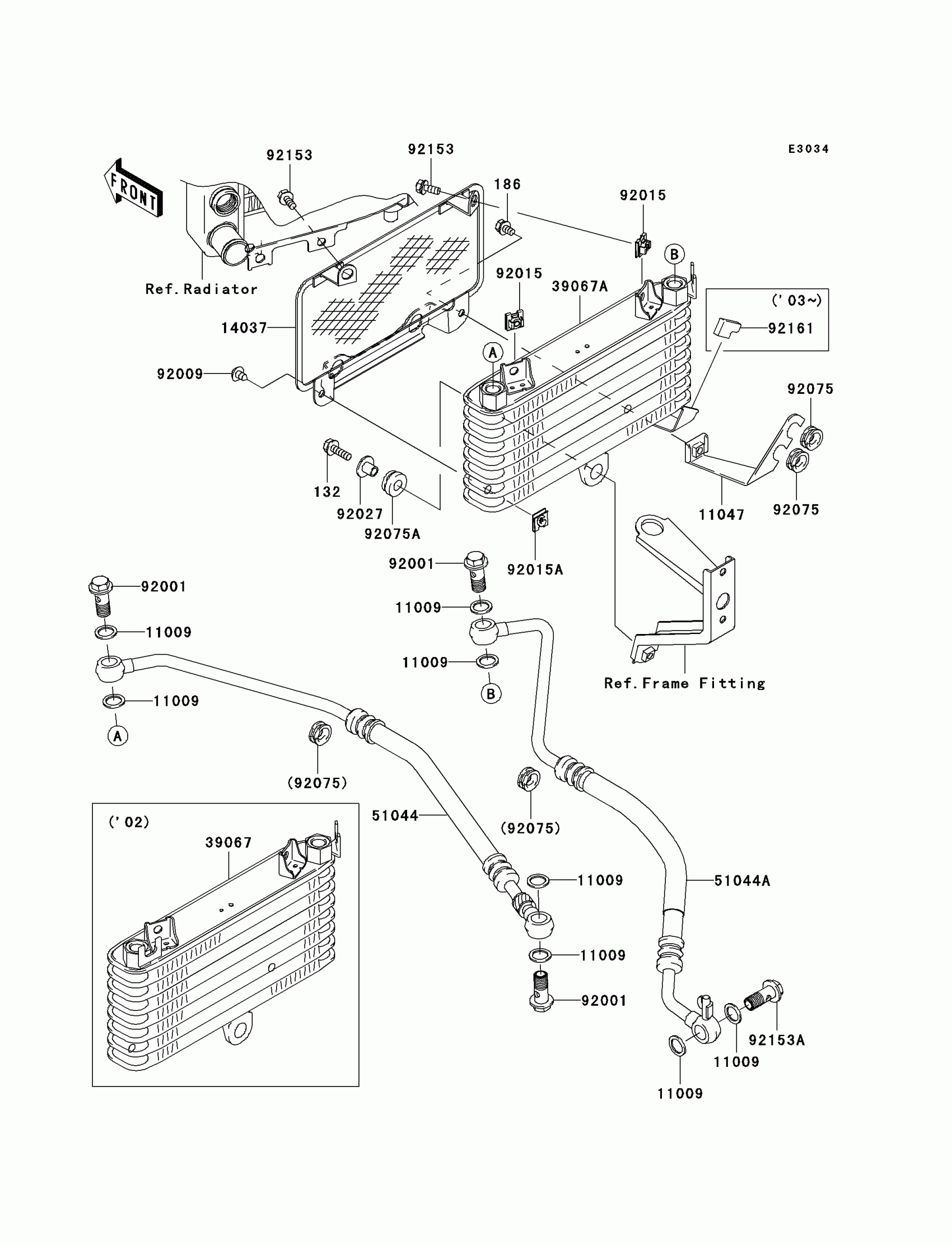

Find the part on the Oil Cooler diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132H0620

1
Out of stock

186

BOLT-UPSET-WP

186H0612

1
Out of stock

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

11047

BRACKET,OIL TUBE

11047-1888

1

$19.24

In stock

14037

SCREEN,OIL COOLER

14037-1308

1

$76.11

In stock

39067A

COOLER-OIL

39067-1072

1

$816.26

In stock

51044

TUBE-ASSY,LH

51044-1152

1

$255.96

In stock

51044A

TUBE-ASSY,RH

51044-1232

1

$318.70

In stock

92001

BOLT,14X28.5

92001-1930

1

$9.59

In stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

92027

1

$4.37

In stock

92075

DAMPER,OIL COOLER

92075-1942

1
Out of stock

92075A

DAMPER

92075-277

1

$2.20

In stock

92153

BOLT,SCREEN

92153-1211

1
Out of stock

92153A

BOLT,14X28.5 LH THREAD

92153-1226

1
Out of stock

92161

DAMPER,HEAT GUARD

92161-1277

1

$3.49

In stock
