2005 Kawasaki ZZR1200 Fuel Pump Diagram

← All diagrams

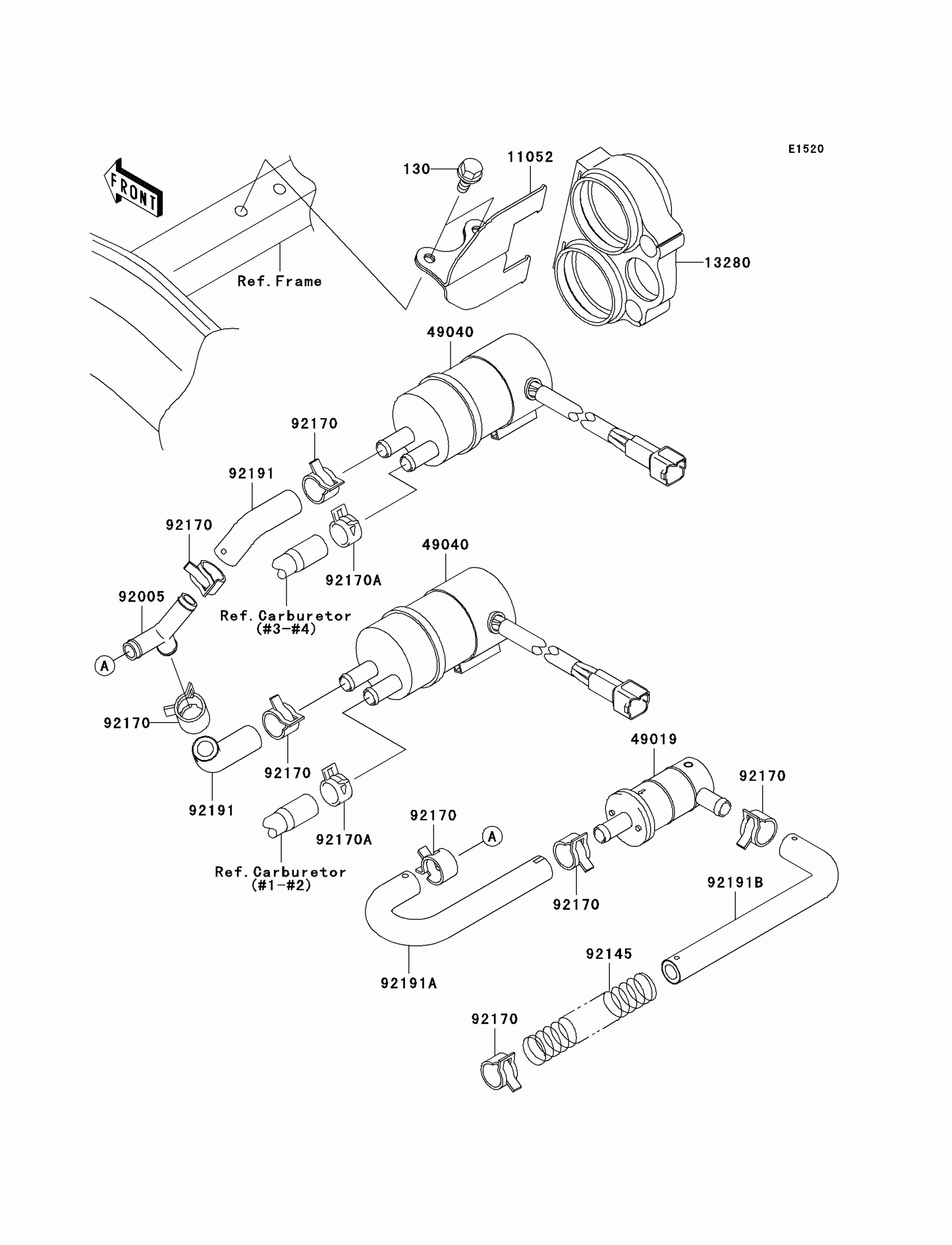

Find the part on the Fuel Pump diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130H0616

1
Out of stock

11052

BRACKET,HOLDER

11052-1754

1

$11.92

In stock

13280

HOLDER,FUEL PUMP

13280-1264

1

$38.31

In stock

49019

FILTER-FUEL

49019-1083

1

$15.42

In stock

49040

PUMP-FUEL

49040-1079

1
Out of stock

92005

FITTING,FUEL PUMP

92005-1396

1
Out of stock

92145

SPRING,TUBE

92145-1135

1

$12.07

In stock

92170

CLAMP

92170-1118

1

$5.93

In stock

92170A

CLAMP

92170-1938

1

$2.97

In stock

92191

TUBE,L=58

92191-1710

1
Out of stock

92191A

TUBE,L=171

92191-1711

1
Out of stock

92191B

TUBE,L=136

92191-1712

1
Out of stock
