2005 Kawasaki ZZR1200 Fuel Evaporative System Diagram

← All diagrams

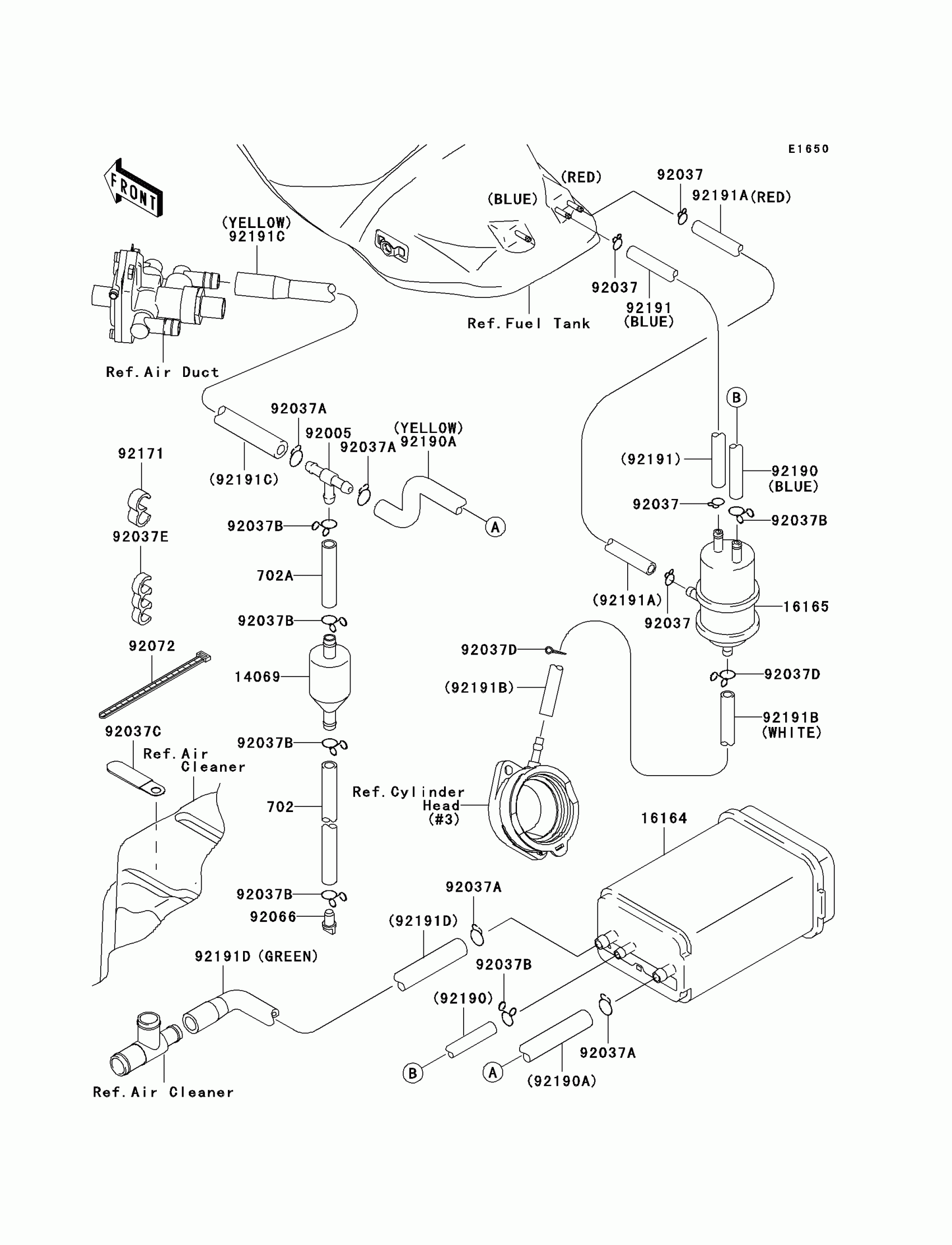

Find the part on the Fuel Evaporative System diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

702

TUBE-RUBBER,7X10X270

702A07270

1
Out of stock

702A

TUBE-RUBBER,BREATHER UPPER

702A0750

1
Out of stock

14069

BREATHER

14069-1051

1
Out of stock

16164

CANISTER

16164-1052

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92037A

CLAMP-HOSE

92037-1104

1
Out of stock

92037B

CLAMP,TUBE

92037-147

1
Out of stock

92037C

CLAMP,L=45

92037-1539

1
Out of stock

92037D

CLAMP

92037-1712

1
Out of stock

92037E

CLAMP,TUBE

92037-1941

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92072

BAND,L=250

92072-1237

1
Out of stock

92171

CLAMP

92171-1184

1
Out of stock

92190

TUBE,CANISTER-SEPARATOR,BLUE

92190-1379

1
Out of stock

92190A

TUBE,FITTING-CANISTER,YELLOW

92190-1430

1
Out of stock

92191

TUBE,BULE

92191-1707

1
Out of stock

92191A

TUBE,RED

92191-1709

1
Out of stock

92191B

TUBE,WHITE

92191-1713

1
Out of stock

92191C

TUBE,VALVE-FITTING

92191-1758

1
Out of stock

92191D

TUBE,CANISTER-AIR FILTER

92191-1760

1
Out of stock
