2005 Kawasaki ZZR1200 Carburetor Diagram

← All diagrams

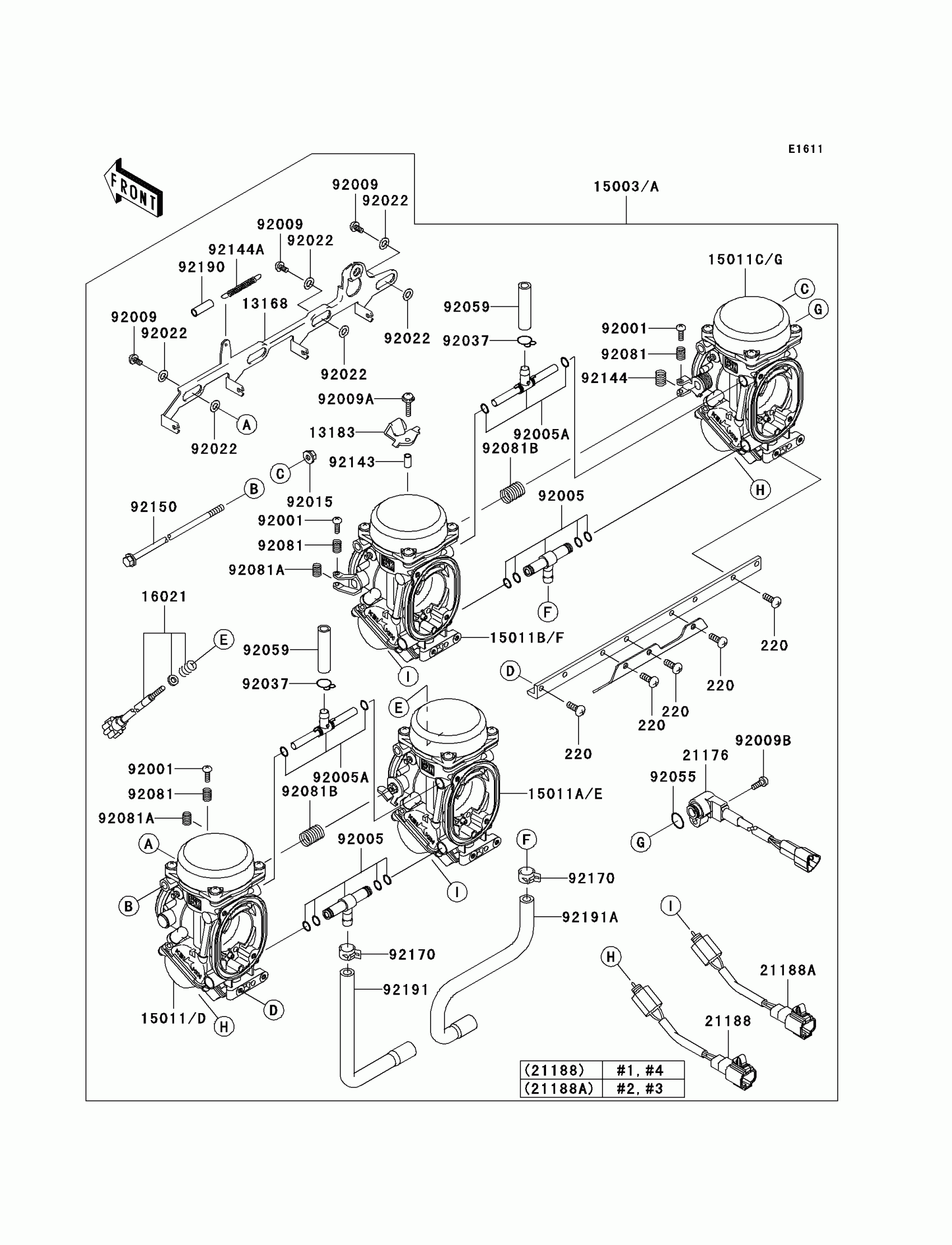

Find the part on the Carburetor diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,STARTER

13168-1405

1

$125.89

In stock

13183

PLATE,STARTER CABLE

13183-1592

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1240

1

$120.36

In stock

21176

SENSOR,THROTTLE

21176-1115

1

$265.80

In stock

21188

1

$180.43

In stock

21188A

1

$159.60

In stock

92001

1

$15.88

In stock

92005

FITTING

92005-1294

1
Out of stock

92005A

FITTING

92005-1338

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,4X18

92009-1632

1
Out of stock

92009B

SCREW,THROTTLE SENSOR

92009-1981

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

1

$3.82

In stock

92037

CLAMP,TUBE

92037-1531

1

$4.37

In stock

92055

RING-O

92055-1671

1

$3.29

In stock

92059

TUBE,7X11X45

92059-1738

1

$24.19

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

1

$10.27

In stock

92143

COLLAR,4X5.2X9.6

92143-1265

1

$5.85

In stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

92144

SPRING

92144-1451

1

$9.29

In stock

92144A

1

$22.90

In stock

92150

BOLT,5X305

92150-1211

1

$32.48

In stock

92170

CLAMP,TUBE

92170-1051

1

$8.75

In stock

92190

TUBE,STARTER SPRING

92190-1157

1

$9.22

In stock

92191

TUBE,7.3X12.5X230

92191-1766

1
Out of stock

92191A

TUBE,7.3X12.5X266

92191-1767

1
Out of stock

15003

CARBURETOR-ASSY

15003-1710

1

$2,222.27

In stock

15003A

CARBURETOR-ASSY

15003-1711

1
Out of stock

15011

CARBURETOR,LH,OUTSIDE

15011-1959

1
Out of stock

15011A

CARBURETOR,LH,INSIDE

15011-1960

1
Out of stock

15011B

CARBURETOR,RH,INSIDE

15011-1961

1
Out of stock

15011C

CARBURETOR,RH,OUTSIDE

15011-1962

1
Out of stock

15011D

CARBURETOR,LH,OUTSIDE

15011-1979

1
Out of stock

15011E

CARBURETOR,LH,INSIDE

15011-1980

1
Out of stock

15011F

CARBURETOR,RH,INSIDE

15011-1981

1
Out of stock

15011G

CARBURETOR,RH,OUTSIDE

15011-1982

1
Out of stock
