2003 Kawasaki ZRX1200R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

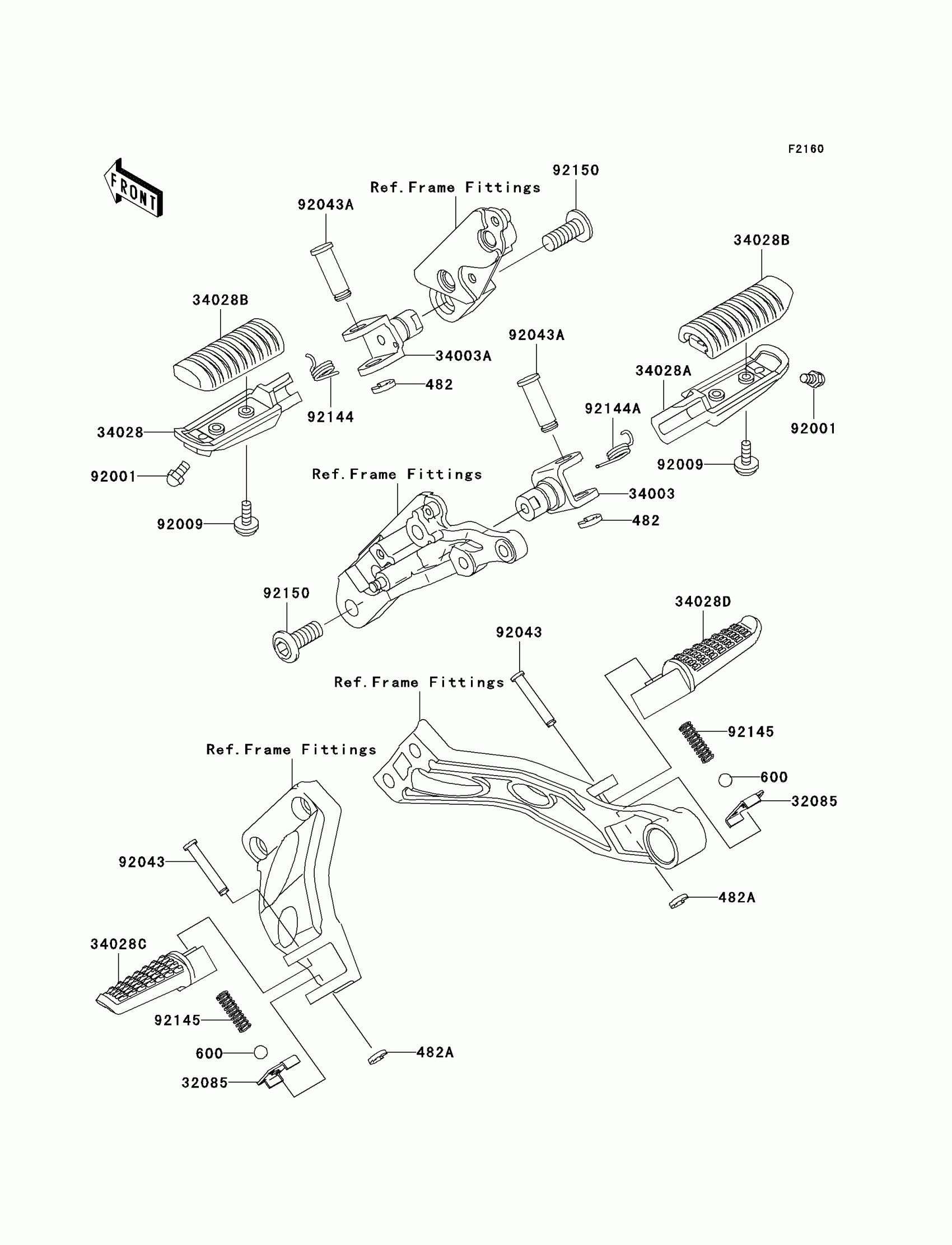

2003 Kawasaki ZRX1200R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

1

$0.98

In stock

482A

1

$1.20

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

32085

STOPPER,REAR STEP

32085-1496

1

$2.36

In stock

34003

HOLDER-STEP

34003-1327

1

$37.75

In stock

34003A

HOLDER-STEP,FR,LH

34003-1474

1

$46.99

In stock

34028

STEP,FR,LH

34028-1428

1

$46.40

In stock

34028A

STEP,FR,RH

34028-1429

1

$46.40

In stock

34028B

STEP,RUBBER

34028-1430

1

$21.09

In stock

34028C

STEP,RR,LH

34028-1480

1

$71.73

In stock

34028D

STEP,RR,RH

34028-1481

1

$71.73

In stock

92001

BOLT,BANK SENSOR

92001-1905

1

$7.22

In stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92043

PIN,6X40

92043-1595

1

$1.95

In stock

92043A

PIN,12X37

92043-1641

1

$8.90

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92144A

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92150

BOLT,SOCKET,10X25

92150-1268

1

$4.93

In stock
