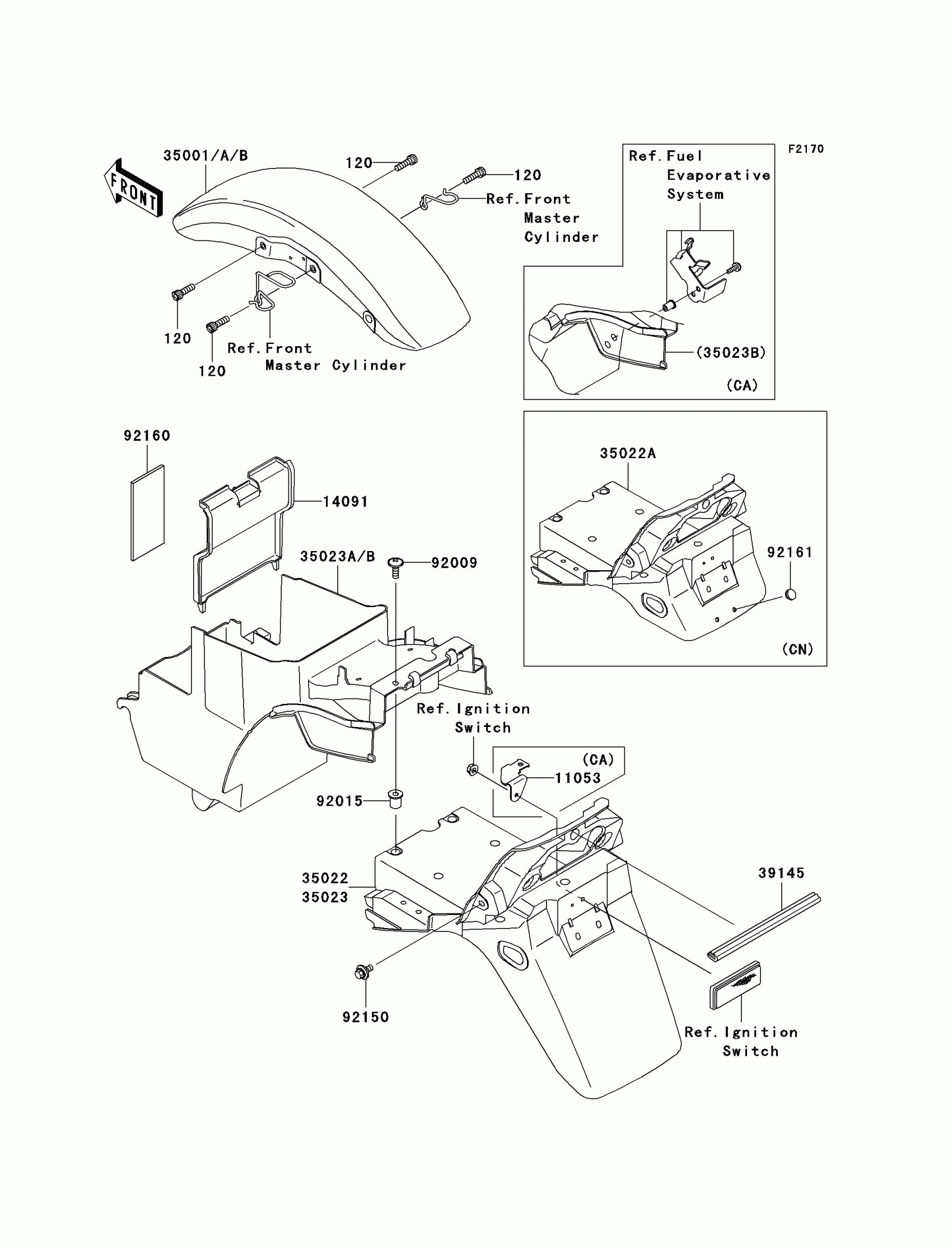

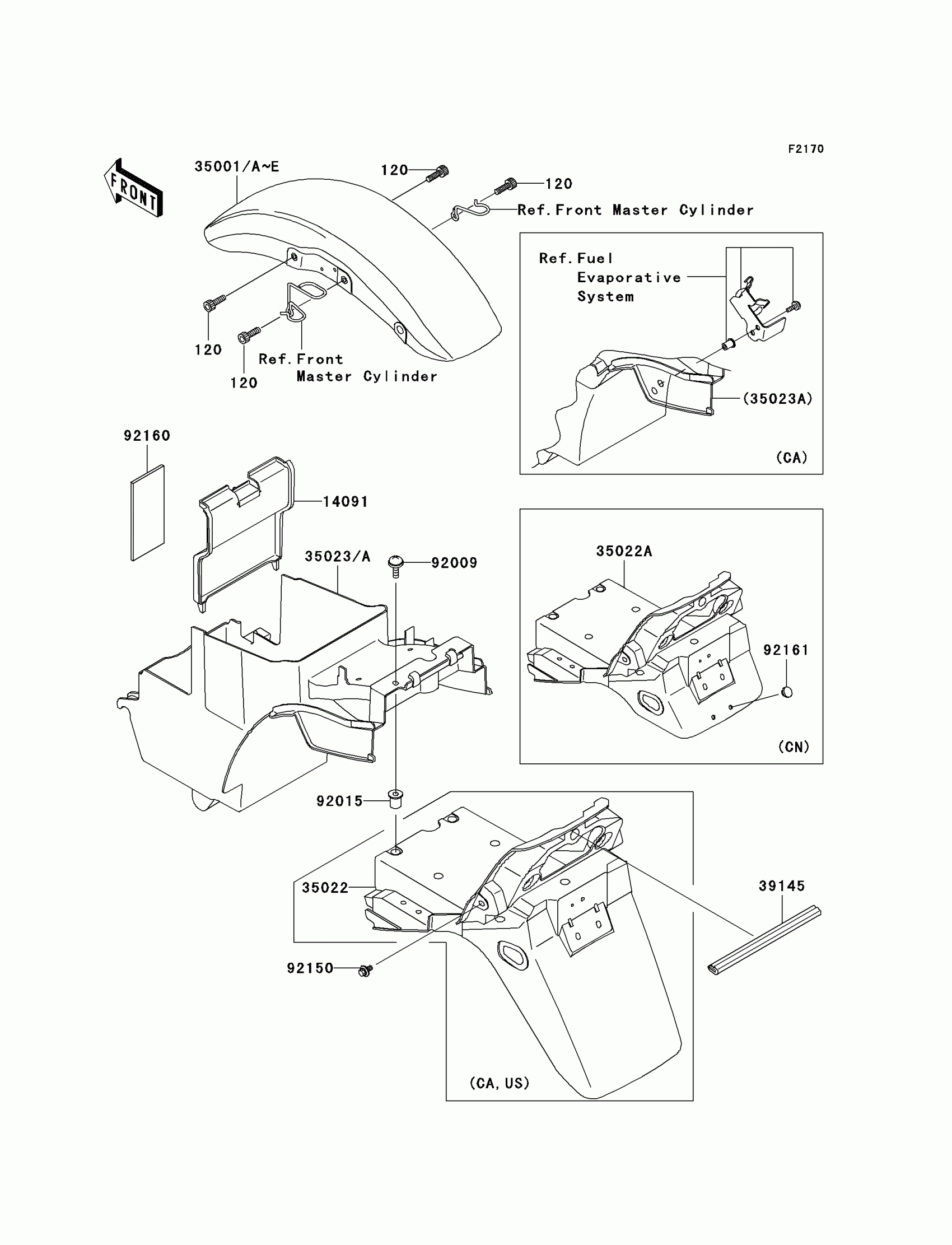

Kawasaki ZRX1200R Fenders Diagram

Description

Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

14091

COVER,BATTERY

14091-1353

$15.78

35001E

FENDER-ASSY-FRONT,C.L.GREEN

35001-1205-8N

$254.90

39145

TRIM-SEAL,L=120

39145-1104

$4.80

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT

92015-1700

$6.55

92150

BOLT,FLANGED,6X14

92150-1689

$3.01

92160

DAMPER

92160-1851

$6.54

35001A

FENDER-ASSY-FRONT,C.L.BLUE

35001-1205-E1

$227.02

35001D

FENDER-ASSY-FRONT,G.SILVER

35001-1205-474

Unavailable

35022

FENDER-COMP-REAR,RR

35022-1336

$175.26

35022A

FENDER-COMP-REAR,RR

35022-1341

Unavailable

35023

FENDER-REAR,FR

35023-1550

$98.04

35023A

FENDER-REAR,FR

35023-1552

$120.60

92161

DAMPER

92161-1084

$1.89
