2003 Kawasaki ZRX1200R Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

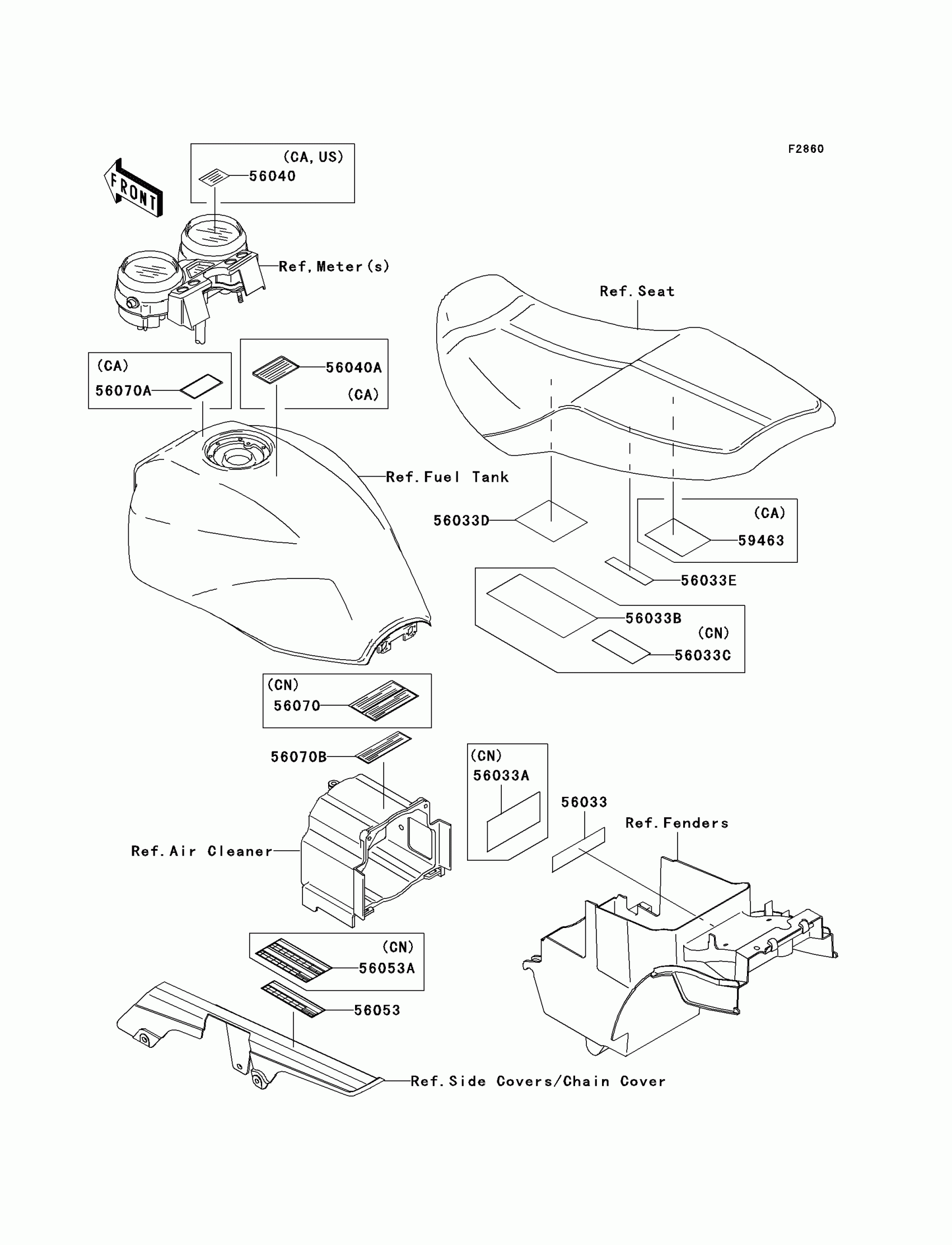

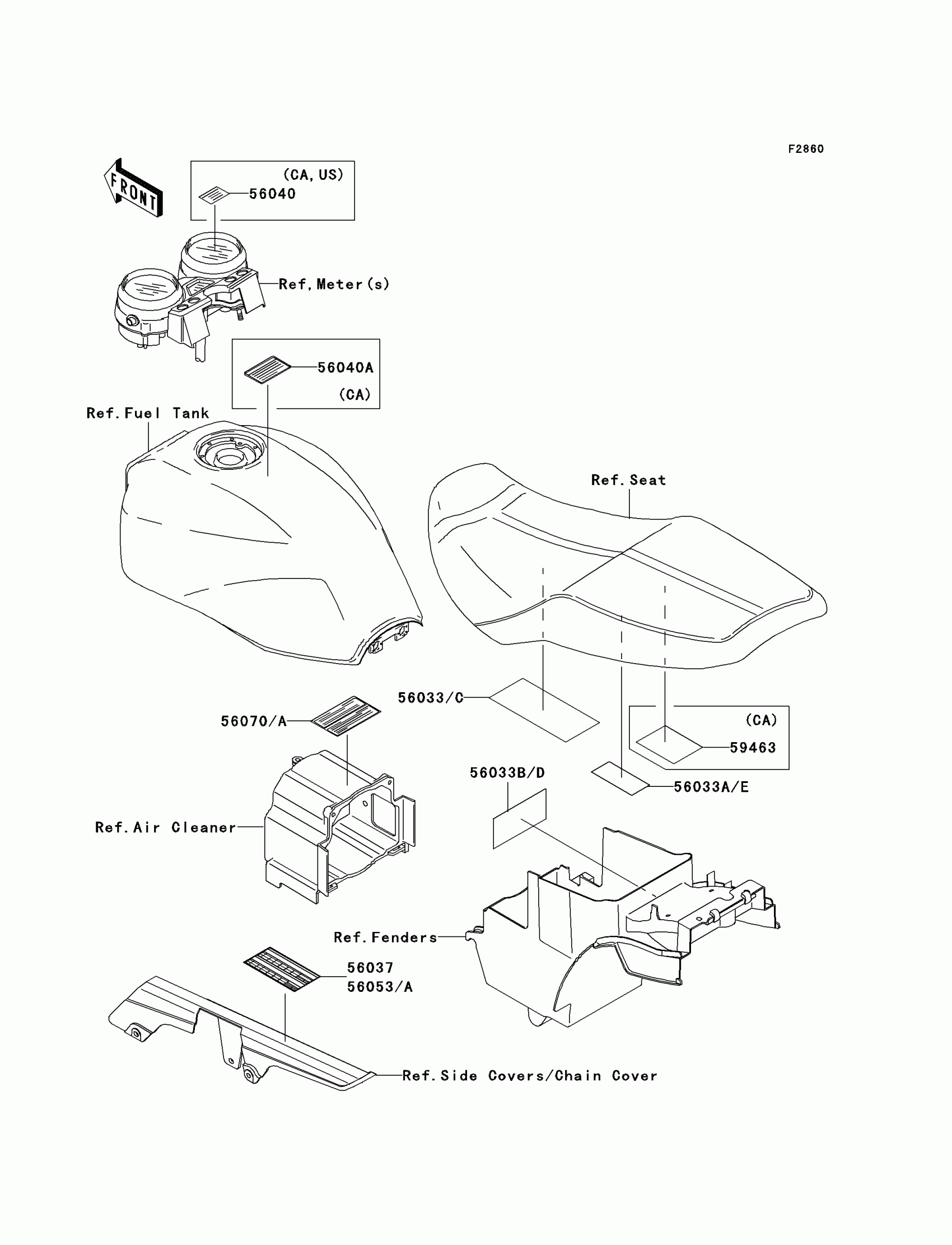

2003 Kawasaki ZRX1200R Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

1

$9.37

In stock

56033A

1

$5.25

In stock

56033B

LABEL-MANUAL,CHAIN

56033-1289

1

$5.92

In stock

56033C

1

$7.44

In stock

56033D

LABEL-MANUAL,CHAIN

56033-1357

1

$5.54

In stock

56033E

1

$5.71

In stock

56040

1

$5.32

In stock

56040A

LABEL-WARNING,EVAPO

56040-1121

1

$4.83

In stock

56053

LABEL-SPECIFICATION,TIRE&LOAD

56053-1067

1
Out of stock

56053A

LABEL-SPECIFICATION,TIRE&LOAD

56053-1104

1
Out of stock

56070

1

$5.24

In stock

56070A

1

$5.95

In stock

59463

1

$8.47

In stock
