2000 Kawasaki ZRX1100 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

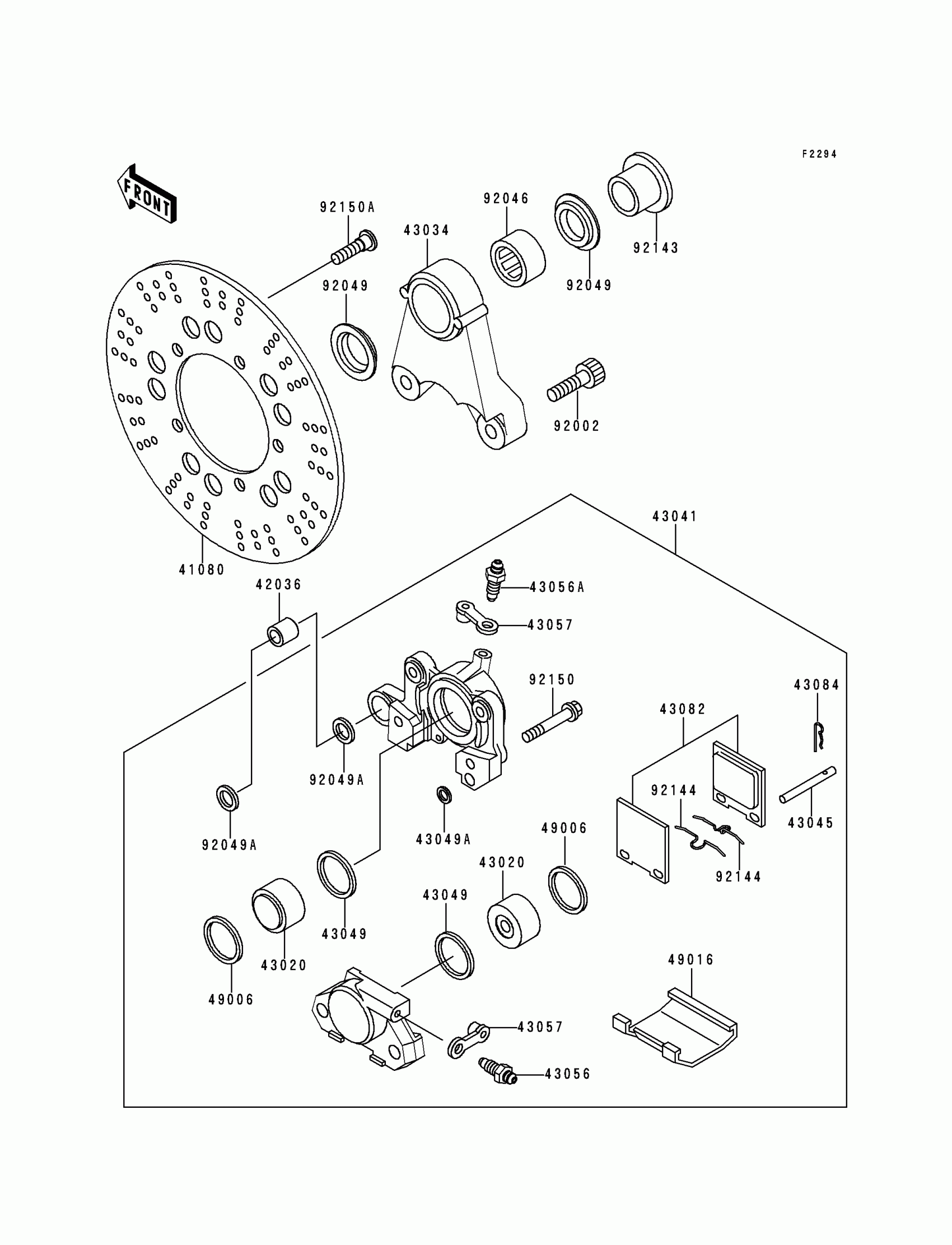

2000 Kawasaki ZRX1100 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR,GOLD

41080-1422-CL

1

$315.78

In stock

42036

SLEEVE,8.1X14X17.6

42036-1260

1

$14.19

In stock

43020

PISTON-COMP-BRAKE

43020-1107

1

$66.46

In stock

43034

1

$188.03

In stock

43041

CALIPER-ASSY,RR

43041-1626

1
Out of stock

43045

SHAFT-CALIPER

43045-007

1

$5.15

In stock

43049

1

$8.76

In stock

43049A

1

$4.88

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43056A

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1200

1

$50.23

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

49016

COVER-SEAL

49016-1145

1

$12.88

In stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL

92049-1339

1
Out of stock

92143

COLLAR,L=35

92143-1043

1

$41.66

In stock

92144

SPRING,PAD

92144-1401

1

$4.80

In stock

92150

BOLT,FLANGED,10X45

92150-1273

1

$8.44

In stock

92150A

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock
