2000 Kawasaki ZRX1100 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

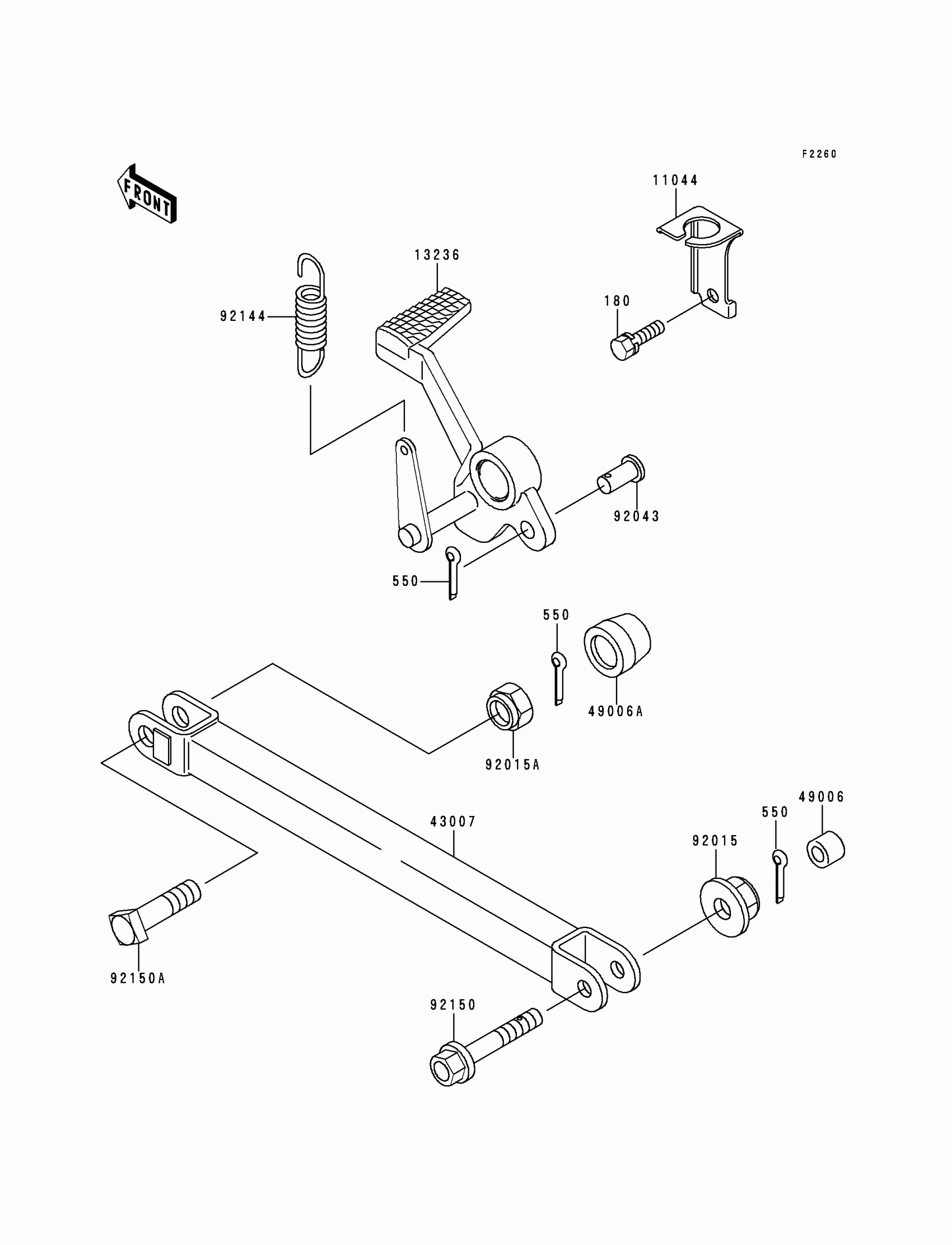

2000 Kawasaki ZRX1100 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X14

180H0614

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

11044

BRACKET,RR BRAKE SWITCH

11044-1107

1
Out of stock

13236

LEVER-COMP,PEDAL

13236-1293

1
Out of stock

43007

ROD-TORQUE

43007-1184

1
Out of stock

49006

BOOT

49006-1218

1
Out of stock

49006A

BOOT

49006-1275

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92015A

NUT,10MM

92015-1883

1
Out of stock

92043

PIN,8MM

92043-1303

1
Out of stock

92144

SPRING,PAD

92144-1470

1
Out of stock

92150

BOLT,FLANGED,8X47

92150-1539

1
Out of stock

92150A

BOLT,10X39.5

92150-1598

1
Out of stock
