2000 Kawasaki ZRX1100 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

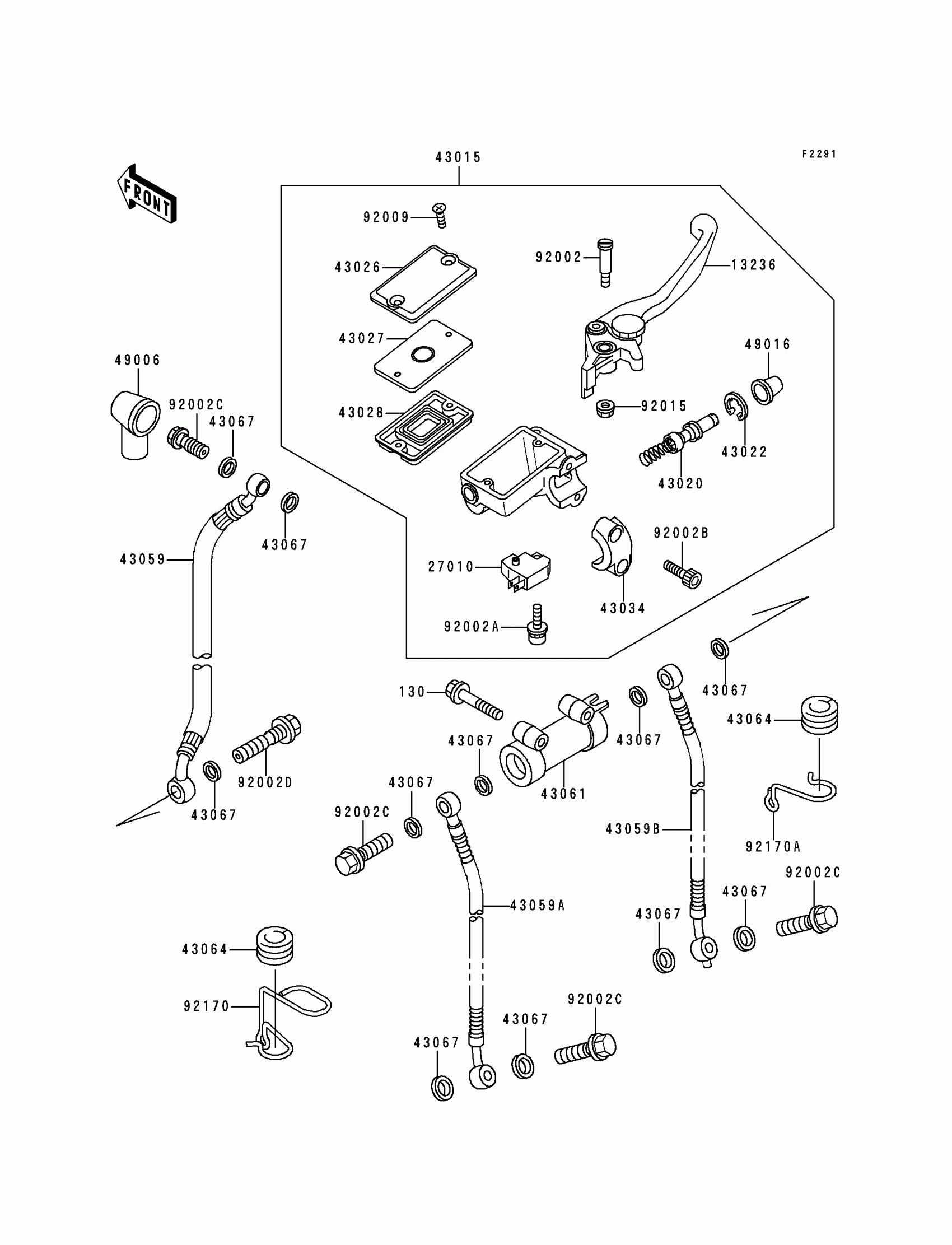

2000 Kawasaki ZRX1100 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X40

130J0640

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1185

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1637

1
Out of stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1076

1

$43.44

In stock

43027

PLATE-DIAPHRAGM

43027-1055

1

$7.68

In stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059

HOSE-BRAKE,FR,UPP

43059-1986

1

$92.26

In stock

43059A

1

$98.38

In stock

43059B

HOSE-BRAKE,FR,LWR,RH

43059-1988

1
Out of stock

43061

JOINT-BRAKE

43061-1002

1

$73.52

In stock

43064

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002B

1

$7.54

In stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002D

BOLT,OIL,L=37

92002-1909

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92170

CLAMP,HOSE

92170-1737

1

$17.31

In stock

92170A

CLAMP,HOSE

92170-1738

1

$13.14

In stock
