2000 Kawasaki ZRX1100 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

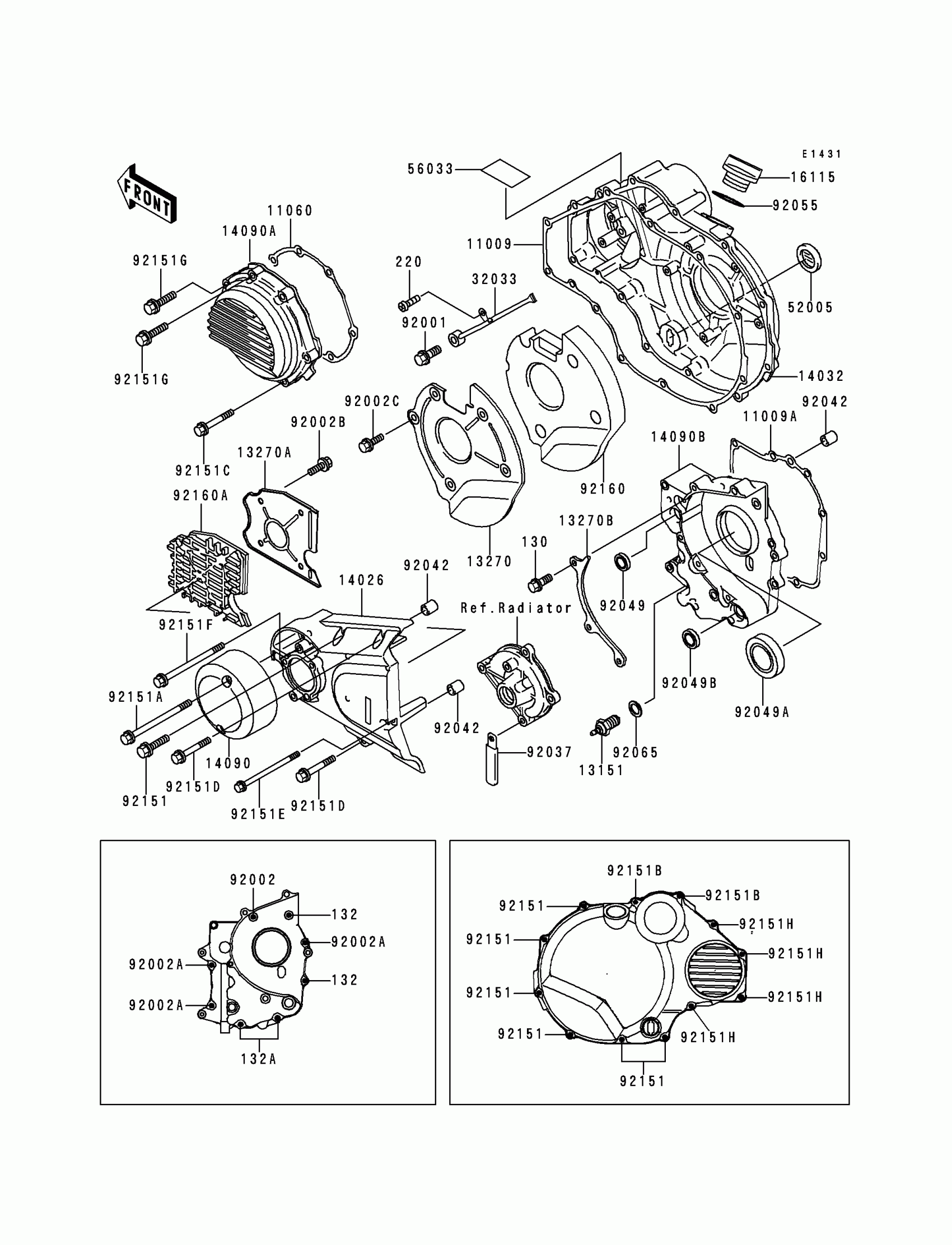

2000 Kawasaki ZRX1100 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130S0614

1
Out of stock

11009

GASKET,CLUTCH COVER

11009-1860

1
Out of stock

11009A

GASKET,TRANSMISSION COVER

11009-1982

1
Out of stock

11060

GASKET,PULSING COVER

11060-1695

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1

$8.20

In stock

13270

PLATE

13270-1765

1
Out of stock

13270A

PLATE

13270-1771

1
Out of stock

13270B

PLATE,TRANSMISSION

13270-1911

1
Out of stock

14026

COVER-CHAIN

14026-1249

1
Out of stock

14032

COVER-CLUTCH

14032-1457

1

$267.27

In stock

14090

COVER,RELEASE

14090-1777

1

$127.93

In stock

14090A

COVER,PULSING

14090-1786

1

$105.45

In stock

14090B

COVER,TRANSMISSION

14090-1877

1

$195.48

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

32033

PIPE,CLUTCH COVER

32033-1204

1

$31.22

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

56033

1

$7.44

In stock

92001

BOLT,BANJO,8X20

92001-1855

1

$8.44

In stock

92002

BOLT,6X20

92002-1343

1

$5.71

In stock

92002A

BOLT,6X25

92002-1344

1
Out of stock

92002B

BOLT,6X10

92002-1449

1

$3.68

In stock

92002C

BOLT,6X10

92002-1541

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92049B

SEAL-OIL,TB13205

92049-1186

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92151

BOLT,6X25

92151-1130

1

$2.06

In stock

92151A

BOLT,6X40

92151-1131

1

$3.87

In stock

92151B

BOLT,6X55

92151-1132

1

$4.32

In stock

92151C

BOLT,6X30

92151-1134

1

$1.81

In stock

92151D

BOLT,6X35

92151-1135

1

$3.33

In stock

92151E

BOLT,6X65

92151-1199

1

$4.32

In stock

92151F

BOLT,6X80

92151-1200

1

$3.27

In stock

92151G

BOLT,6X30

92151-1201

1
Out of stock

92151H

BOLT,6X40

92151-1202

1

$4.59

In stock

92160

DAMPER

92160-1812

1

$74.56

In stock

92160A

DAMPER

92160-1819

1

$46.74

In stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
