2000 Kawasaki ZRX1100 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

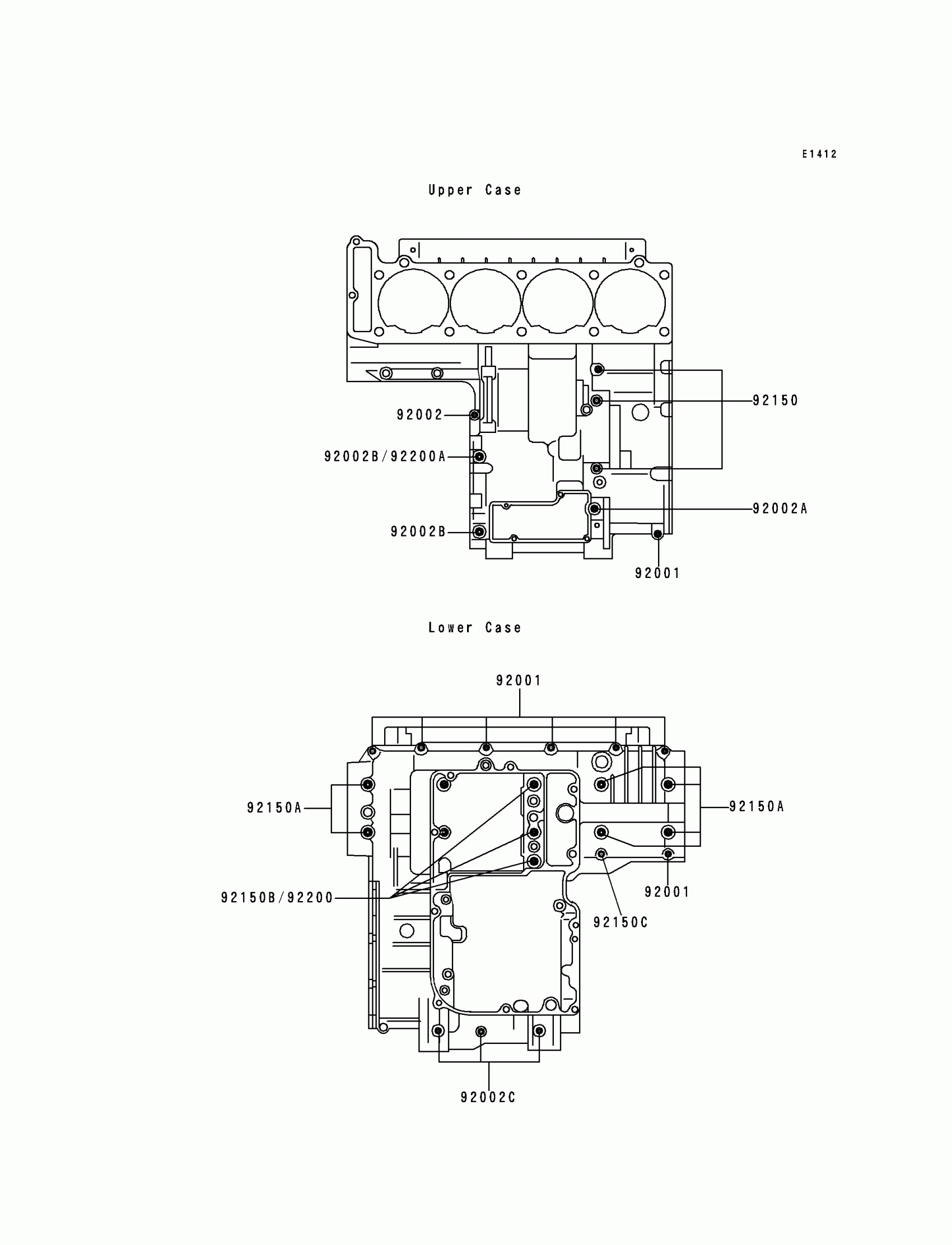

2000 Kawasaki ZRX1100 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92001

BOLT,6X38

92001-1899

1

$3.92

In stock

92002

BOLT,6X55

92002-1054

1
Out of stock

92002A

BOLT,6X85

92002-1306

1

$5.10

In stock

92002B

BOLT,8X63

92002-1308

1

$8.44

In stock

92002C

BOLT,6X120

92002-1654

1
Out of stock

92150

BOLT,6X115

92150-1140

1

$7.14

In stock

92150A

BOLT,9X90

92150-1364

1

$8.44

In stock

92150B

BOLT,9X140

92150-1365

1

$9.68

In stock

92150C

BOLT,7X38

92150-1367

1

$5.76

In stock

92200

WASHER,9.5X18X1.2

92200-1037

1
Out of stock

92200A

WASHER,8.5X16X1.2

92200-1063

1
Out of stock
← Crankcase Crankshaft →
