2000 Kawasaki ZRX1100 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

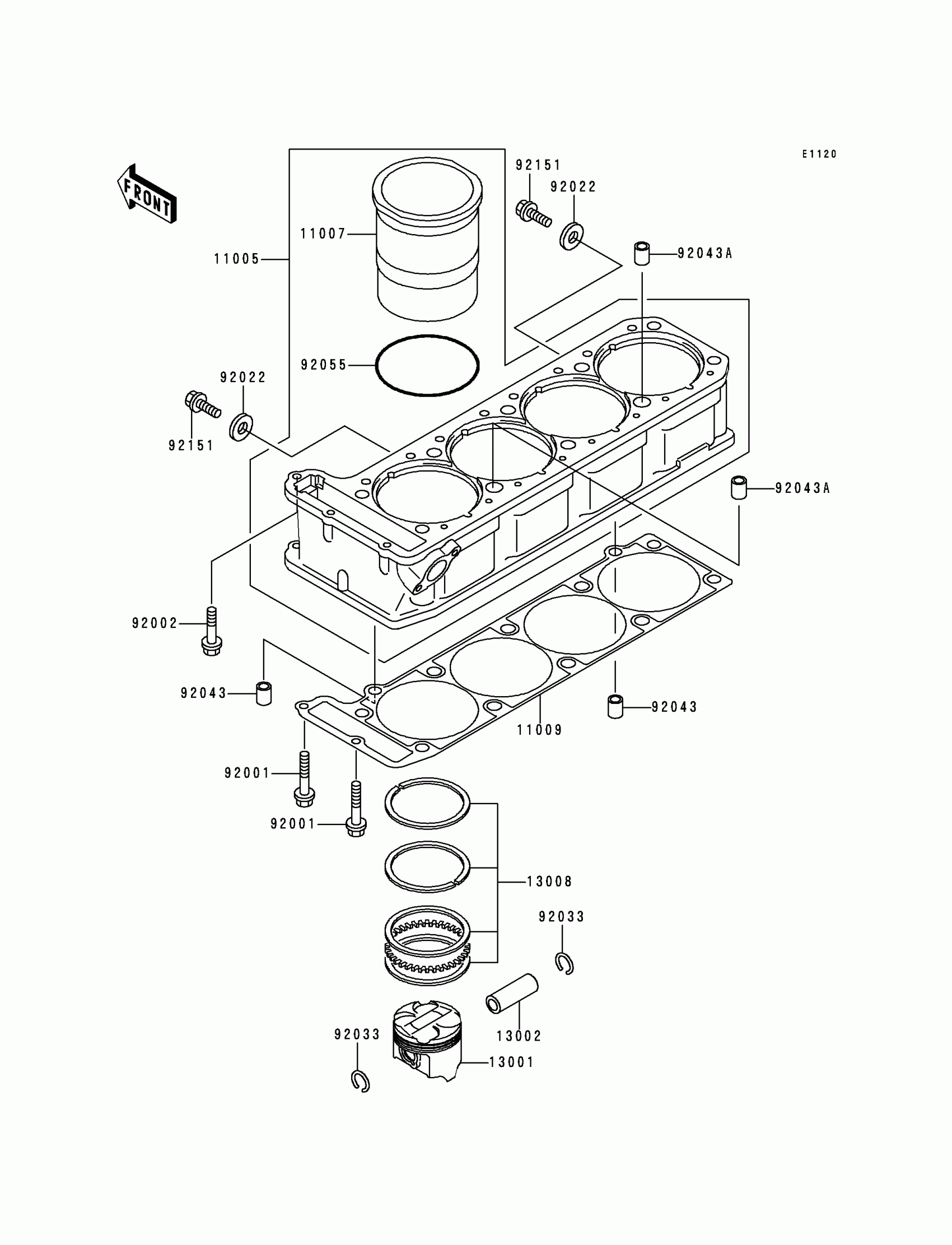

2000 Kawasaki ZRX1100 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1615

1
Out of stock

11007

LINER-CYLINDER

11007-1114

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1847

1
Out of stock

13001

PISTON-ENGINE

13001-1398

1
Out of stock

13002

PIN-PISTON

13002-1058

1
Out of stock

13008

RING-SET-PISTON

13008-1152

1
Out of stock

92001

BOLT,6X38

92001-1899

1
Out of stock

92002

BOLT,FLANGED,M6X30

92002-1138

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP,20.5X1.2

92033-1099

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92043A

PIN,11.5X14X14

92043-1279

1
Out of stock

92055

RING-O,82.6X2.4

92055-1465

1
Out of stock

92151

BOLT,6X10

92151-1344

1
Out of stock
