2000 Kawasaki ZRX1100 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

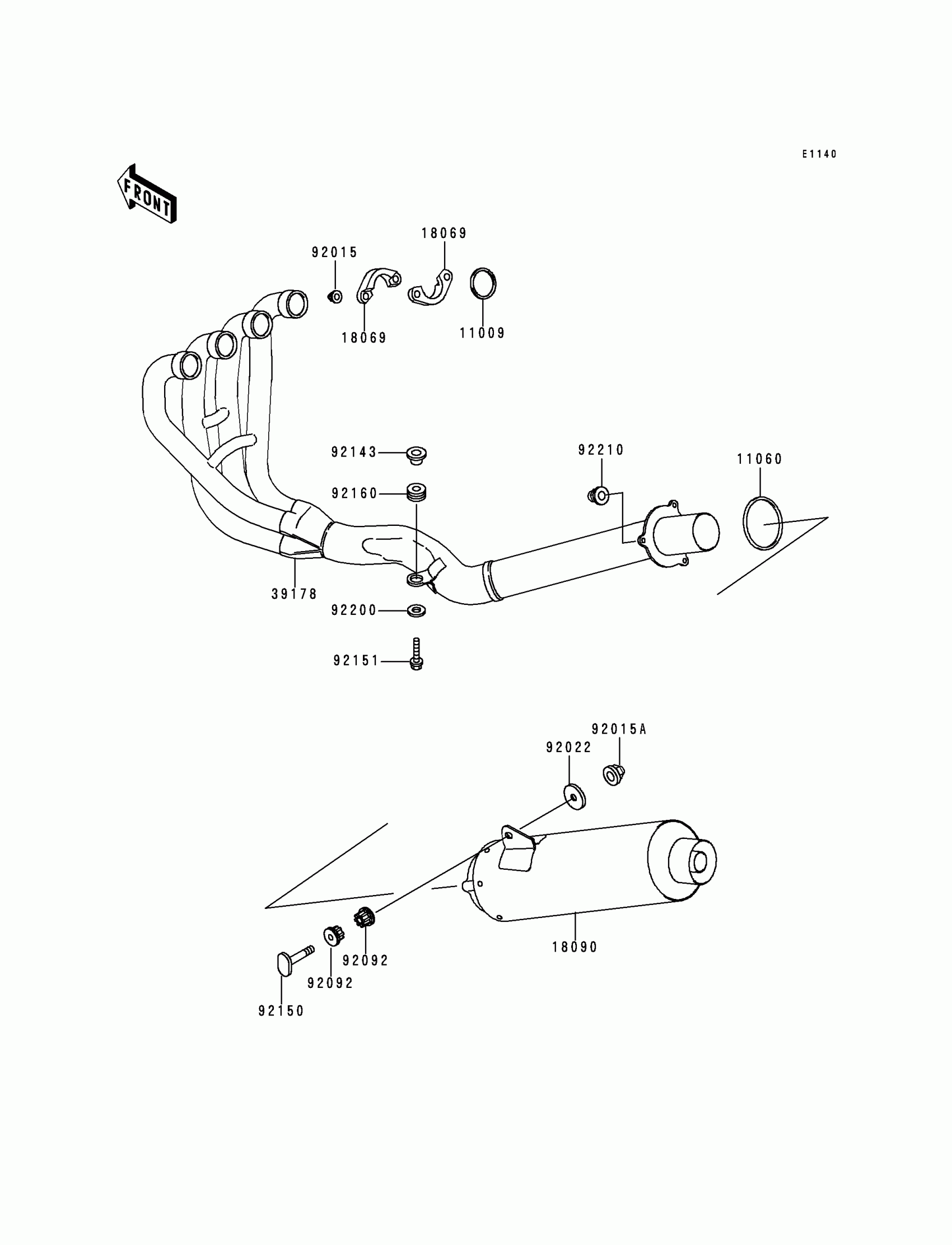

2000 Kawasaki ZRX1100 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$6.49

In stock

11060

1

$24.34

In stock

18069

HOLDER-EXHAUST PIPE

18069-1139

1

$34.86

In stock

18090

BODY-COMP-MUFFLER

18090-1677

1

$1,105.79

In stock

39178

MANIFOLD-COMP-EXHAUST

39178-1256

1
Out of stock

92015

NUT,LOCK,8MM

92015-1380

1

$3.46

In stock

92015A

NUT,10MM

92015-1649

1

$3.95

In stock

92022

WASHER,10.5X26X2.3

92022-246

1
Out of stock

92092

1

$13.70

In stock

92143

COLLAR

92143-1709

1

$7.14

In stock

92150

BOLT,10X55

92150-1792

1

$8.44

In stock

92151

BOLT,8X35

92151-1208

1

$4.17

In stock

92160

DAMPER,MUFFLER

92160-1543

1

$3.59

In stock

92200

WASHER,9X28X2.3

92200-1374

1
Out of stock

92210

NUT

92210-1127

1
Out of stock
