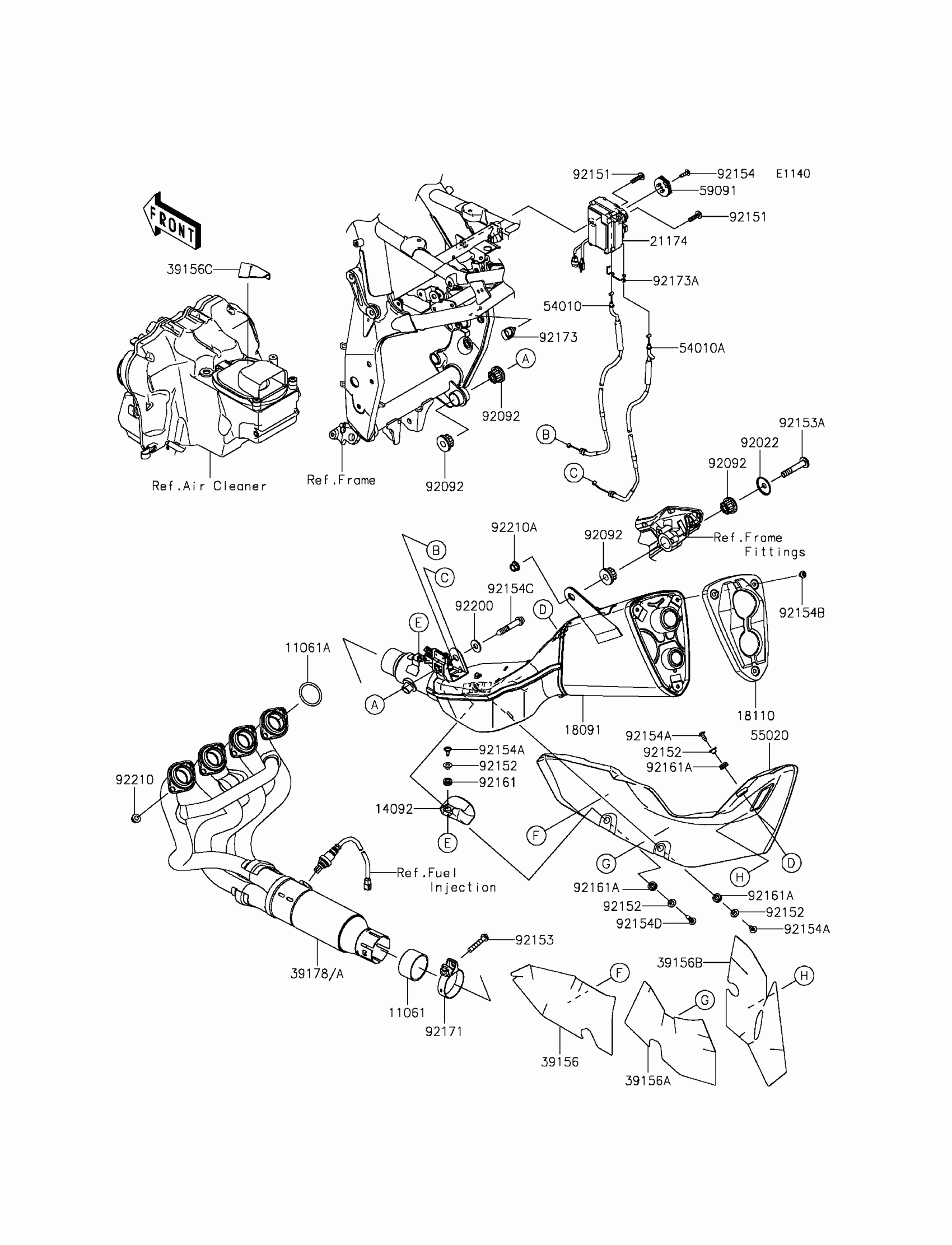

Kawasaki ZR800 (European) Muffler(s) Diagram

#

Description
Price

11061

GASKET,MUFFLER-EX

11061-0800

$32.50

11061A

GASKET,CYL HED-EX

11061-0823

$10.56

14092

COVER,PULLEY

14092-0949

$42.68

18091

BODY-COMP-MUFFLER

18091-0908

Unavailable

18110

BODY END-MUFFLER

18110-0157

$130.97

21174

MOTOR-ELECTRIC

21174-0008

Unavailable

39156

PAD,FRONT

39156-0885

$10.63

39156A

PAD,MID

39156-0886

$10.63

39156B

PAD,REAR

39156-0887

$12.73

39156C

PAD,AIR FILTER

39156-0946

$4.42

39178A

MANIFOLD-COMP-EXHAUST

39178-0225

$1,373.39

54010

CABLE,OPEN

54010-0586

$84.95

54010A

CABLE,CLOSE

54010-0587

$84.95

55020

GUARD,MUFFLER

55020-0838

$244.00

59091

PULLEY

59091-0007

$20.88

92022

WASHER

92022-289

$12.40

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$16.04

92151

BOLT,SOCKET,6X25

92151-1611

$1.68

92152

COLLAR,6.3X8.3X16

92152-1602

$2.84

92153

BOLT,8X45

92153-0702

$2.76

92153A

BOLT,SOCKET,10X58

92153-1930

$8.46

92154

BOLT,TORX,5X18

92154-0217

$3.27

92154A

BOLT,SOCKET,6X14

92154-0856

$1.43

92154B

BOLT,HEX HEAD,6X8

92154-0987

$1.66

92154C

BOLT,SOCKET,10X60

92154-1191

$9.83

92154D

BOLT,SOCKET,6X27

92154-1192

Unavailable

92161

DAMPER,PULLEY COVER

92161-0999

$4.75

92161A

DAMPER

92161-1475

$4.04

92171

CLAMP

92171-0133

$16.11

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0921

$3.29

92200

WASHER,10.5X25X2.0

92200-1377

$3.19

92210

NUT,8MM

92210-0076

$4.15

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
