2015 Kawasaki ZR800 (European) Crankcase Diagram

← All diagrams

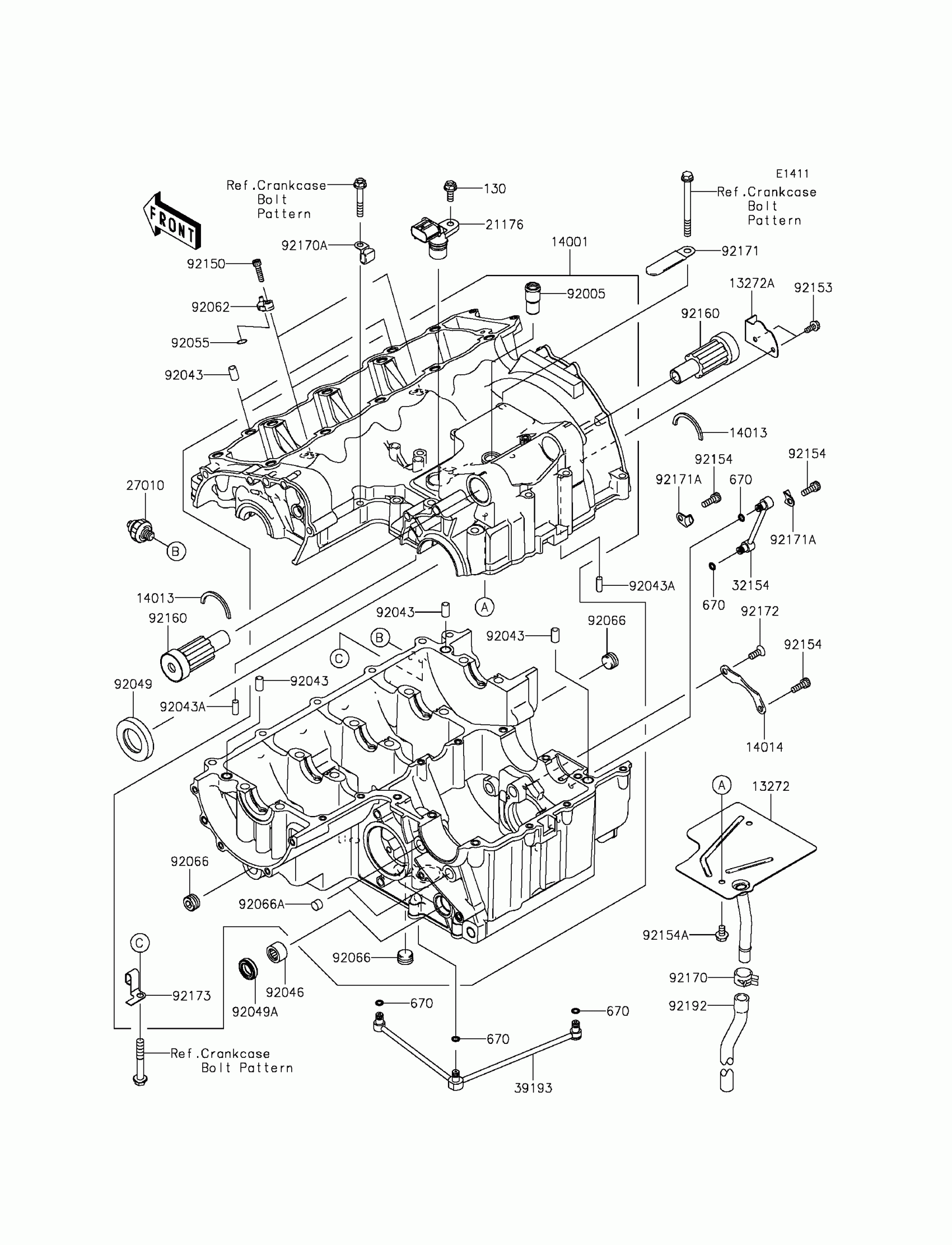

Find the part on the Crankcase diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki ZR800 (European) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CC0616

1
Out of stock

670

O RING

670D1505

1
Out of stock

13272

PLATE,BREATHER UPPER

13272-1254

1
Out of stock

13272A

PLATE,BREATHER SIDE

13272-1255

1
Out of stock

14001

SET-CRANKCASE

14001-0616

1
Out of stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION

14014-0563

1
Out of stock

21176

SENSOR,SPEED

21176-0054

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32154

PIPE,RH

32154-1493

1
Out of stock

39193

PIPE-OIL

39193-0014

1
Out of stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,6X16

92043-1690

1
Out of stock

92046

BEARING-NEEDLE,HK1412FM

92046-0043

1
Out of stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,5.5X1.5

92055-1343

1
Out of stock

92062

NOZZLE,OIL JET

92062-0022

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG

92066-1110

1
Out of stock

92150

BOLT,SOCKET,5X20

92150-1019

1
Out of stock

92153

BOLT,FLANGED,5X12

92153-0753

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock

92154A

BOLT,FLANGED,6X10

92154-0356

1
Out of stock

92160

DAMPER

92160-1868

1
Out of stock

92170

CLAMP

92170-1118

1
Out of stock

92170A

CLAMP

92170-1577

1
Out of stock

92171

CLAMP

92171-0092

1
Out of stock

92171A

CLAMP,OIL PIPE

92171-1595

1
Out of stock

92172

SCREW,6X16

92172-0090

1
Out of stock

92173

CLAMP

92173-1034

1
Out of stock

92192

TUBE,BREATHER

92192-1104

1
Out of stock
