2015 Kawasaki ZR800 (European) Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

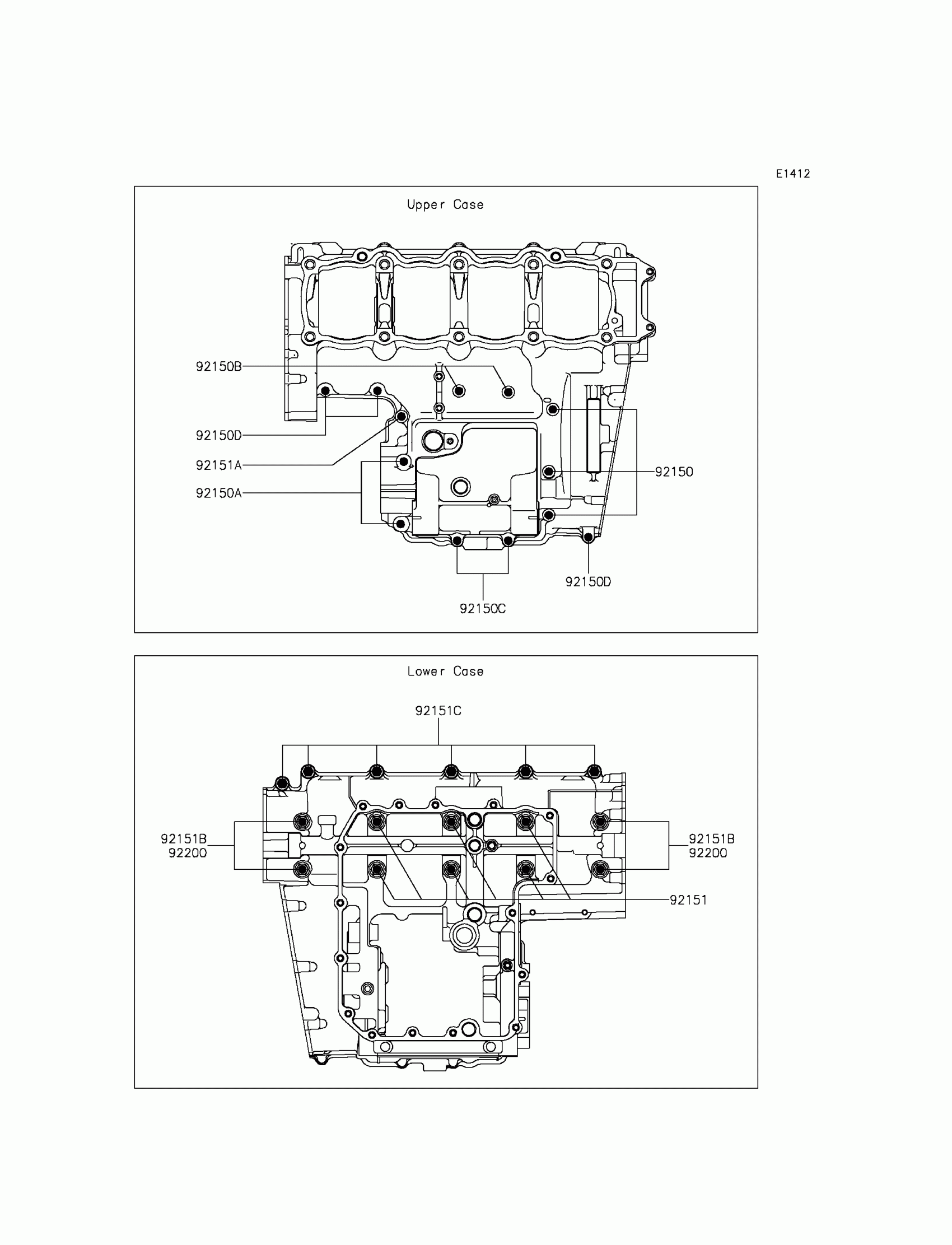

2015 Kawasaki ZR800 (European) Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,FLANGED,7X85

92150-1251

1
Out of stock

92150A

BOLT,8X70

92150-1483

1
Out of stock

92150B

BOLT,6X60

92150-1548

1
Out of stock

92150C

BOLT,6X90

92150-1622

1
Out of stock

92150D

BOLT,6X40

92150-1794

1
Out of stock

92151

BOLT,9X81

92151-1222

1
Out of stock

92151A

BOLT,FLANGED,7X50

92151-1223

1
Out of stock

92151B

BOLT,FLANGED,9X95

92151-1378

1
Out of stock

92151C

BOLT,FLANGED,7X45

92151-1539

1
Out of stock

92200

WASHER,9.2X19X2.3

92200-0115

1
Out of stock
