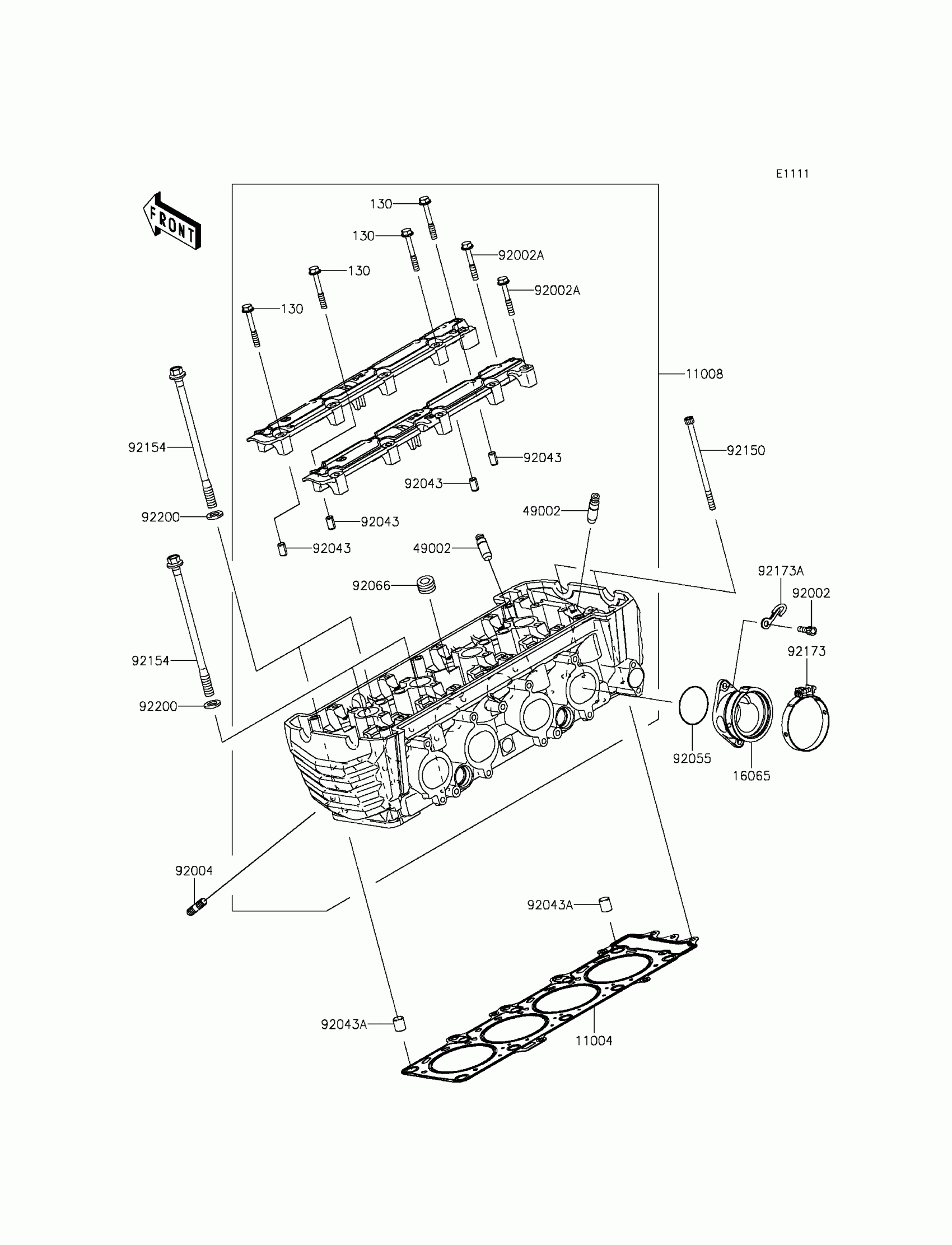

Kawasaki ZR800 (European) Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X45

130CA0645

$1.11

11004

GASKET-HEAD

11004-0727

$109.35

11008

HEAD-COMP-CYLINDER

11008-0755

$2,678.68

16065

HOLDER-CARBURETOR

16065-0121

$39.39

49002

GUIDE-VALVE

49002-1152

$31.83

92002

BOLT,6X16

92002-1143

$2.99

92002A

BOLT,6X40

92002-1756

$3.57

92004

STUD

92004-0050

$3.19

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,43.7X1.9

92055-0737

$7.02

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92150

BOLT,SOCKET,6X110

92150-1755

$10.68

92154

BOLT,FLANGED,10X165

92154-1086

$10.99

92173

CLAMP,62MM

92173-0922

$7.71

92173A

CLAMP

92173-0929

$3.29

92200

WASHER,10.5X19X2.3

92200-0363

$2.98
