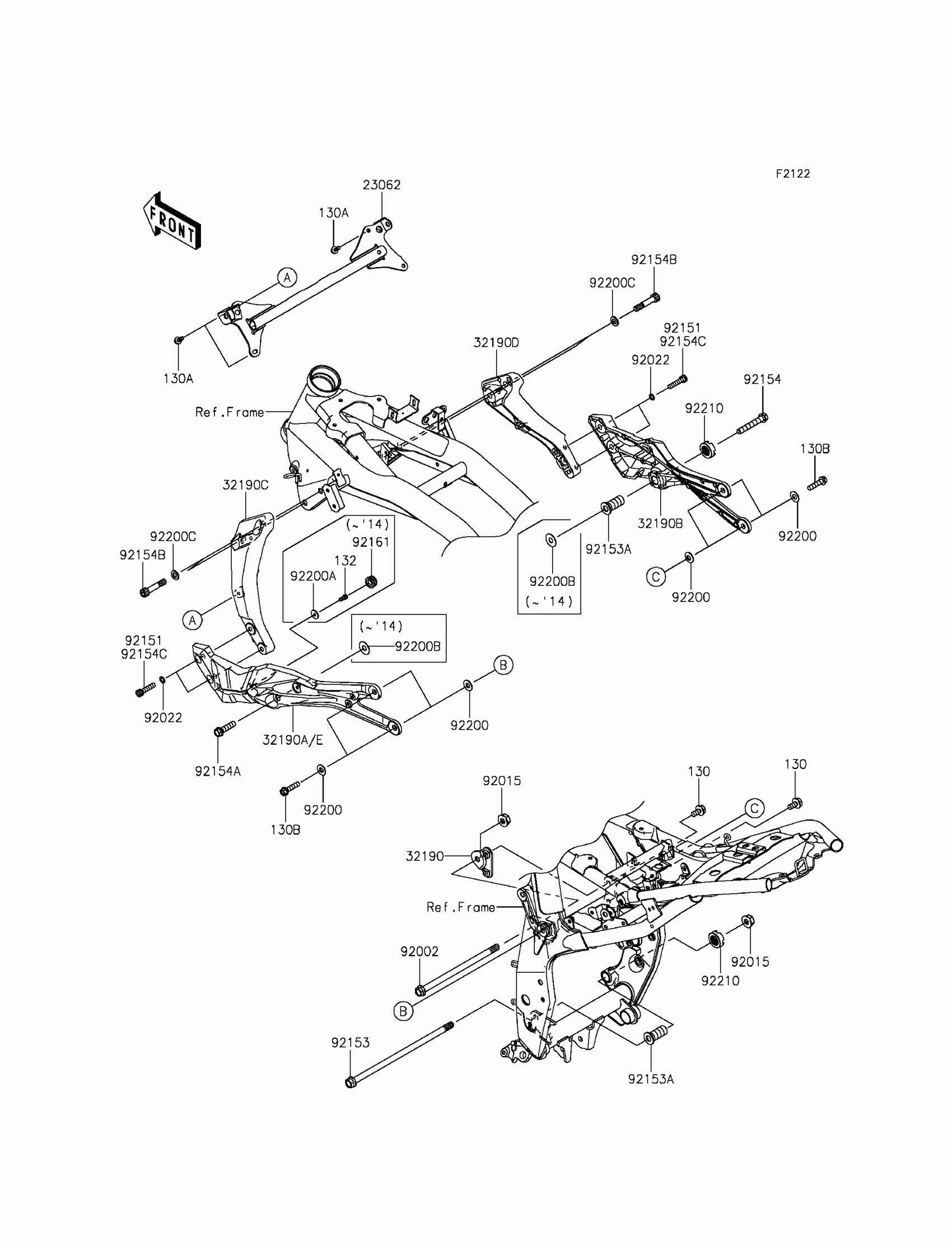

Kawasaki ZR800 (European) Engine Mount Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130BB0816

$1.27

130A

BOLT-FLANGED,6X18

130CB0618

Unavailable

130B

BOLT-FLANGED,8X35

130CB0835

$4.00

23062

BRACKET-COMP,ENGINE

23062-0776

$126.17

32190

BRACKET-ENGINE,RR,RH,UPP

32190-0603

$12.19

32190B

BRACKET-ENGINE,RR,RH,F.S.BLACK

32190-0620-18R

Unavailable

32190C

BRACKET-ENGINE,FR,LH,F.S.BLACK

32190-0635-18R

$184.32

32190D

BRACKET-ENGINE,FR,RH,F.S.BLACK

32190-0636-18R

$184.32

32190E

BRACKET-ENGINE,RR,LH,F.S.BLACK

32190-0683-18R

$221.36

92002

BOLT,10X183

92002-1337

$14.88

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92022

WASHER,8.5X13X1

92022-1028

$2.99

92153

BOLT,FLANGED,10X240

92153-0559

$30.02

92153A

BOLT,ENGINE MOUNT,18MM

92153-1098

$23.12

92154

BOLT,FLANGED,10X65

92154-0312

$5.85

92154A

BOLT,FLANGED,10X40

92154-0313

$4.24

92154B

BOLT,SOCKET,10X50

92154-0729

Unavailable

92154C

BOLT,SOCKET,8X35

92154-1708

$2.27

92200

WASHER,10X22X3

92200-0832

$2.71

92200C

WASHER,10.5X19X2.3

92200-1042

$2.99

92210

NUT,18MM

92210-1203

$13.40
