1995 Kawasaki ZR1100 Zephyr Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

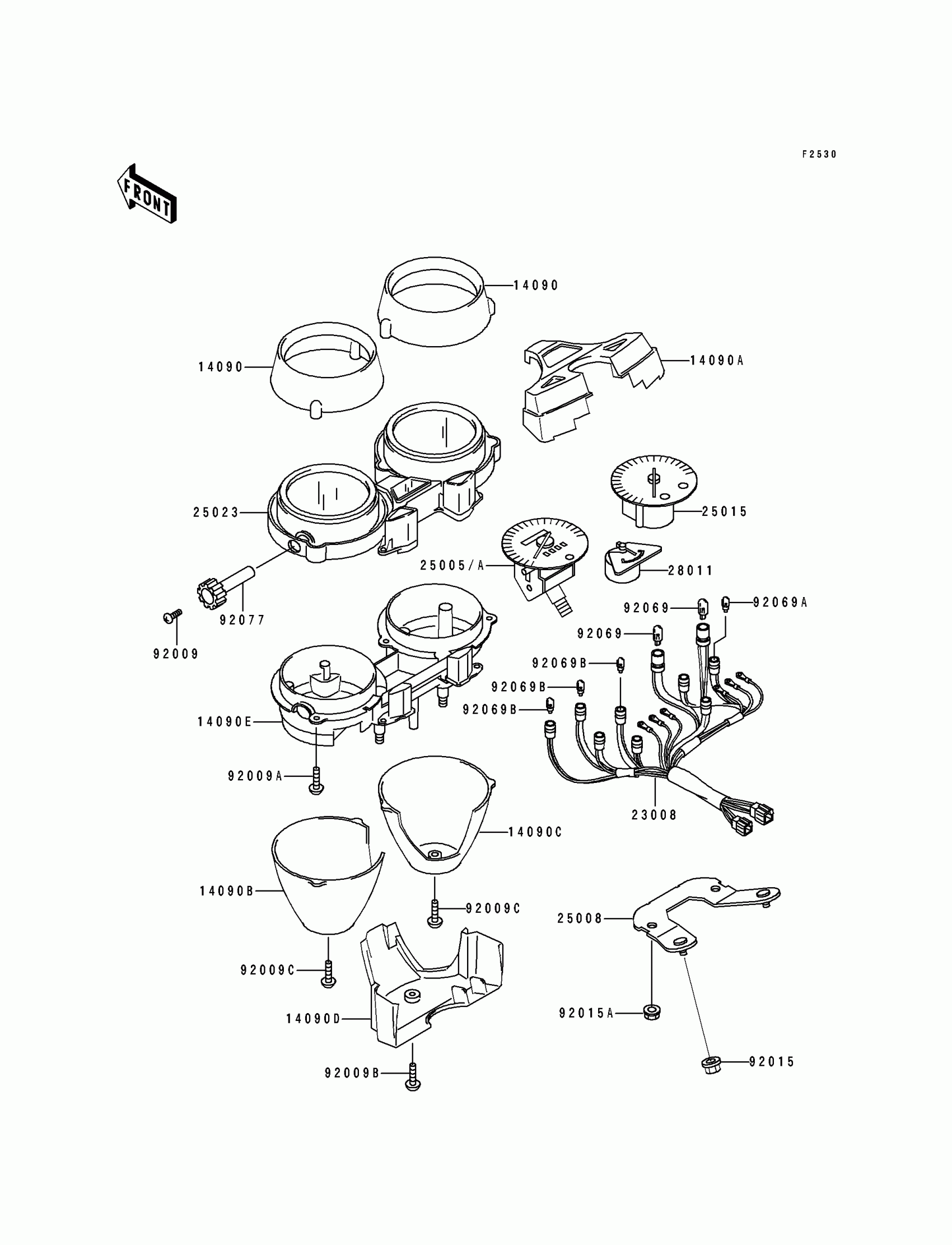

1995 Kawasaki ZR1100 Zephyr Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14090

1

$34.00

In stock

14090A

COVER,PILOT BOX,UPP

14090-1185

1
Out of stock

14090B

COVER,SPEEDOMETER,LWR

14090-1186

1
Out of stock

14090C

COVER,TACHOMETER,LWR

14090-1187

1
Out of stock

14090D

COVER,PILOT BOX,LWR

14090-1188

1
Out of stock

14090E

COVER,INNER CASE

14090-1189

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1495

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1510

1
Out of stock

25008

BRACKET-METER

25008-1190

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1312

1
Out of stock

25023

COVER-METER CASE

25023-1196

1
Out of stock

28011

METER,FUEL

28011-1124

1
Out of stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92009B

SCREW,TAPPING,4X14

92009-1593

1
Out of stock

92009C

SCREW,TAPPING,4X16

92009-1601

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92069A

BULB,14V 3W,T6.5

92069-1068

1
Out of stock

92069B

BULB,12V 1.7W,T6.5

92069-1070

1
Out of stock

92077

KNOB,METER

92077-1073

1
Out of stock
