1995 Kawasaki ZR1100 Zephyr Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

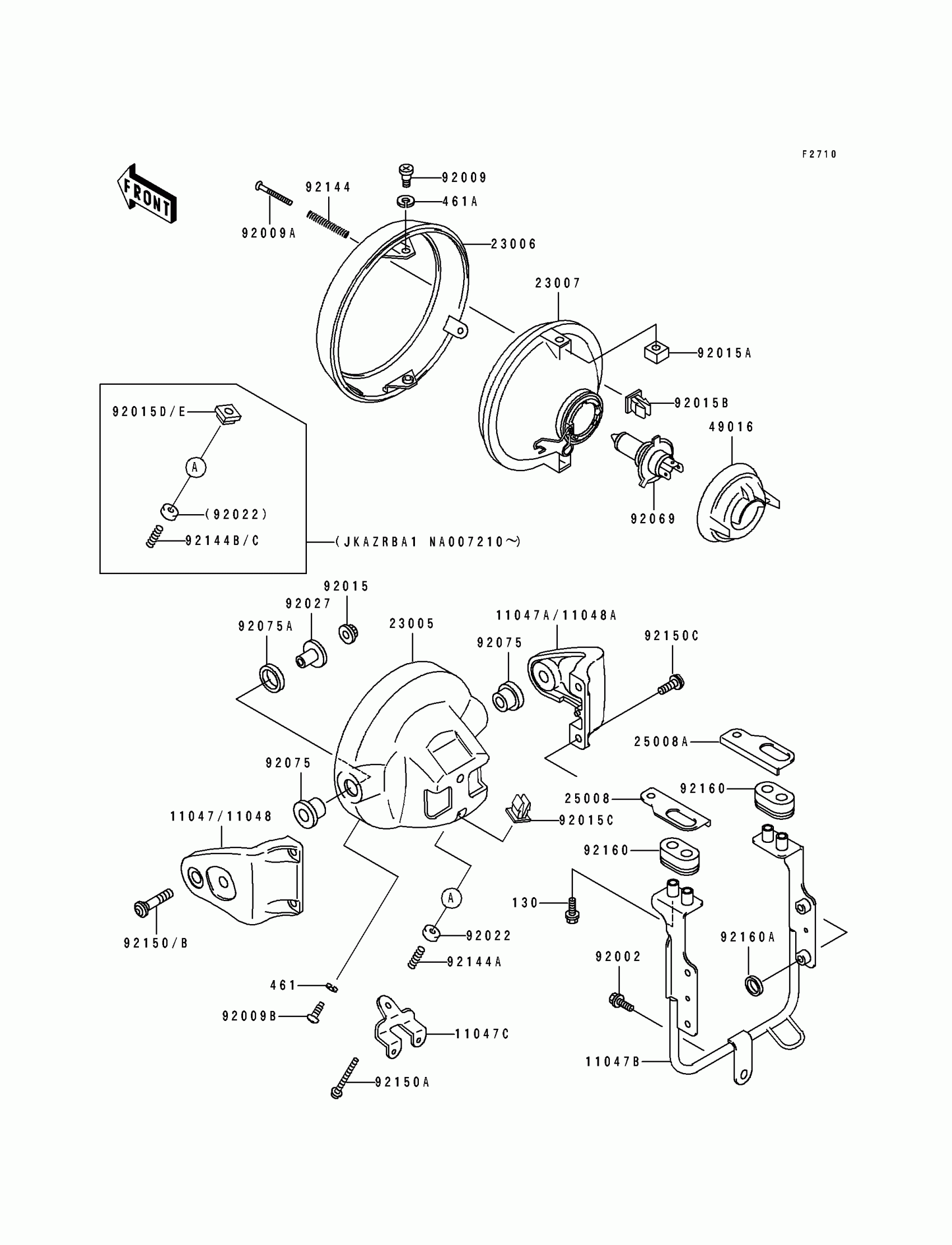

1995 Kawasaki ZR1100 Zephyr Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047B

BRACKET,HEAD LAMP

11047-1602

1
Out of stock

11047C

BRACKET,HEAD LAMP BODY

11047-1639

1
Out of stock

11048

BRACKET,HEAD LAMP,LH

11048-1319

1
Out of stock

11048A

BRACKET,HEAD LAMP,RH

11048-1320

1
Out of stock

23005

BODY-COMP-HEAD LAMP,P.C.GRAY

23005-1124-T2

1
Out of stock

23006

RIM-LAMP

23006-1064

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1277

1
Out of stock

25008

BRACKET-METER,LH

25008-1187

1
Out of stock

25008A

BRACKET-METER,RH

25008-1188

1
Out of stock

49016

COVER-SEAL,HEAD LAMP

49016-1158

1
Out of stock

92002

BOLT

92002-1626

1
Out of stock

92009

SCREW,5MM

92009-1681

1
Out of stock

92009A

SCREW,FOCUS ADJUSTING,4X45

92009-1682

1
Out of stock

92009B

SCREW,5X16

92009-1693

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1877

1
Out of stock

92015B

NUT,SELF LOCK,4MM

92015-1878

1
Out of stock

92015D

NUT,5MM

92015-1897

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR,L=20

92027-1131

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER,HEAD LAMP FITTING

92075-1109

1
Out of stock

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

1
Out of stock

92144

SPRING,FOCUS ADJUSTING

92144-1645

1
Out of stock

92144B

SPRING,FOCUS ADJUSTING

92144-1703

1
Out of stock

92150A

BOLT,ADJUST,5X53

92150-1627

1
Out of stock

92150B

BOLT,SOCKET,8X40

92150-1735

1
Out of stock

92150C

BOLT,SOCKET,6X14

92150-1836

1
Out of stock

92160

DAMPER,METER

92160-1315

1
Out of stock

92160A

DAMPER

92160-3754

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

461A

WASHER-SPRING

461L0600

1
Out of stock
