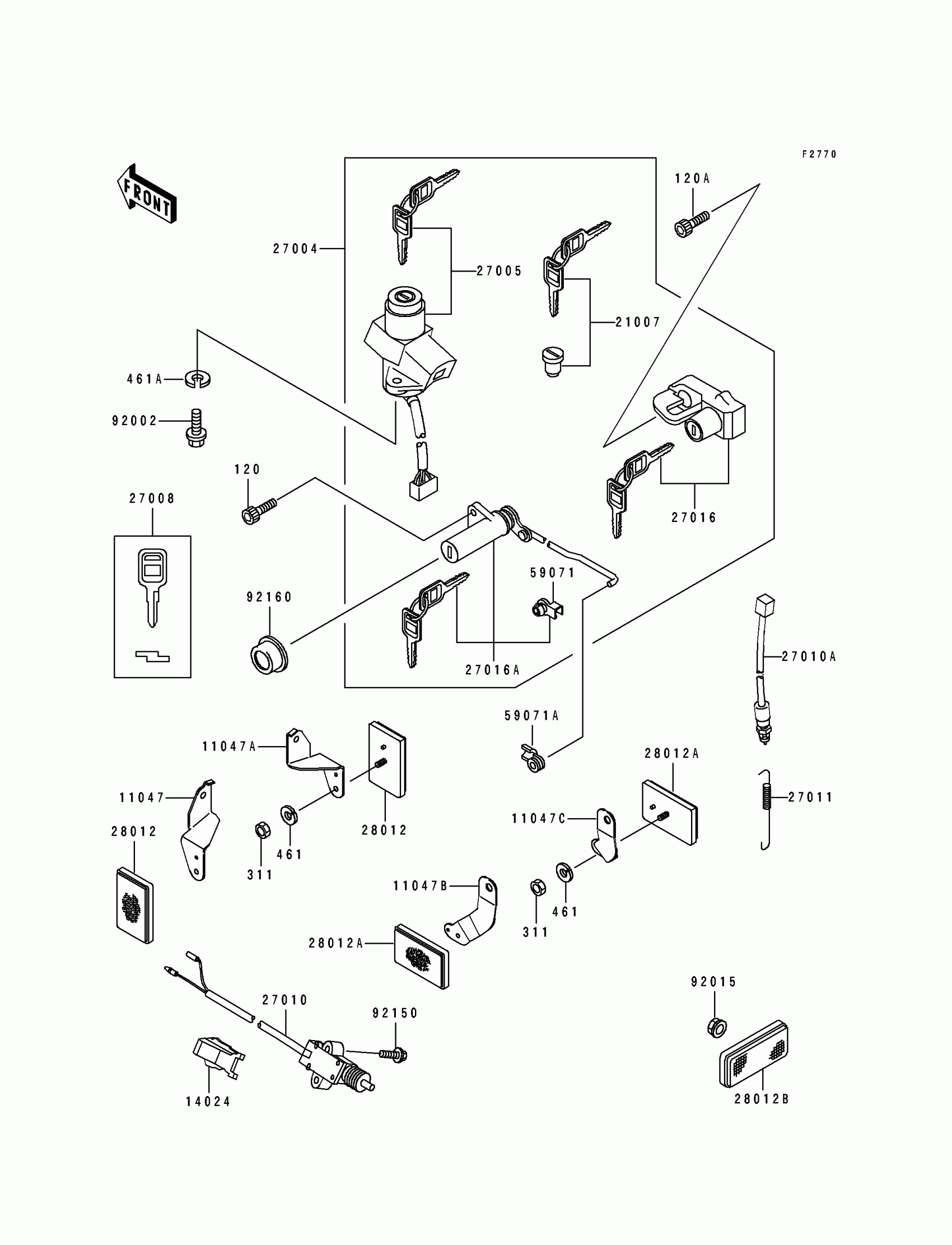

Kawasaki ZR1100 Zephyr Ignition Switch/Locks/Reflectors Diagram

Description

Price

11047

BRACKET,REFLECTOR,FR,LH

11047-1628

Unavailable

11047A

BRACKET,REFLECTOR,FR,RH

11047-1629

Unavailable

11047B

BRACKET,REFLECTOR,RR,LH

11047-1630

Unavailable

11047C

BRACKET,REFLECTOR,RR,RH

11047-1631

Unavailable

14024

COVER,SIDE STAND SWITCH

14024-1532

$8.88

21007

ROTOR,LOCK,TANK CAP

21007-5033

$48.08

27004

SWITCH-ASSY

27004-5428

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-5097

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,SIDE STAND

27010-1226

$73.52

27010A

SWITCH,BRAKE LAMP

27010-1309

Unavailable

27011

SPRING,BRAKE LAMP SWITCH

27011-006

$4.14

27016

LOCK-ASSY,HELMET

27016-5175

$43.07

27016A

LOCK-ASSY,SEAT

27016-5191

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1054

$18.15

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

59071

JOINT

59071-1103

$6.62

59071A

JOINT

59071-1125

$8.88

92002

BOLT,TORX,6X16

92002-1333

$1.85

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92150

BOLT,SOCKET,5X22

92150-1491

$3.03

92160

DAMPER,SEAT LOCK

92160-1346

Unavailable

120

BOLT-SOCKET

120P0512

Unavailable

120A

BOLT-SOCKET,6X20

120S0620

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER-SPRING

461L0600

$0.66
