1995 Kawasaki ZR1100 Zephyr Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

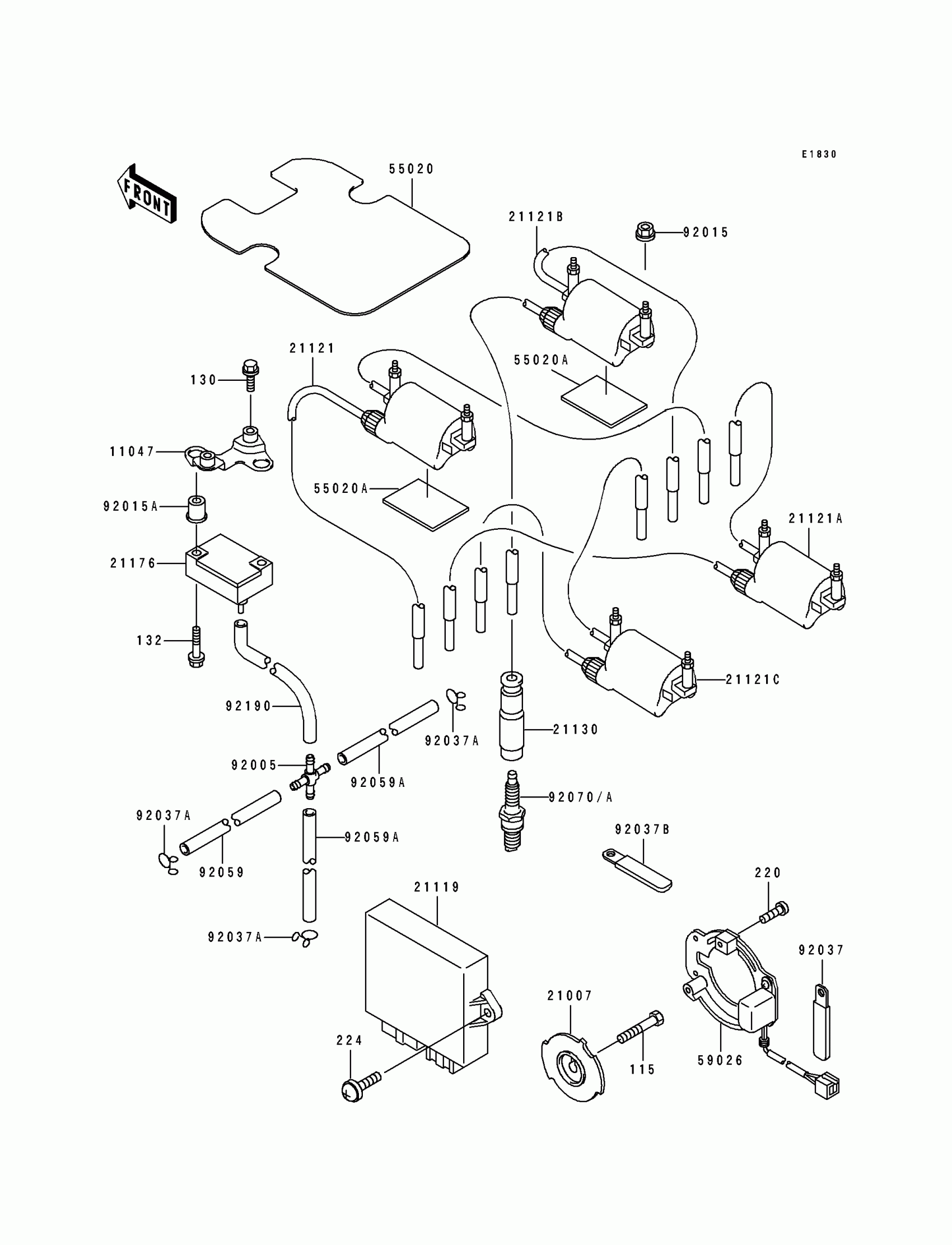

1995 Kawasaki ZR1100 Zephyr Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET

11047-1737

1
Out of stock

21007

ROTOR,PULSING COIL

21007-1246

1
Out of stock

21119

IGNITER

21119-1348

1
Out of stock

21121

COIL-IGNITION,#1,FR

21121-1208

1
Out of stock

21121A

COIL-IGNITION,#1,RR

21121-1209

1
Out of stock

21121B

COIL-IGNITION,#2,FR

21121-1210

1
Out of stock

21121C

COIL-IGNITION,#2,RR

21121-1211

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

21176

SENSOR,BOOST

21176-1066

1
Out of stock

55020

GUARD,HEAT

55020-1443

1
Out of stock

55020A

GUARD,HEAT

55020-1444

1
Out of stock

59026

COIL-PULSING

59026-1112

1
Out of stock

92005

FITTING,TUBE,X-TYPE

92005-1051

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92037B

CLAMP

92037-1993

1
Out of stock

92059

TUBE,4X9X155

92059-1033

1
Out of stock

92059A

TUBE,4X9X100

92059-1058

1
Out of stock

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

1
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92190

TUBE

92190-1317

1
Out of stock

115

BOLT-SMALL-UPSET,8X30

115G0830

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

220

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0616

1
Out of stock
