1987 Kawasaki ZL600 Eliminator Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

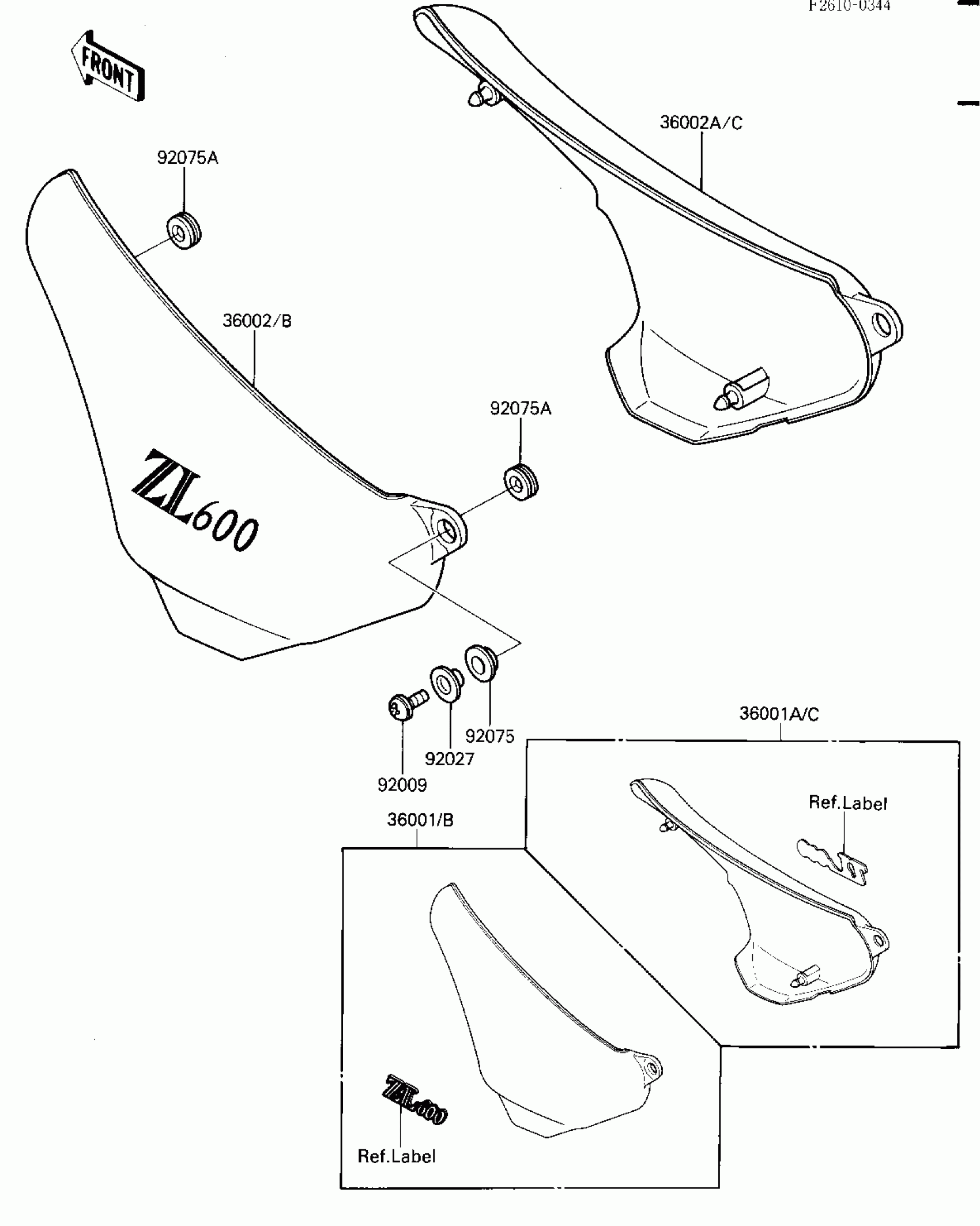

1987 Kawasaki ZL600 Eliminator Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,C.W.RED

36001-1332-H3

1

$157.73

In stock

36001A

COVER-SIDE,LH,EBONY

36001-1332-H8

1
Out of stock

36001B

COVER-SIDE,RH,C.W.RED

36001-1333-H3

1

$157.73

In stock

36001C

COVER-SIDE,RH,EBONY

36001-1333-H8

1
Out of stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92027

COLLAR,L=9.1,BLACK

92027-1935

1

$5.10

In stock

92075

DAMPER

92075-1244

1

$4.41

In stock

92075A

DAMPER

92075-1629

1

$3.97

In stock
