1987 Kawasaki ZL600 Eliminator Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

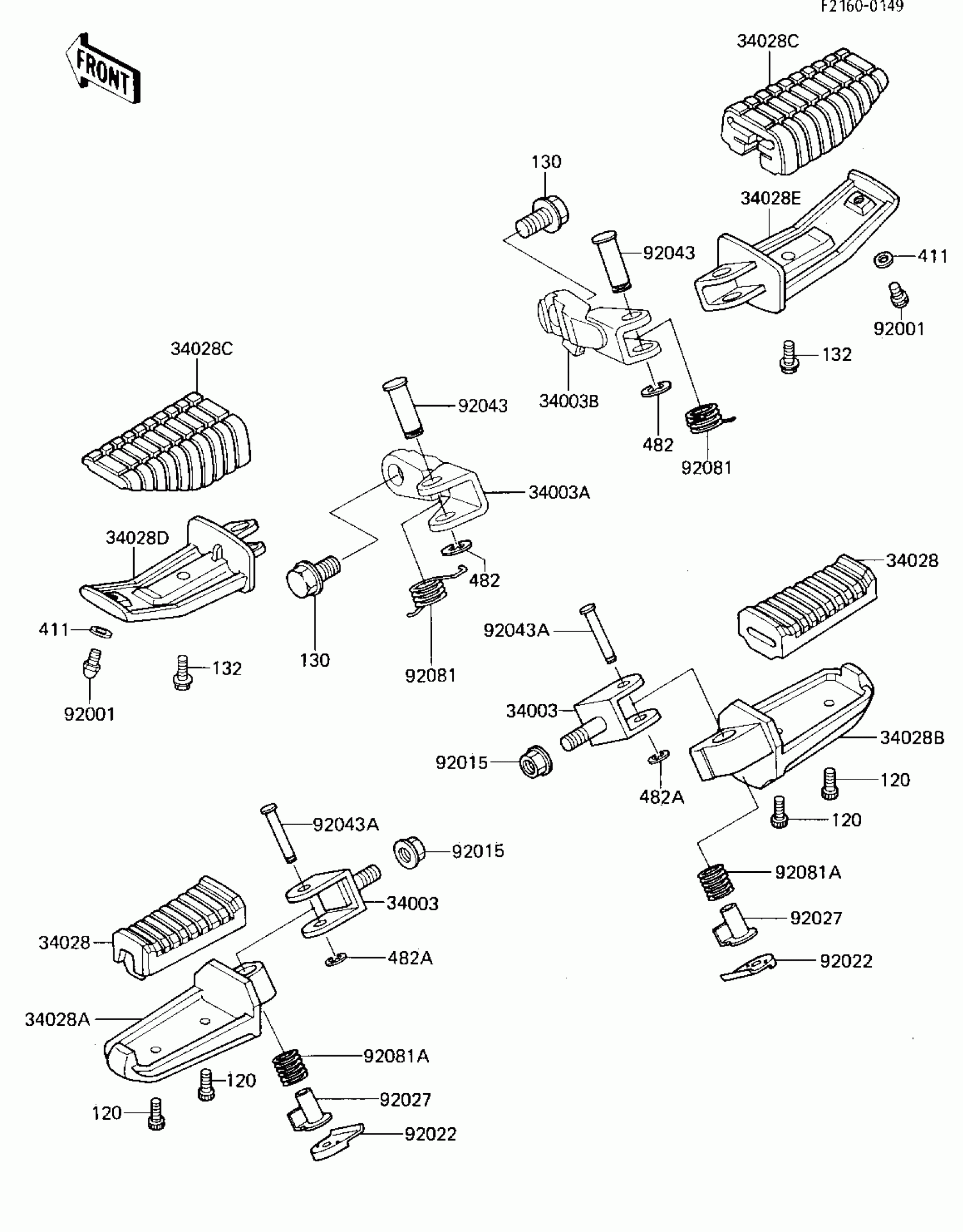

1987 Kawasaki ZL600 Eliminator Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RR

34003-1240

1

$32.15

In stock

34003A

HOLDER-STEP,FR,LH

34003-1257

1
Out of stock

34003B

HOLDER-STEP,FR,RH

34003-1277

1
Out of stock

34028

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028A

STEP,RR,LH

34028-1158

1
Out of stock

34028B

STEP,RR,RH

34028-1159

1
Out of stock

34028C

STEP,FR,RUBBER

34028-1164

1

$23.37

In stock

34028D

STEP,FR,LH

34028-1162

1
Out of stock

34028E

STEP,FR,RH

34028-1163

1
Out of stock

92001

BOLT,BANK SENSOR

92001-1905

1

$7.22

In stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,STEP,RR

92022-1507

1

$4.61

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X37

92043-1144

1

$8.90

In stock

92043A

PIN,6X35.5

92043-1294

1

$9.29

In stock

92081

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92081A

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

120

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

130

BOLT-FLANGED

130C1220

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

482

1

$0.98

In stock

482A

1

$1.20

In stock
