1987 Kawasaki ZL600 Eliminator Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

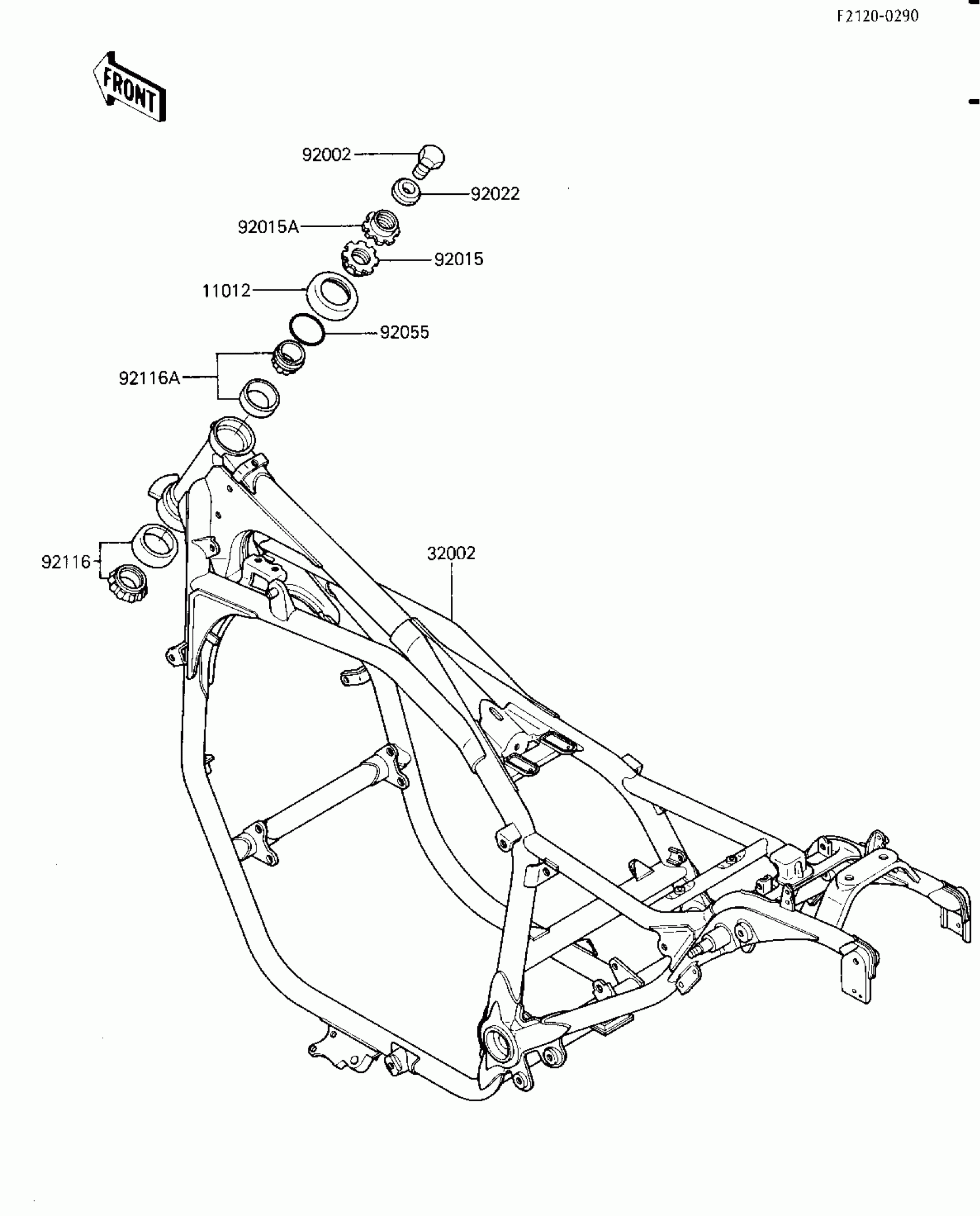

1987 Kawasaki ZL600 Eliminator Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-017

1

$5.37

In stock

32002

FRAME-COMP

32002-1880

1

$2,086.62

In stock

92002

BOLT,14X25

92002-1611

1
Out of stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92022

WASHER

92200-1140

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$50.97

In stock
