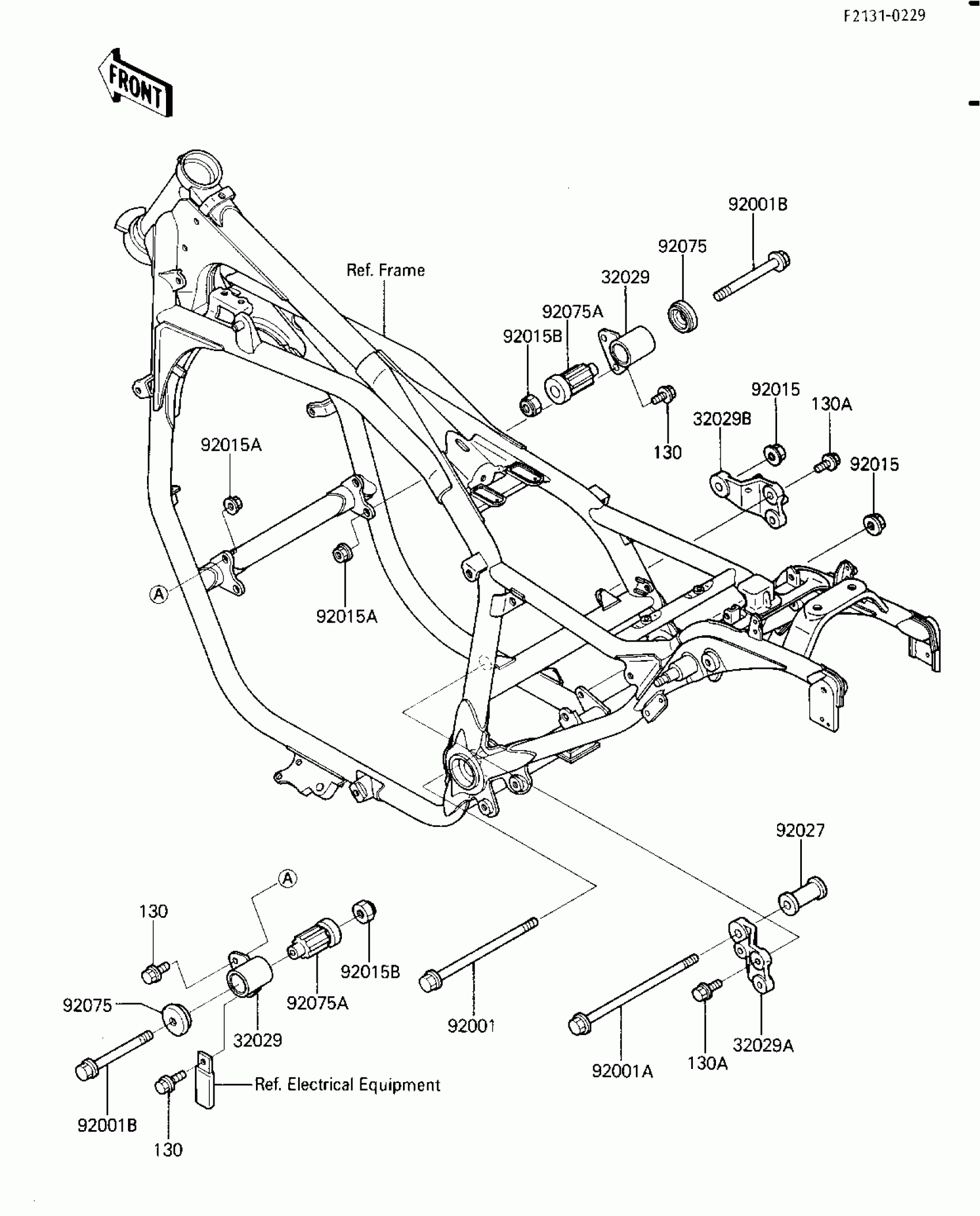

Kawasaki ZL600 Eliminator FRAME FITTINGS Diagram

Description

Price

32029

BRACKET-ENGINE,FR

32029-1464

$36.10

32029A

BRACKET-ENGINE,RR,UPP,LH

32029-1465

$46.72

32029B

BRACKET-ENGINE,RR,UPP,RH

32029-1466

$46.72

92001

BOLT,FLANGED,10X180

92001-1621

$22.61

92001A

BOLT,FLANGED,10X200,BLACK

92001-1677

Unavailable

92001B

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92015B

NUT,LOCK,10MM

92019-021

$4.59

92027

COLLAR,L=54

92027-275

$17.20

92075

DAMPER,ENGINE MOUNT

92075-1738

$18.93

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$28.62

130

BOLT-FLANGED,8X20

130J0820

Unavailable

130A

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable
