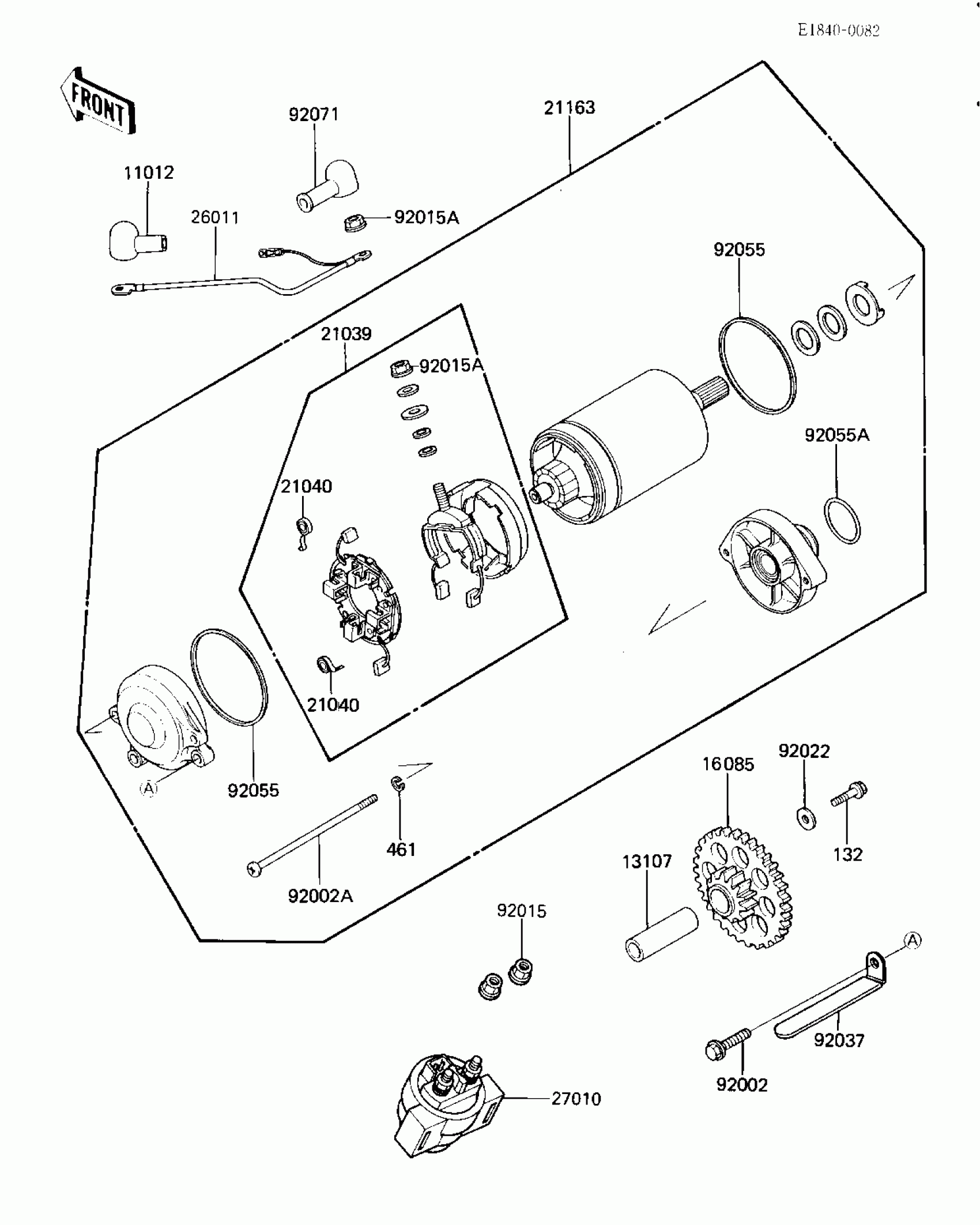

Find the part on the Starter Motor diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL1000 Eliminator Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

16085

GEAR,IDLE

16085-1104

1
Out of stock

21039

BRUSH,CARBON

21039-1053

1
Out of stock

21040

SPRING-BRUSH

21040-1003

1
Out of stock

21163

STARTER-ELECTRIC

21163-1078

1
Out of stock

26011

WIRE-LEAD,STARTER MOT

26011-1368

1
Out of stock

27010

SWITCH,STARTER

27010-1314

1
Out of stock

92002

BOLT,6X20

92001-1947

1
Out of stock

92002A

BOLT

92002-1560

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92037

CLAMP

92037-1679

1
Out of stock

92055

RING-O,64MM

92055-1086

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92071

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock
