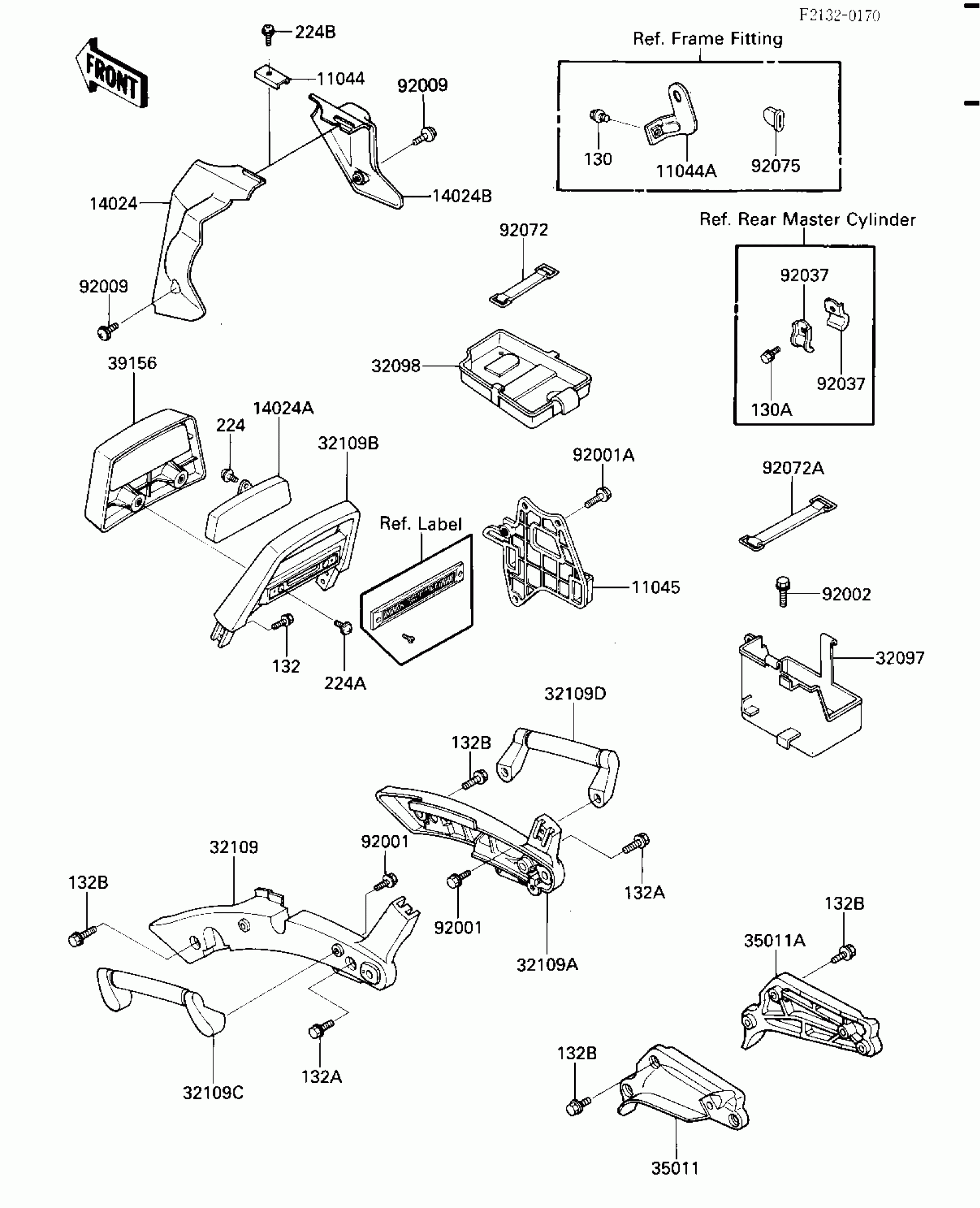

Kawasaki ZL1000 Eliminator BATTERY CASE/TOOL CASE Diagram

#

Description
Price

11044

BRACKET,GUSSET COVER

11044-1293

Unavailable

11044A

BRACKET

11044-1424

Unavailable

11045

BRACKET,ELECTRIC BASE

11045-1152

Unavailable

14024

COVER,FUEL TANK,LH

14024-1075

Unavailable

14024A

COVER

14024-1361

Unavailable

14024B

COVER,FUEL TANK,RH

14024-1364

Unavailable

32097

CASE-BATTERY

32097-1128

$36.25

32098

CASE-TOOL

32098-1073

Unavailable

32109

GRIP-FRAME,LWR,LH

32109-1143

$241.84

32109A

GRIP-FRAME,LWR,RH

32109-1144

$265.59

32109B

GRIP-FRAME,UPP

32109-1145

$298.82

32109C

GRIP-FRAME,LH

32109-1146

$149.37

32109D

GRIP-FRAME,RH

32109-1147

$104.81

35011

STAY,MUFFLER,LH

35011-1251

$284.38

35011A

STAY,MUFFLER,RH

35011-1252

$284.38

39156

PAD

39156-1066

$164.74

92001

BOLT,FLANGED,6X22

92001-1352

$3.29

92001A

BOLT,UPSET-WP,6X12

92002-1884

$3.68

92002

BOLT,6X14

92002-1351

$3.29

92009

SCREW,6X18

92009-1663

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1670

$5.39

92072

BAND,L=82

92072-053

$11.81

92072A

BAND,L=150

92072-1188

$10.92

92075

DAMPER

92075-1445

$6.46

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X12

130C0612

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL,8X20

132E0820

$3.57

132B

BOLT-FLANGED-SMALL,8X25

132E0825

$3.98

224

SCREW-PAN-WP-CROS

224B0410

$3.92

224A

SCREW-PAN-WP-CROS

224B0620

Unavailable

224B

SCREW-PAN-WP-CROS

224C0520

$3.92
