1987 Kawasaki ZL1000 Eliminator Chassis Electrical Equipment Diagram

← All diagrams

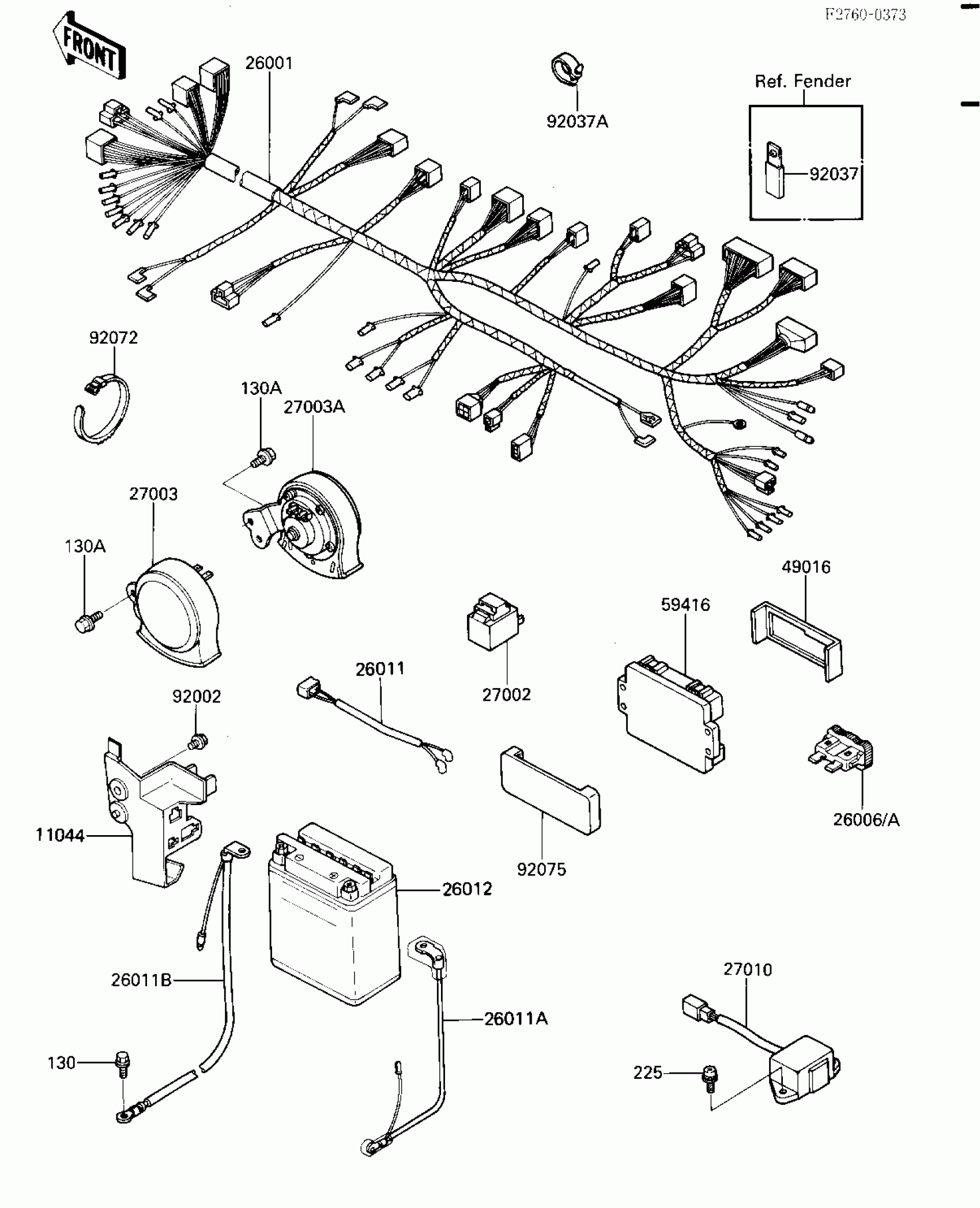

Find the part on the Chassis Electrical Equipment diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL1000 Eliminator Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,RELAY&COUPLER

11045-1385

1
Out of stock

26001

HARNESS,MAIN

26001-1790

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,BRAKE SWITC

26011-1313

1
Out of stock

26011A

WIRE-LEAD,BRAKE SWITC

26011-1313

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1367

1
Out of stock

26012

YUA BAT YB14L-A2

26012-1008

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

1
Out of stock

27003

HORN,LH

27003-1255

1
Out of stock

27003A

HORN,RH

27003-1256

1
Out of stock

27010

SWITCH,RESERVE LIGHTING

27010-1069

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1121

1
Out of stock

59416

CASE-ELECTRIC

59416-1062

1
Out of stock

92002

BOLT,6X14

92002-1351

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

130A

BOLT-FLANGED,6X10

130C0610

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
