1987 Kawasaki ZL1000 Eliminator Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

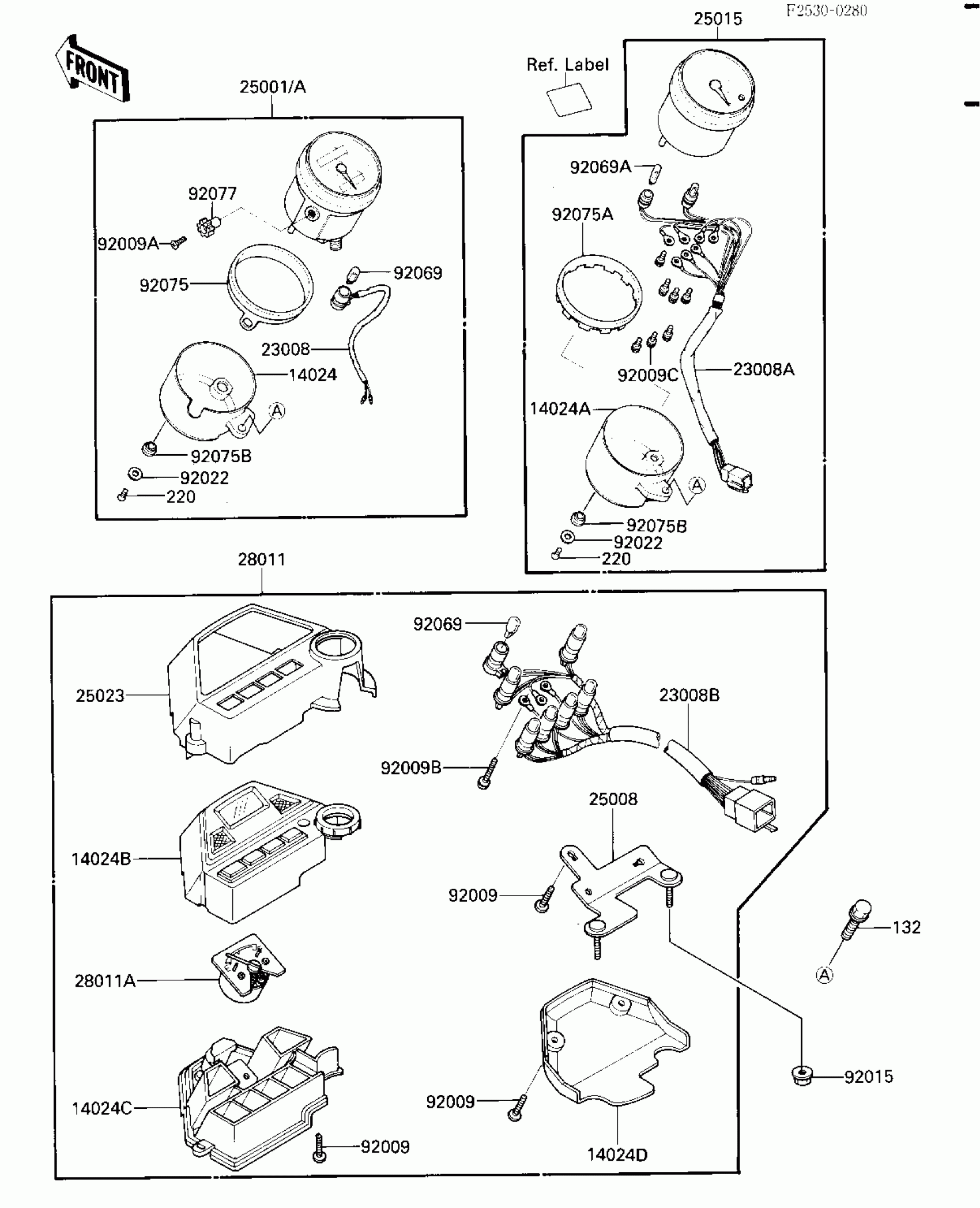

1987 Kawasaki ZL1000 Eliminator Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SPEEDOMETER

14024-1096

1
Out of stock

14024A

COVER,TACHOMETER

14024-1097

1
Out of stock

14024B

COVER,PILOT BOX,INNER

14024-1354

1
Out of stock

14024C

COVER,PILOT BOX,LWR

14024-1355

1
Out of stock

14024D

COVER,PILOT BOX

14024-1356

1
Out of stock

23008

SOCKET-ASSY,SPEEDOMET

23008-1279

1
Out of stock

23008A

SOCKET-ASSY,TACHOMETER

23008-1280

1
Out of stock

23008B

SOCKET-ASSY,PILOT BOX

23008-1321

1
Out of stock

25001

METER-ASSY,MPH

25001-1661

1
Out of stock

25001A

METER-ASSY,SPEED,KPH (Canada)

25001-1662

1
Out of stock

25008

BRACKET-METER,PILOT B

25008-1134

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1260

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1148

1
Out of stock

28011

METER,PILOT BOX

28011-1087

1
Out of stock

28011A

METER,FUEL

28011-1090

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,3X22

92009-1293

1
Out of stock

92009C

SCREW,3X12

92009-1406

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1328

1
Out of stock

92022

WASHER,4.5X10X0.8

92022-1822

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

DAMPER,SHOCK,METER

92075-1751

1
Out of stock

92075A

DAMPER,SHOCK,METER

92075-1752

1
Out of stock

92075B

DAMPER,METER FITTING

92075-1753

1
Out of stock

92077

KNOB,METER

92077-1059

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock
