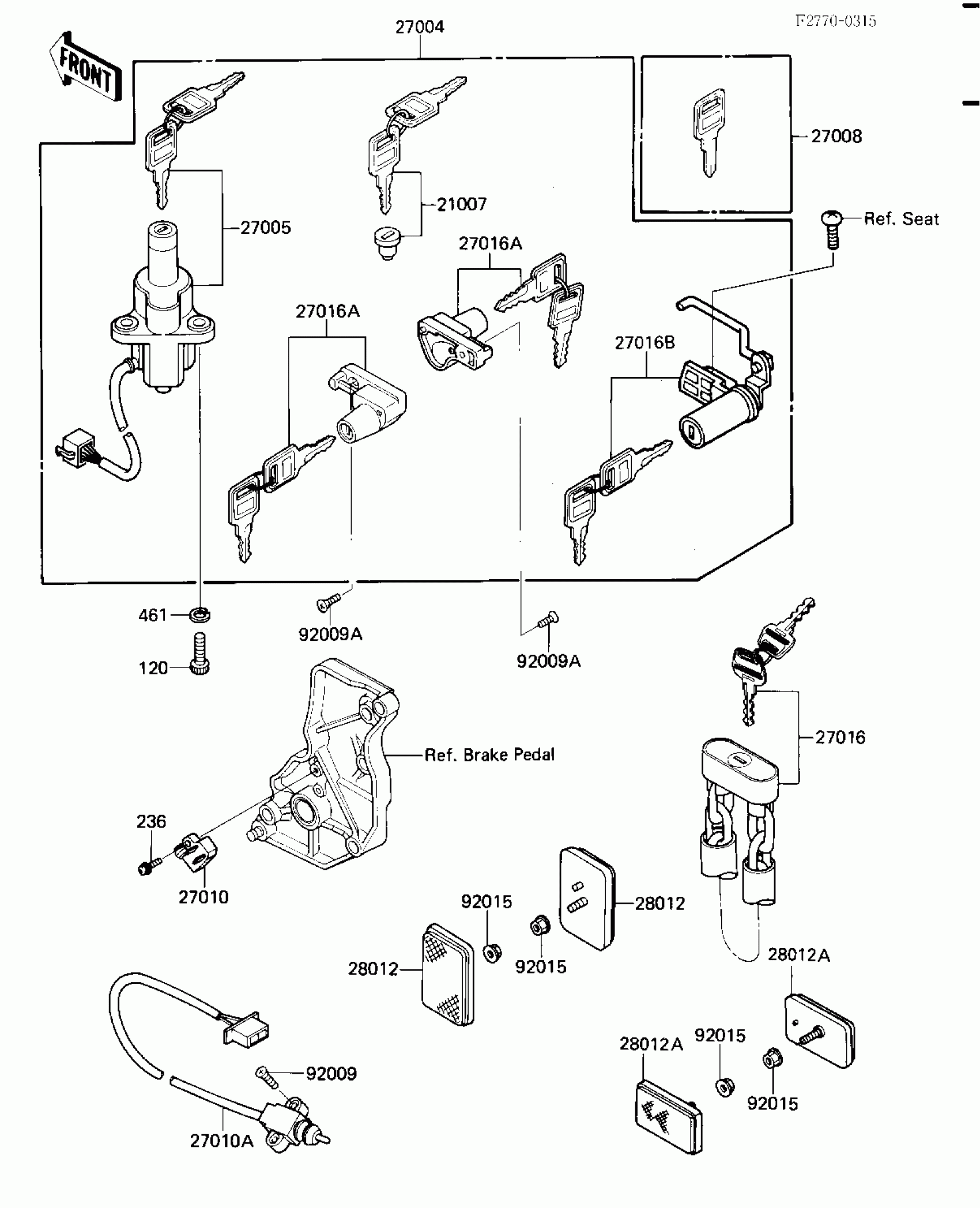

Kawasaki ZL1000 Eliminator IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

21007

ROTOR,LOCK,TANK CAP

21007-5005

$101.48

27004

SWITCH-ASSY

27004-5292

$427.29

27005

SWITCH-ASSY-IGNITION

27005-5045

$251.72

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

Unavailable

27010A

SWITCH,SIDE STAND

27010-1186

Unavailable

27016

LOCK-ASSY,WHEEL

27016-1051

$134.03

27016A

LOCK-ASSY,HELMET

27016-5060

$106.07

27016B

LOCK-ASSY,SEAT

27016-5117

Unavailable

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-1051

$24.63

92009

SCREW,5X20

92009-1359

$4.25

92009A

SCREW,5X12

92009-1401

$4.08

92015

NUT,FLANGED,5MM

92015-1259

$2.99

120

BOLT-SOCKET,8X22

120T0822

Unavailable

236

SCREW-PAN-WSP-CROS

236B0416

Unavailable

461

WASHER-SPRING

461L0800

Unavailable
