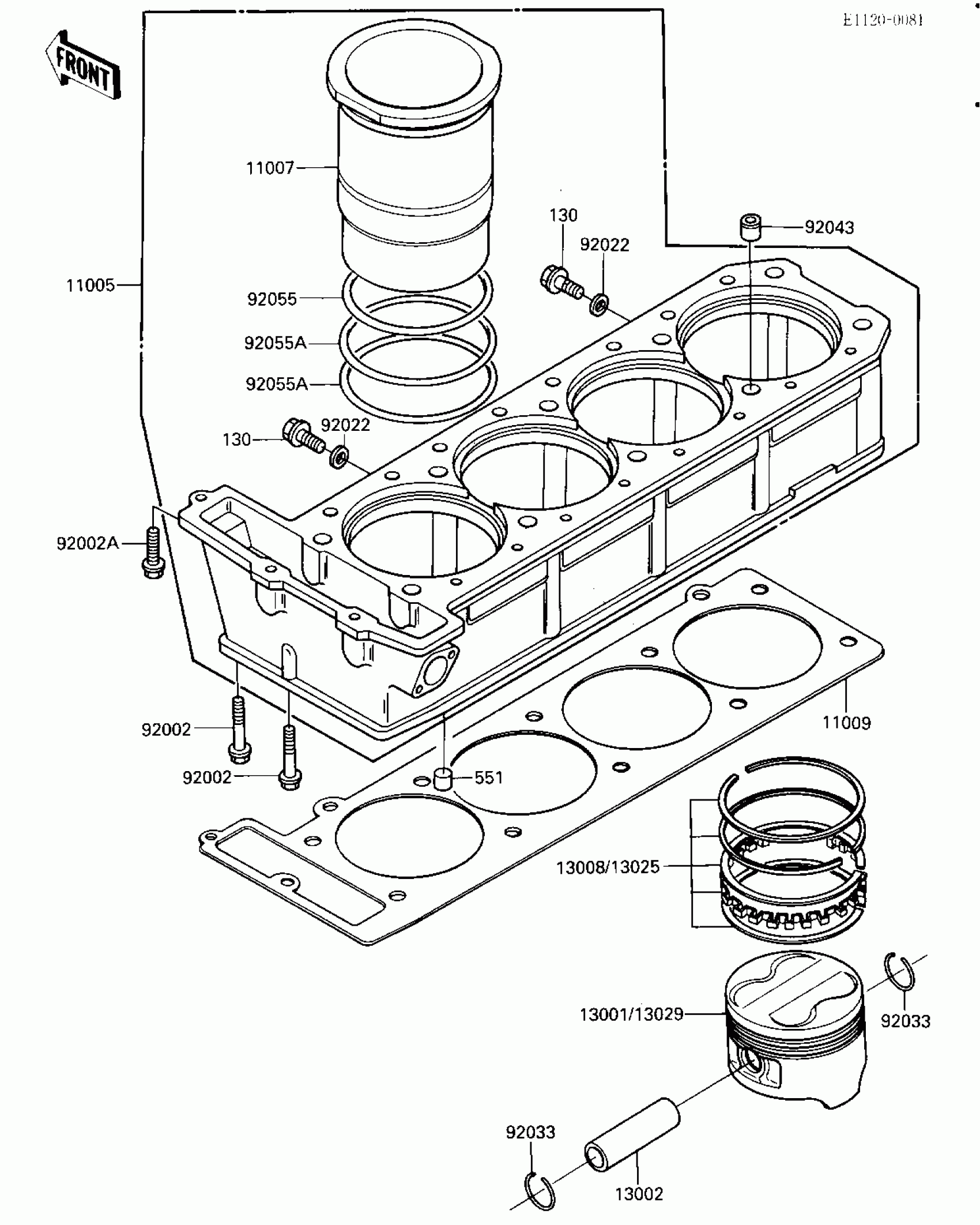

Kawasaki ZL1000 Eliminator CYLINDER/PISTON Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1430

$1,629.70

11007

LINER-CYLINDER

11007-1076

$148.51

11009

GASKET,CYLINDER BASE

11009-1505

Unavailable

13001

PISTON-ENGINE,STD

13001-1197

$119.82

13002

PIN-PISTON

13002-1058

$25.10

13008

RING-SET-PISTON,STD

13008-1066

$64.37

13025

RING-SET-PISTON L,O/S 0.50

13025-1065

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1132

$119.82

92002

BOLT,6X38

92001-1899

$3.92

92002A

BOLT,FLANGED,M6X30

92002-1138

$3.88

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92043

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,78MM

92055-1229

$19.68

92055A

RING-O,80.6X2.4

92055-1247

$12.47

130

BOLT-FLANGED,6X10

130C0610

Unavailable

551

PIN-DOWEL

551A1012

Unavailable
