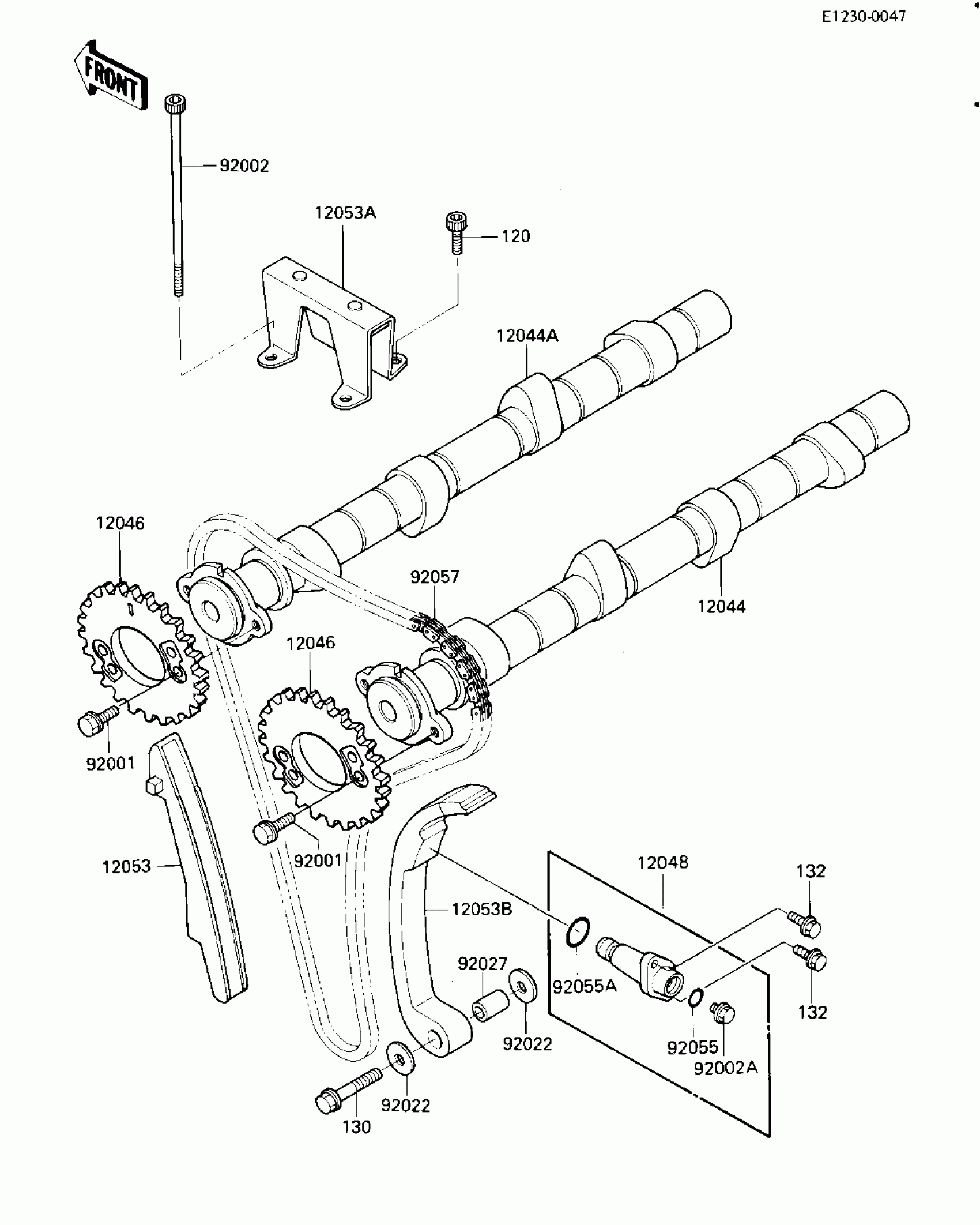

Kawasaki ZL1000 Eliminator CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1151

$453.62

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1152

$453.62

12046

SPROCKET,CAMSHAFT,34T

12046-1082

$77.88

12048

TENSIONER-ASSY,CAM CH

12048-1071

$184.46

12053

GUIDE-CHAIN,FR

12053-1114

$46.36

12053A

GUIDE-CHAIN,UPP

12053-1115

$41.11

12053B

GUIDE-CHAIN,RR

12053-1116

Unavailable

92001

BOLT,FLANGED,6X11

92003-208

$3.29

92002

BOLT,6X118

92001-1904

$9.56

92002A

BOLT,TENSIONER

92002-1302

$7.56

92022

WASHER,8.2X19X2

92022-1533

$4.85

92027

COLLAR,8.2X10.5X15.6

92027-1763

$5.76

92055

O RING,10MM

670D2010

$1.41

92055A

O RING,21MM

670D2021

$5.13

92057

CHAIN,CAMSHAFT

92057-1160

$132.28

120

BOLT-SOCKET,6X14

120P0614

Unavailable

130

BOLT-FLANGED,8X35

130G0835

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable
