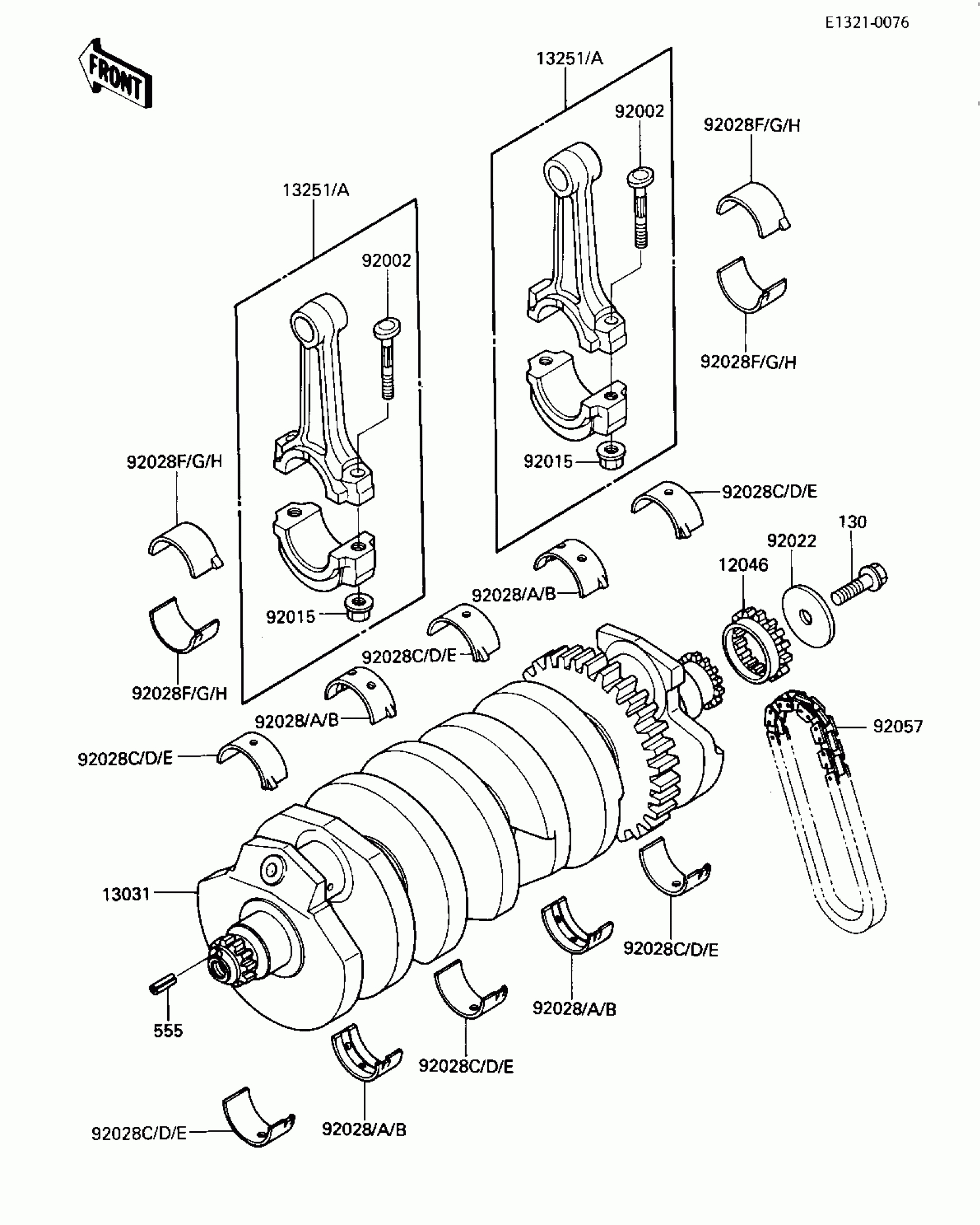

Find the part on the Crankshaft diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL1000 Eliminator Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12056

SPROCKET,21T

12046-1067

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1334

1
Out of stock

13251

ROD-ASSY-CONNECTING,L

13251-1075-LL

1
Out of stock

13251A

ROD-ASSY-CONNECTING,L

13251-1075-LL

1
Out of stock

92002

BOLT,CONNECTING ROD,9MM

92002-1678

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1
Out of stock

92022

WASHER,8.5X36X4

92022-1633

1
Out of stock

92028

BUSHING,CRANKSHAFT,BLUE

92028-1100

—
Out of stock

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1101

—
Out of stock

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1102

—
Out of stock

92028C

BUSHING,CRANKSHAFT,BLUE

92028-1272

—
Out of stock

92028D

BUSHING,CRANKSHAFT,BLACK

92028-1273

—
Out of stock

92028E

BUSHING,CRANKSHAFT,BROWN

92028-1274

—
Out of stock

92028

BUSHING,CONNECTING ROD BLUE

92028-1407

—
Out of stock

92028G

BUSHING,CONNECTING ROD BLACK

92028-1408

—
Out of stock

92028H

BUSHING,CONNECTING ROD BROWN

92028-1409

—
Out of stock

92057

CHAIN,GENERATOR

92057-1292

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

555

PIN-SPRING

555A0410

1
Out of stock
